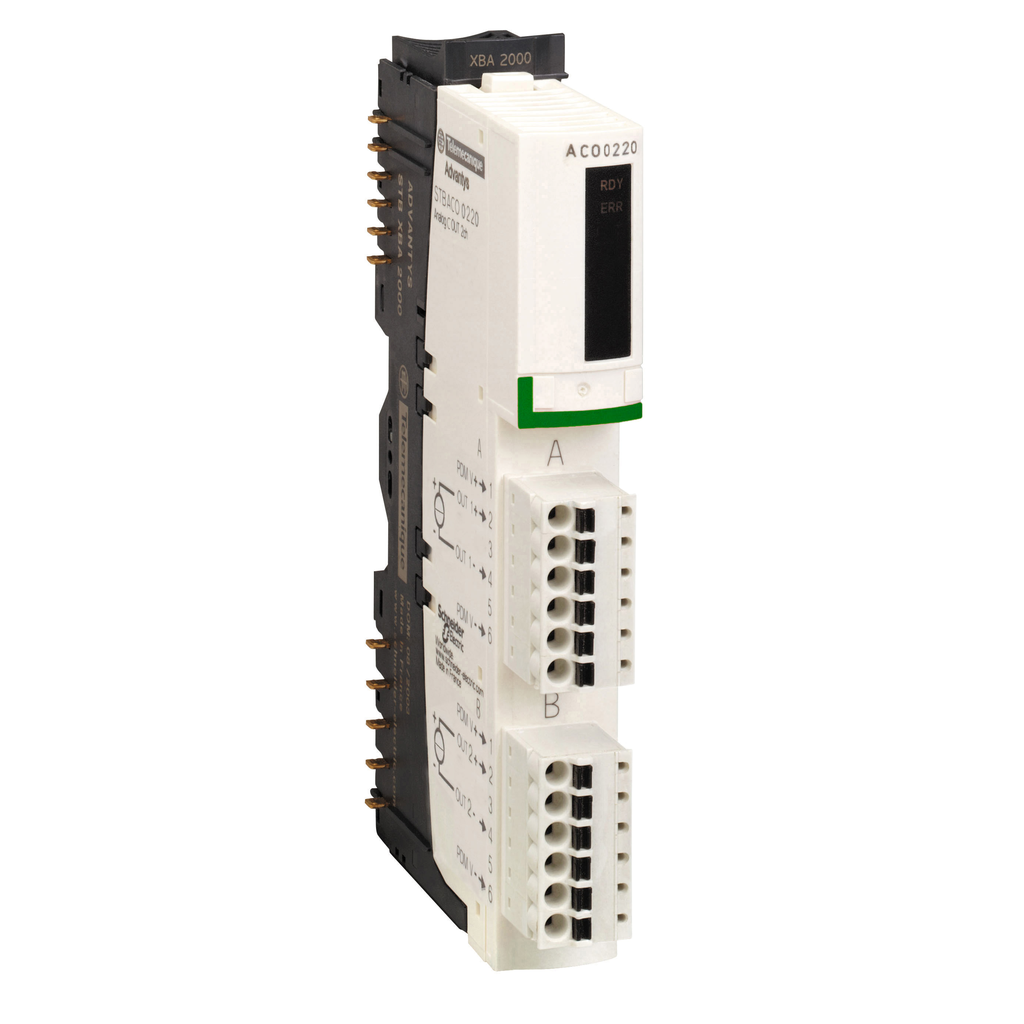

standard analog output kit, Modicon STB, 4 to 20mA, 2O, 15 bits with sign
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue output kit has 2 analogue outputs with 15bit + sign resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 210mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector, STBXBA2000 base and STBAVI1270 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon STB distributed I/O solution |
|---|---|
| Analogue Output Type | current 4...20 mA |
| Product Or Component Type | standard analog output kit |
| Analogue Output Number | 2 |
| Analogue Output Resolution | 15 bits + sign |
| Kit Composition |
|
| Warranty | 18 months |
| Insulation Between Channels And Logic Bus | 1500 V for 1 minute |
| Cold Swapping | yes |
| Height | 18.4 mm |
| Status Led |
|
| Hot Swapping Fallback | yes for standard NIMs |
| Differential Linearity | monotonic |
| Integral Linearity | +/- 0.5 %FS |
| Supply | power distribution module |
| Analogue Output Current | 0.02-0.02 A |
| Data Format |
|
| Current Consumption | 210 mA 5 V DC logic bus |
| Marking | CE |
| Fallback Status |
|
| Temperature Drift | +/-0.005 %/°C |
| Insulation Between Channels And Actuator Bus | 200 V |
| Absolute Accuracy Error | +/- 0.3 % of full scale 25 °C |
| Response Time | 4 ms |
| Update Time | 8 ms |
| Width | 128.3 mm |
| Overvoltage Category | II |
| Depth | 70 mm |
| Product Compatibility |
|
| Conversion Time | 4 ms for both channels |
| [Us] Rated Supply Voltage | 24 V DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511012EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Storage | -40...185 °F without |
| Ambient Air Temperature For Operation | 0-60 °C without) |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C without |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Ambient Air Temperature For Operation | 32...140 °F without |
