SSP04EMA24

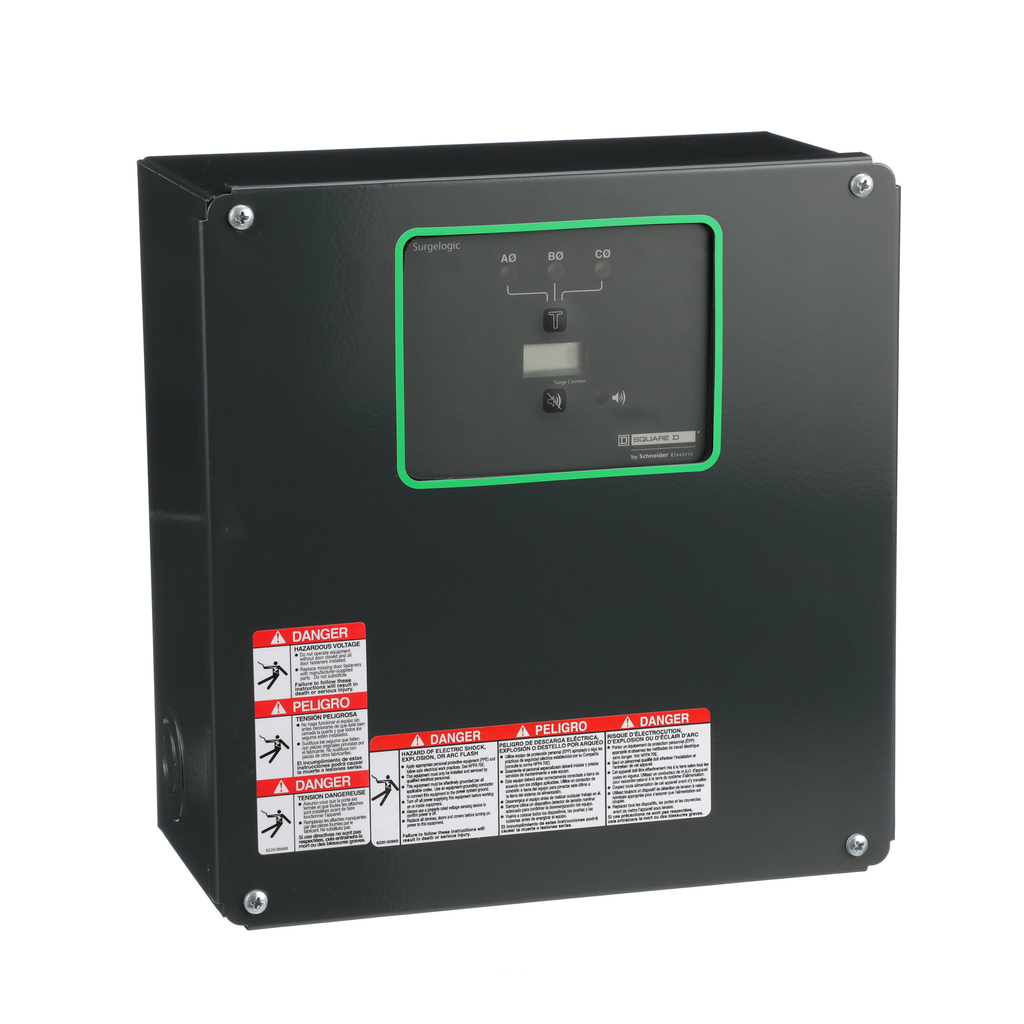

Surge protection device, Surgelogic, 240kA, 480Y/277 VAC, 3 phase, 4 wire, NEMA 1
Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Surgelogic |
|---|---|
| Product Or Component Type | surge protection device |
| Device Short Name | EMA |
| Height | 282 mm |
| Connections - Terminals | lugs AWG 10...AWG 2 copper 4 N.m |
| Cable Length | 483 mm |
| Provided Equipment |
|
| Surge Current | 240 kA |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |
| Local Signalling |
|
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 320 V |
| Width | 253.5 mm |
| Wiring Configuration | 4-wire |
| Depth | 135 mm |
| [Ue] Rated Operational Voltage | 480Y/277 V AC |
| Device Mounting | surface |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | 65-65 °C |
| Standards |
|
| Nema Degree Of Protection | NEMA 1 |
| Enclosure Material | Gray painted sheet steel |
