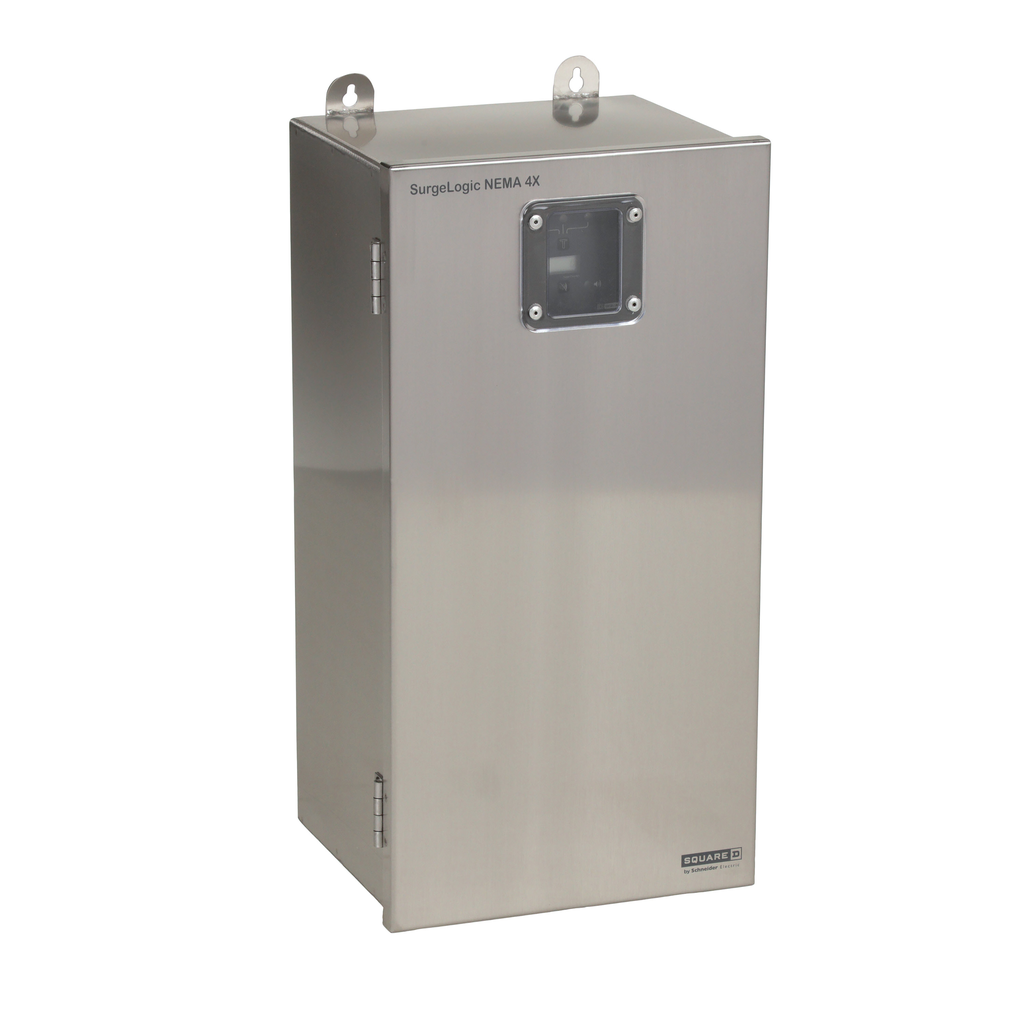

Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Surgelogic |
---|---|
Product Or Component Type | surge protection device |
Device Short Name | EMA |
Height | 575.8 mm |
Local Signalling |
|
Connections - Terminals | lugs AWG 10...AWG 2 copper 4 N.m |
Short-Circuit Protection | 200 kA |
Cable Length | 483 mm |
Provided Equipment |
|
[Uc] Maximum Continuous Operating Voltage | 320 V |
Surge Current | 120 kA |
Wiring Configuration | 4-wire |
Width | 297.2 mm |
Depth | 238.8 mm |
Nominal Discharge Current | 20 kA |
Phase | 3 phase |
[Ue] Rated Operational Voltage | 480Y/277 V AC |
Device Mounting | surface |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Eu Rohs Directive | Compliant |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Ambient Air Temperature For Operation | 65-65 °C |
Nema Degree Of Protection | NEMA 4X |
Enclosure Material | Stainless Steel |
Standards |
|
