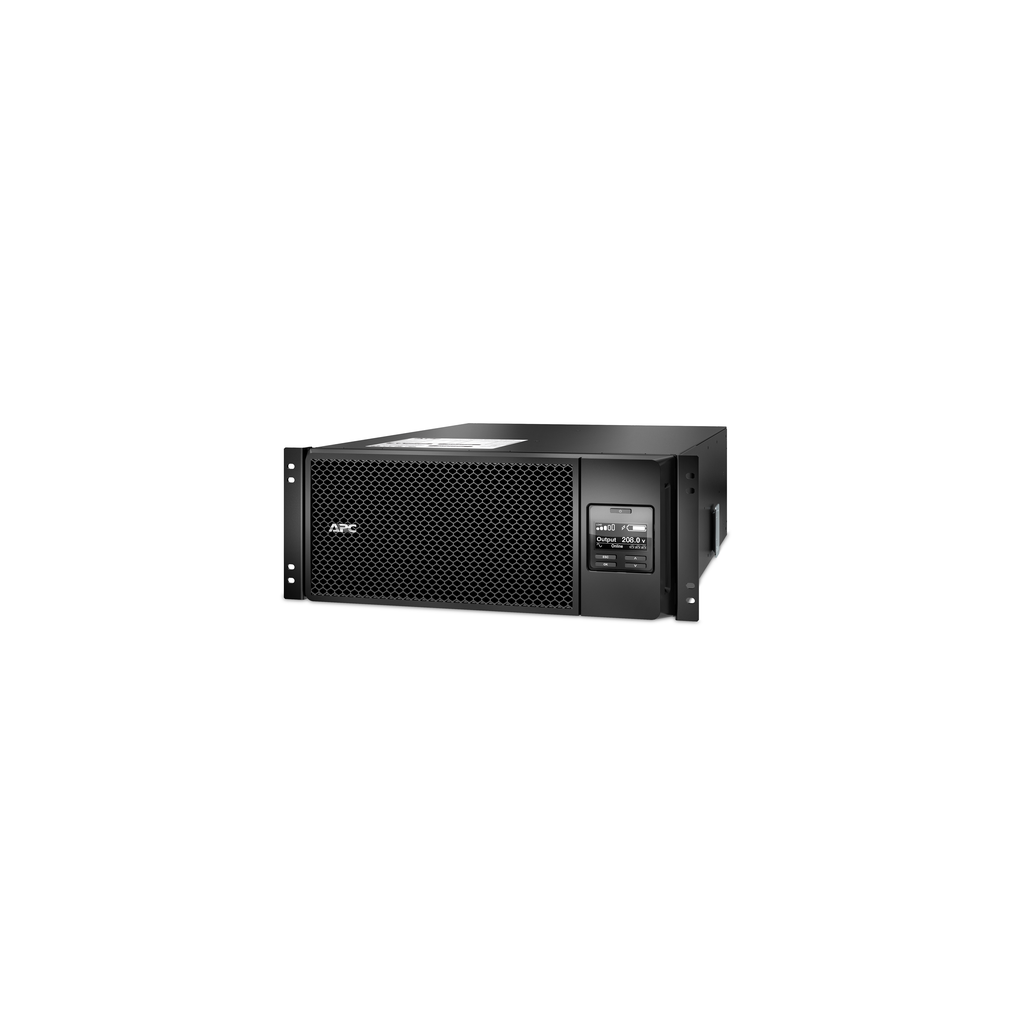

SRT6KRMXLT – APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 208V, 2x L6-20R 3x L6-30R NEMA outlets, Network Card SmartSlot, Extended runtime, W/ rail kit
SRT6KRMXLT
APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 208V, 2x L6-20R+3x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hard Wire 3-wire (2P+E) input, 2x NEMA L6-20R and 3x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This UPS includes a pre-installed Network Management Card (model AP9631) via the SmartSlot, to remotely monitor and control the UPS by connecting it directly to the network. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. Audible alarms also provide notification of changing utility power and UPS conditions. The SRT6KRMXLT converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. This 6000 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. A built-in energy meter measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Other Input Voltages 240 V
Rated Power In Va 6000 VA
Provided Equipment
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting hardware
  • Rack Mounting brackets
  • Rack Mounting support rails
  • Temperature Probe
  • USB cable
  • Warranty card
  • Web/SNMP Management Card
Main Input Voltage 208 V
Battery Type Lead-Acid battery
Number Of Rack Unit 4U
Kw Rating 6000 W
Other Output Voltages 240 V
Battery Life 3-5 year(s)
Battery Voltage 192V
Additional Specification high density
Alarm audible and visible alarms : prioritized by severity
Free Slots 1
Lead Time Usually in Stock
Bypass Type Internal Bypass (Automatic and Manual)
Harmonic Distortion Less than 2%
Crest Factor 3 : 1
Product Certifications
  • ENERGY STAR V2.0 (USA)
  • FCC part 15 class A
  • NOM
  • UL 1778
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
Storage Relative Humidity 0-95 % non-condensing
Ambient Air Temperature For Operation 0-40 °C
Storage Altitude 0-50000 ft
Ip Degree Of Protection IP20
Ambient Air Temperature For Storage -15-45 °C
Online Thermal Dissipation 1402 Btu/h
Relative Humidity 0-95 % non-condensing
Acoustic Level 55 dBA
Operating Altitude 0...10000 ft
Height 17.4 cm
Usb Compatible Yes
Net Weight 61.23 kg
Mounting Location front
Mounting Mode rack-mounted
Mounting Position horizontal
Color Black
Width 43.2 cm
Depth 71.9 cm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1512017_EN
Sustainable Offer Status Green Premium product
Take-Back Take-back program available
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Optimized Energy Efficiency Energy efficient product
Energy Star® ENERGY STAR UPS V2.0 (USA)
Circularity Profile ENVEOLI1512017_EN
Eu Rohs Directive Compliant
Input Frequency 40 - 70 Hz auto-sensing
Efficiency At Full Load 100...275 V adjustable (half load)
