SR3XT141JD - discrete IO extension module, Zelio Logic SR2 SR3, 14 IO, 12V DC

SR3XT141JD

discrete IO extension module, Zelio Logic SR2 SR3, 14 IO, 12V DC

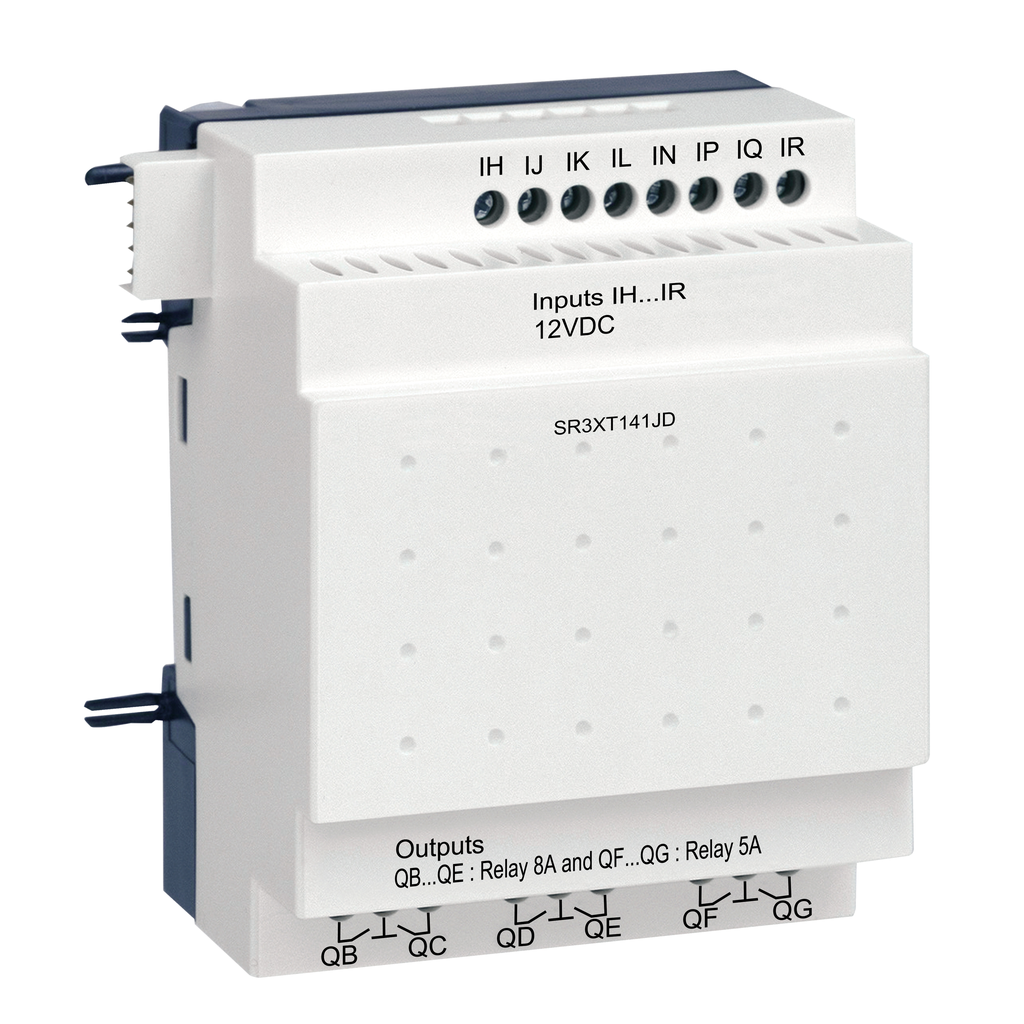

This Schneider Electric Zelio Logic SR3 Discrete I/O Extension Module Smart Relays uses a supply voltage of 12 volts direct current, has 14 inputs / outputs contact with screw-clamp terminals. This Discrete I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Zelio Logic
Product Or Component Type	discrete I/O extension module
Warranty	18 months
Contacts Type And Composition	NO relay output
Input Impedance	14 kOhm IB...IG used as discrete input circuit 2.7 kOhm I1...IA and IH...IR discrete input circuit
Discrete Input Type	resistive
Number Of Outputs	6 relay
Output Thermal Current	5 A for 2 outputs relay output 8 A for 4 outputs relay output
Discrete Input Voltage	12 V DC
Number Or Control Scheme Lines	120-120 ladder
Backup Time	10 years 25 °C
Clock Drift	12 min/year 0-55 °C
Discrete Input Current	4 mA
Current State 1 Guaranteed	>= 2 mA I1...IA and IH...IR discrete input circuit) >= 0.5 mA IB...IG used as discrete input circuit)
Response Time	10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Net Weight	0.22 kg
[Uimp] Rated Impulse Withstand Voltage	4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Voltage State 0 Guaranteed	<= 3 V IB...IG used as discrete input circuit <= 2.4 V I1...IA and IH...IR discrete input circuit
Output Voltage Limits	24...250 V AC relay output) 5...30 V DC relay output)
Electrical Durability	AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1 DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1
Connections - Terminals	screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
Voltage State 1 Guaranteed	>= 7 V IB...IG used as discrete input circuit >= 5.6 V I1...IA and IH...IR discrete input circuit
Input Compatibility	3-wire proximity sensors PNP discrete input
Current State 0 Guaranteed	<= 0.2 mA IB...IG used as discrete input circuit) <= 0.9 mA I1...IA and IH...IR discrete input circuit)
Supply Voltage Limits	10.4-14.4 V
Overvoltage Category	III EN/IEC 60664-1
Mechanical Durability	10000000 cycles relay output
Tightening Torque	0.5 N.m
Switching Capacity In Ma	>= 10 mA 12 V relay output)
Operating Rate In Hz	0.1 Hz at Ie)relay output 10 Hz no load)relay output
Counting Frequency	1 kHz discrete input
Discrete Input Number	8 EN/IEC 61131-2 type 1
Cycle Time	6-90 ms
Reverse Polarity Protection	with
[Us] Rated Supply Voltage	12 V DC
Checks	program memory on each power up
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2011013EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2011013EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	GL UL GOST C-tick CSA
Standards	EN/IEC 61000-4-6 level 3 EN/IEC 61000-4-3 EN/IEC 61000-4-2 level 3 EN/IEC 61000-4-4 level 3 EN/IEC 60068-2-27 Ea EN/IEC 61000-4-12 EN/IEC 60068-2-6 Fc EN/IEC 61000-4-11 EN/IEC 61000-4-5
Disturbance Radiated/Conducted	class B EN 55022-11 group 1
Ambient Air Temperature For Operation	-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental Characteristic	EMC directive EN/IEC 61000-6-2 EMC directive EN/IEC 61000-6-3 EMC directive EN/IEC 61000-6-4 EMC directive EN/IEC 61131-2 zone B low voltage directive EN/IEC 61131-2
Ip Degree Of Protection	IP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Pollution Degree	2 EN/IEC 61131-2
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % without condensation or dripping water
Maximum Altitude Transport	3048 m
Operating Altitude	6561.68 ft (2000 m)
