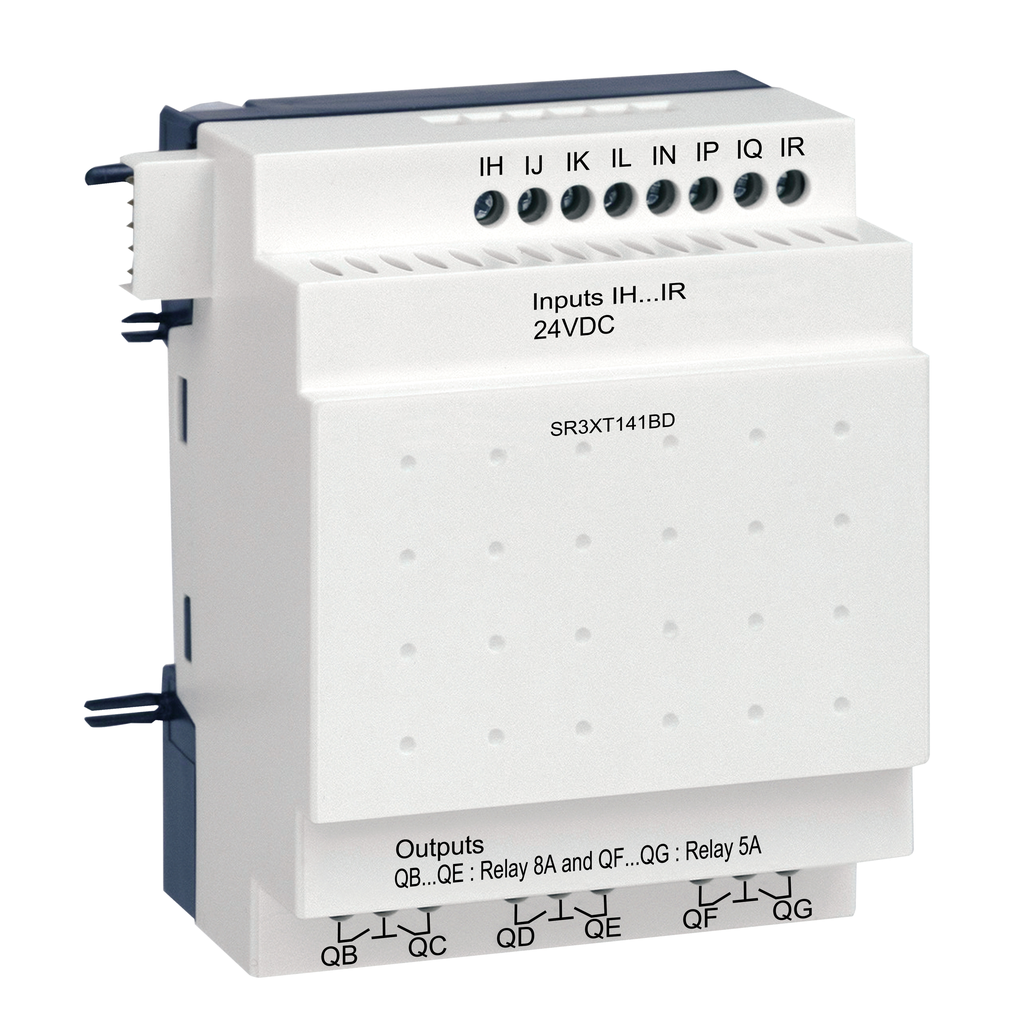

This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 24V direct current. It has 14 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Zelio Logic |
---|---|
Product Or Component Type | discrete I/O extension module |
Warranty | 18 months |
Contacts Type And Composition | NO relay output |
Input Impedance |
|
Discrete Input Type | resistive |
Number Of Outputs | 6 relay |
Output Thermal Current |
|
Discrete Input Voltage | 24 V DC |
Number Or Control Scheme Lines | 120-120 ladder |
Backup Time | 10 years 25 °C |
Clock Drift | 12 min/year 0-55 °C |
Discrete Input Current | 4 mA |
Current State 1 Guaranteed |
|
Response Time |
|
Net Weight | 0.22 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
Voltage State 0 Guaranteed |
|
Output Voltage Limits |
|
Electrical Durability |
|
Connections - Terminals |
|
Voltage State 1 Guaranteed |
|
Input Compatibility | 3-wire proximity sensors PNP discrete input |
Current State 0 Guaranteed |
|
Supply Voltage Limits | 19.2-30 V |
Overvoltage Category | III EN/IEC 60664-1 |
Mechanical Durability | 10000000 cycles relay output |
Tightening Torque | 0.5 N.m |
Switching Capacity In Ma | >= 10 mA 12 V relay output) |
Operating Rate In Hz |
|
Counting Frequency | 1 kHz discrete input |
Discrete Input Number | 8 EN/IEC 61131-2 type 1 |
Cycle Time | 6-90 ms |
Reverse Polarity Protection | with |
[Us] Rated Supply Voltage | 24 V DC |
Checks | program memory on each power up |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2011013EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2011013EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Standards |
|
Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
Ambient Air Temperature For Operation |
|
Environmental Characteristic |
|
Ip Degree Of Protection |
|
Pollution Degree | 2 EN/IEC 61131-2 |
Ambient Air Temperature For Storage | -40-70 °C |
Relative Humidity | 95-95 % without condensation or dripping water |
Maximum Altitude Transport | 3048 m |
Operating Altitude | 6561.68 ft (2000 m) |
