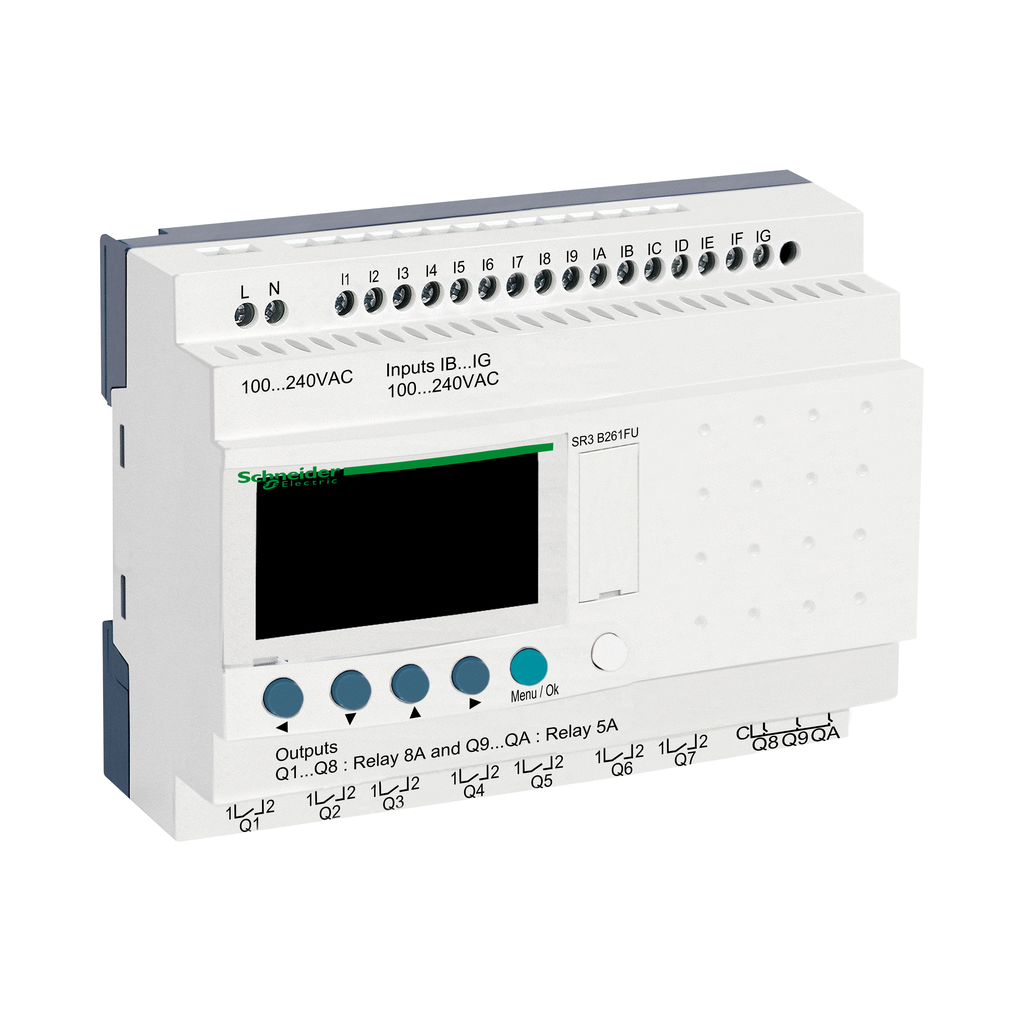

SR3B261FU – modular smart relay, Zelio Logic SR2 SR3, 26 IO, 100 to 240V AC, clock, display
SR3B261FU
modular smart relay, Zelio Logic SR2 SR3, 26 IO, 100 to 240V AC, clock, display

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Zelio Logic
Product Or Component Type modular smart relay
Warranty 18 months
Contacts Type And Composition NO relay output
Input Impedance 350 kOhm discrete input
Discrete Input Frequency
  • 47...53 Hz
  • 57...63 Hz
Number Of Outputs 10 relay
Output Thermal Current
  • 5 A for 2 outputs relay output
  • 8 A for 8 outputs relay output
Discrete Input Voltage 100...240 V AC
Number Or Control Scheme Lines
  • 0-500 FBD
  • 0-240 ladder
Backup Time 10 years 25 °C
Clock Drift
  • 12 min/year 0-55 °C
  • 6 s/month 25-25 °C
Power Consumption In Va
  • 12 VA without extension
  • 17 VA with extensions
Discrete Input Current 0.6 mA
Current State 1 Guaranteed >= 0.17 mA discrete input)
Response Time
  • 50 ms ladder from state 0 to state 1)discrete input
  • 50 ms ladder from state 1 to state 0)discrete input
  • 50...255 ms FBD from state 0 to state 1)discrete input
  • 50...255 ms FBD from state 1 to state 0)discrete input
  • 10 ms from state 0 to state 1)relay output
  • 5 ms from state 1 to state 0)relay output
Clock with
Local Display with
Net Weight 0.4 kg
[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Voltage State 0 Guaranteed <= 40 V discrete input
Output Voltage Limits
  • 5...30 V DC relay output)
  • 24...250 V AC
Electrical Durability
  • AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1
  • AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1
  • DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1
  • DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1
Connections - Terminals
  • screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid
  • screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid
  • screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
  • screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Voltage State 1 Guaranteed >= 79 V discrete input
Current State 0 Guaranteed <= 0.5 mA discrete input)
Supply Voltage Limits 85-264 V
Overvoltage Category III EN/IEC 60664-1
Mechanical Durability 10000000 cycles relay output
Maximum Supply Current
  • 100 mA 100 V without extension)
  • 50 mA 240 V without extension)
  • 60 mA 240 V with extensions)
  • 80 mA 100 V with extensions)
Tightening Torque 0.5 N.m
Isolation Voltage 1780 V
Switching Capacity In Ma >= 10 mA 12 V relay output)
Protection Type against inversion of terminals (control instructions not executed)
Operating Rate In Hz
  • 0.1 Hz at Ie)relay output
  • 10 Hz no load)relay output
Discrete Input Number 16
Cycle Time 6-90 ms
Supply Frequency 50/60 Hz
[Us] Rated Supply Voltage 100...240 V
Checks program memory on each power up
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP060406EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI0604006EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • GOST
  • GL
  • CSA
  • UL
  • C-tick
Standards
  • EN/IEC 61000-4-12
  • EN/IEC 60068-2-27 Ea
  • EN/IEC 60068-2-6 Fc
  • EN/IEC 61000-4-6 level 3
  • EN/IEC 61000-4-5
  • EN/IEC 61000-4-11
  • EN/IEC 61000-4-3
  • EN/IEC 61000-4-2 level 3
  • EN/IEC 61000-4-4 level 3
Disturbance Radiated/Conducted class B EN 55022-11 group 1
Ambient Air Temperature For Operation
  • -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
  • -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Immunity To Microbreaks 10 ms
Environmental Characteristic
  • EMC directive EN/IEC 61000-6-2
  • EMC directive EN/IEC 61000-6-3
  • EMC directive EN/IEC 61000-6-4
  • EMC directive EN/IEC 61131-2 zone B
  • low voltage directive EN/IEC 61131-2
Ip Degree Of Protection
  • IP20 IEC 60529 terminal block)
  • IP40 IEC 60529 front panel)
Pollution Degree 2 EN/IEC 61131-2
Ambient Air Temperature For Storage -40-70 °C
Relative Humidity 95-95 % without condensation or dripping water
Maximum Altitude Transport 3048 m
Operating Altitude 6561.68 ft (2000 m)
