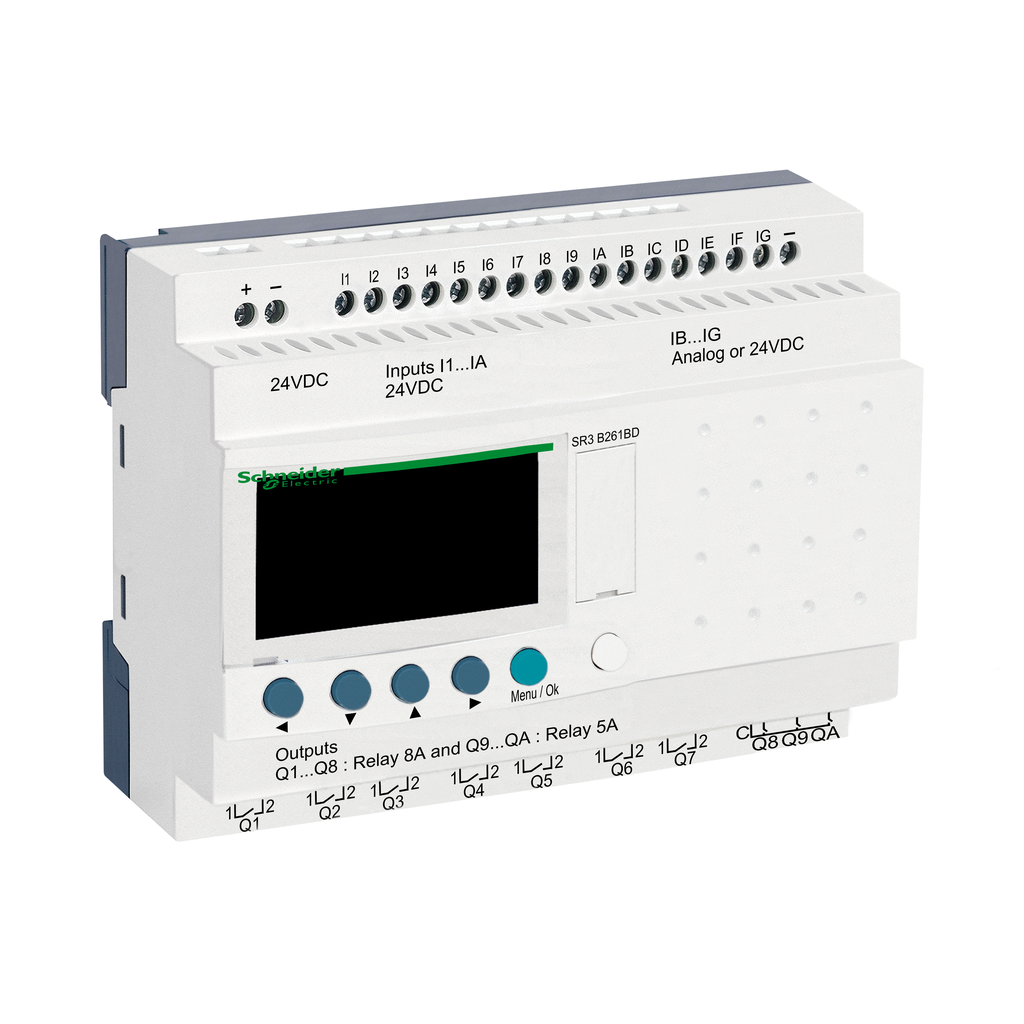

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Zelio Logic |
---|---|
Product Or Component Type | modular smart relay |
Warranty | 18 months |
Contacts Type And Composition | NO relay output |
Input Impedance |
|
Discrete Input Type | resistive |
Number Of Outputs | 10 relay |
Analogue Input Range |
|
Conversion Error |
|
Output Thermal Current |
|
Discrete Input Voltage | 24 V DC |
Number Or Control Scheme Lines |
|
Lsb Value | 39 mV analogue input circuit |
Backup Time | 10 years 25 °C |
Clock Drift |
|
Analogue Input Type | common mode |
Discrete Input Current | 4 mA |
Current State 1 Guaranteed |
|
Response Time |
|
Clock | with |
Power Dissipation In W |
|
Local Display | with |
Net Weight | 0.4 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
Voltage State 0 Guaranteed |
|
Output Voltage Limits |
|
Conversion Time | smart relay cycle time analogue input circuit |
Electrical Durability |
|
Connections - Terminals |
|
Analogue Input Number | 6 |
Voltage State 1 Guaranteed |
|
Input Compatibility | 3-wire proximity sensors PNP discrete input |
Current State 0 Guaranteed |
|
Supply Voltage Limits | 19.2-30 V |
Operating Distance | 10 m between stations, with screened cable (sensor not isolated) analogue input circuit |
Overvoltage Category | III EN/IEC 60664-1 |
Mechanical Durability | 10000000 cycles relay output |
Maximum Supply Current |
|
Tightening Torque | 0.5 N.m |
Temperature Probe Type |
|
Switching Capacity In Ma | >= 10 mA 12 V relay output) |
Analogue Input Resolution | 8 bits |
Operating Rate In Hz |
|
Counting Frequency | 1 kHz discrete input |
Discrete Input Number | 16 EN/IEC 61131-2 type 1 |
Cycle Time | 6-90 ms |
Reverse Polarity Protection | with |
Maximum Permissible Voltage | 30 V analogue input circuit |
Repeat Accuracy | +/- 2 % 55 °C analogue input circuit |
[Us] Rated Supply Voltage | 24 V |
Checks | program memory on each power up |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP060406EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0604006EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Standards |
|
Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
Ambient Air Temperature For Operation |
|
Immunity To Microbreaks | 1 ms |
Environmental Characteristic |
|
Ip Degree Of Protection |
|
Pollution Degree | 2 EN/IEC 61131-2 |
Ambient Air Temperature For Storage | -40-70 °C |
Relative Humidity | 95-95 % without condensation or dripping water |
Maximum Altitude Transport | 3048 m |
Operating Altitude | 6561.68 ft (2000 m) |
