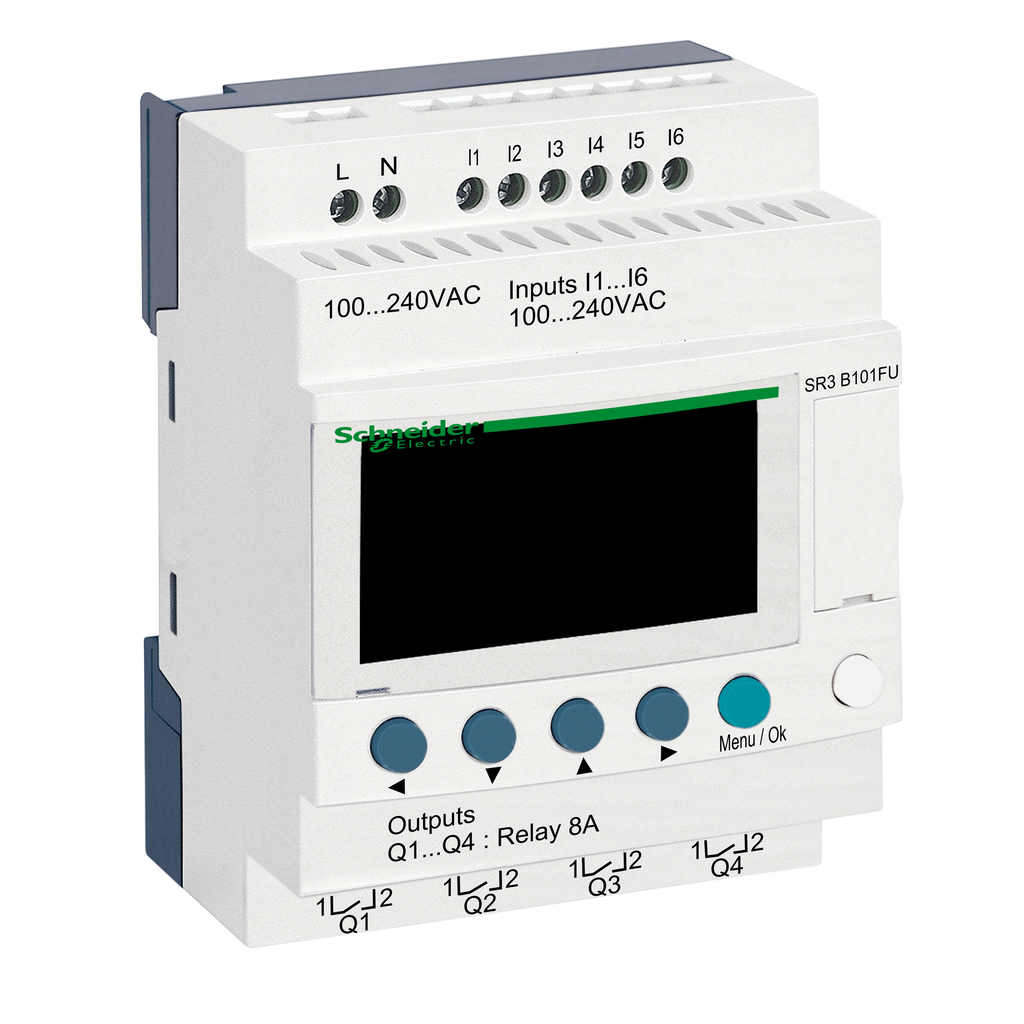

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 10 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Zelio Logic |
---|---|
Product Or Component Type | modular smart relay |
Warranty | 18 months |
Contacts Type And Composition | NO relay output |
Input Impedance | 350 kOhm discrete input |
Discrete Input Frequency |
|
Number Of Outputs | 4 relay |
Output Thermal Current | 8 A for all 4 outputs relay output |
Discrete Input Voltage | 100...240 V AC |
Number Or Control Scheme Lines |
|
Backup Time | 10 years 25 °C |
Clock Drift |
|
Power Consumption In Va |
|
Discrete Input Current | 0.6 mA |
Current State 1 Guaranteed | >= 0.17 mA discrete input) |
Response Time |
|
Clock | with |
Local Display | with |
Net Weight | 0.25 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
Voltage State 0 Guaranteed | <= 40 V discrete input |
Output Voltage Limits |
|
Electrical Durability |
|
Connections - Terminals |
|
Voltage State 1 Guaranteed | >= 79 V discrete input |
Current State 0 Guaranteed | <= 0.5 mA discrete input) |
Supply Voltage Limits | 85-264 V |
Overvoltage Category | III EN/IEC 60664-1 |
Mechanical Durability | 10000000 cycles relay output |
Maximum Supply Current |
|
Tightening Torque | 0.5 N.m |
Isolation Voltage | 1780 V |
Switching Capacity In Ma | >= 10 mA 12 V relay output) |
Protection Type | against inversion of terminals (control instructions not executed) |
Operating Rate In Hz |
|
Discrete Input Number | 6 |
Cycle Time | 6-90 ms |
Supply Frequency | 50/60 Hz |
[Us] Rated Supply Voltage | 100...240 V |
Checks | program memory on each power up |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP060406EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0604006EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Standards |
|
Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
Ambient Air Temperature For Operation |
|
Immunity To Microbreaks | 10 ms |
Environmental Characteristic |
|
Ip Degree Of Protection |
|
Pollution Degree | 2 EN/IEC 61131-2 |
Ambient Air Temperature For Storage | -40-70 °C |
Relative Humidity | 95-95 % without condensation or dripping water |
Maximum Altitude Transport | 3048 m |
Operating Altitude | 6561.68 ft (2000 m) |
