SR2A201BD - compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display

SR2A201BD

compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display

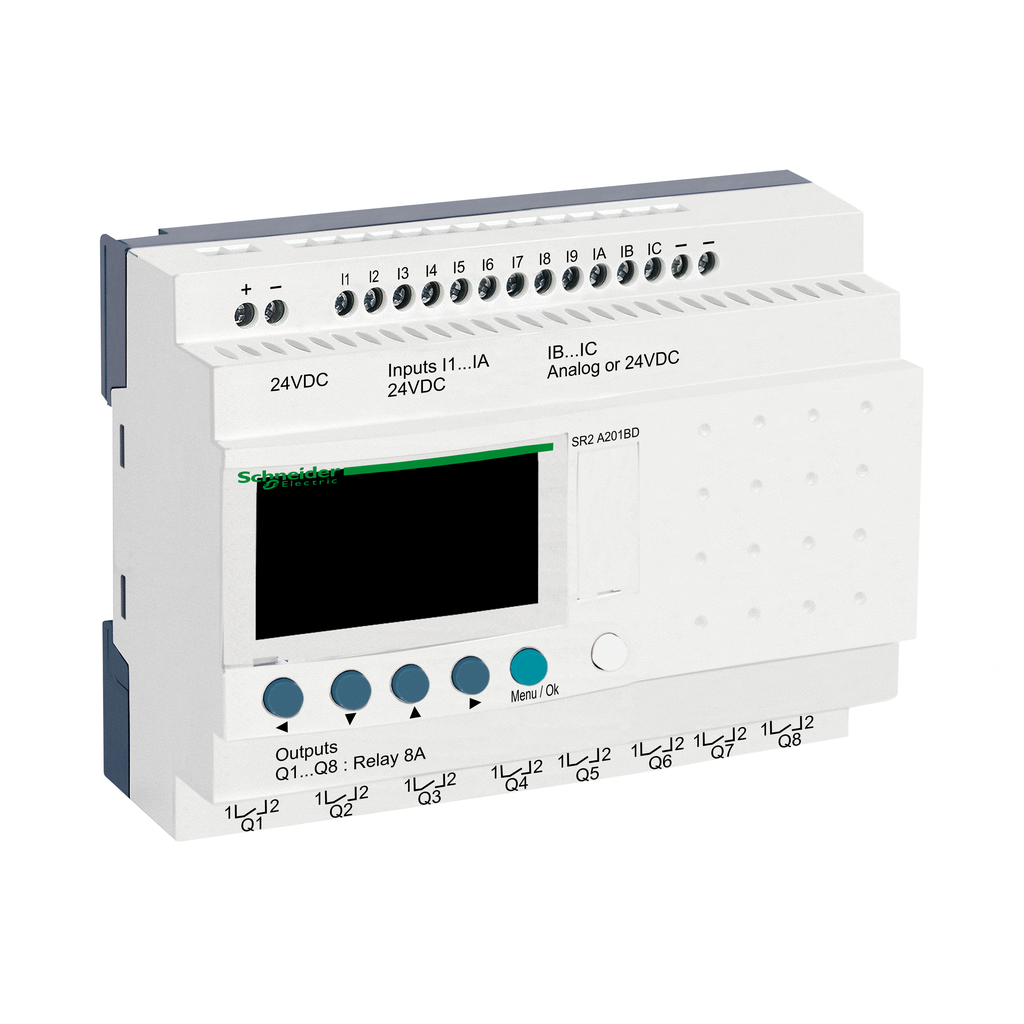

This Schneider Electric Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 24 volts direct current, has 20 inputs / outputs with screw-clamp terminals and has an integrated LCD display. This compact programmable relay is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. This product meets EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-12, EN/IEC 61000-4-11, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-27 Ea and EN/IEC 61000-4-4 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Zelio Logic
Product Or Component Type	compact smart relay
Warranty	18 months
Contacts Type And Composition	NO relay output
Input Impedance	12 kOhm IB...IG used as analogue input circuit 12 kOhm IB...IG used as discrete input circuit 7.4 kOhm I1...IA and IH...IR discrete input circuit
Discrete Input Type	resistive
Number Of Outputs	8 relay
Analogue Input Range	0...24 V 0...10 V
Conversion Error	+/- 5 % 25 °C analogue input circuit +/- 6.2 % 55 °C analogue input circuit
Output Thermal Current	8 A for all 8 outputs relay output
Discrete Input Voltage	24 V DC
Number Or Control Scheme Lines	0-240 ladder
Lsb Value	39 mV analogue input circuit
Backup Time	10 years 25 °C
Clock Drift	12 min/year 0-55 °C 6 s/month 25-25 °C
Analogue Input Type	common mode
Discrete Input Current	4 mA
Current State 1 Guaranteed	>= 1.2 mA IB...IG used as discrete input circuit) >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Response Time	10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Clock	without
Power Dissipation In W	6 W without extension
Local Display	with
Net Weight	0.38 kg
[Uimp] Rated Impulse Withstand Voltage	4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Voltage State 0 Guaranteed	<= 5 V I1...IA and IH...IR discrete input circuit <= 5 V IB...IG used as discrete input circuit
Output Voltage Limits	24...250 V AC relay output) 5...30 V DC relay output)
Conversion Time	smart relay cycle time analogue input circuit
Electrical Durability	AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1
Connections - Terminals	screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Analogue Input Number	2
Voltage State 1 Guaranteed	>= 15 V I1...IA and IH...IR discrete input circuit >= 15 V IB...IG used as discrete input circuit
Input Compatibility	3-wire proximity sensors PNP discrete input
Current State 0 Guaranteed	<= 0.5 mA IB...IG used as discrete input circuit)
Supply Voltage Limits	19.2-30 V
Operating Distance	10 m between stations, with screened cable (sensor not isolated) analogue input circuit
Overvoltage Category	III EN/IEC 60664-1
Mechanical Durability	10000000 cycles relay output
Maximum Supply Current	100 mA without extension)
Tightening Torque	0.5 N.m
Switching Capacity In Ma	>= 10 mA 12 V relay output)
Analogue Input Resolution	8 bits
Operating Rate In Hz	0.1 Hz at Ie)relay output 10 Hz no load)relay output
Counting Frequency	1 kHz discrete input
Discrete Input Number	12 EN/IEC 61131-2 type 1
Cycle Time	6-90 ms
Reverse Polarity Protection	with
Maximum Permissible Voltage	30 V analogue input circuit
Repeat Accuracy	+/- 2 % 55 °C analogue input circuit
[Us] Rated Supply Voltage	24 V DC
Checks	program memory on each power up
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2011013EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2011013EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	GOST CSA GL UL C-tick
Standards	EN/IEC 61000-4-5 EN/IEC 61000-4-6 level 3 EN/IEC 60068-2-6 Fc EN/IEC 61000-4-12 EN/IEC 61000-4-11 EN/IEC 61000-4-3 EN/IEC 61000-4-2 level 3 EN/IEC 60068-2-27 Ea EN/IEC 61000-4-4 level 3
Disturbance Radiated/Conducted	class B EN 55022-11 group 1
Ambient Air Temperature For Operation	-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Immunity To Microbreaks	1 ms
Environmental Characteristic	EMC directive EN/IEC 61000-6-2 EMC directive EN/IEC 61000-6-3 EMC directive EN/IEC 61000-6-4 EMC directive EN/IEC 61131-2 zone B low voltage directive EN/IEC 61131-2
Ip Degree Of Protection	IP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Pollution Degree	2 EN/IEC 61131-2
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % without condensation or dripping water
Maximum Altitude Transport	3048 m
Operating Altitude	6561.68 ft (2000 m)
