SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces

SO2040M200S

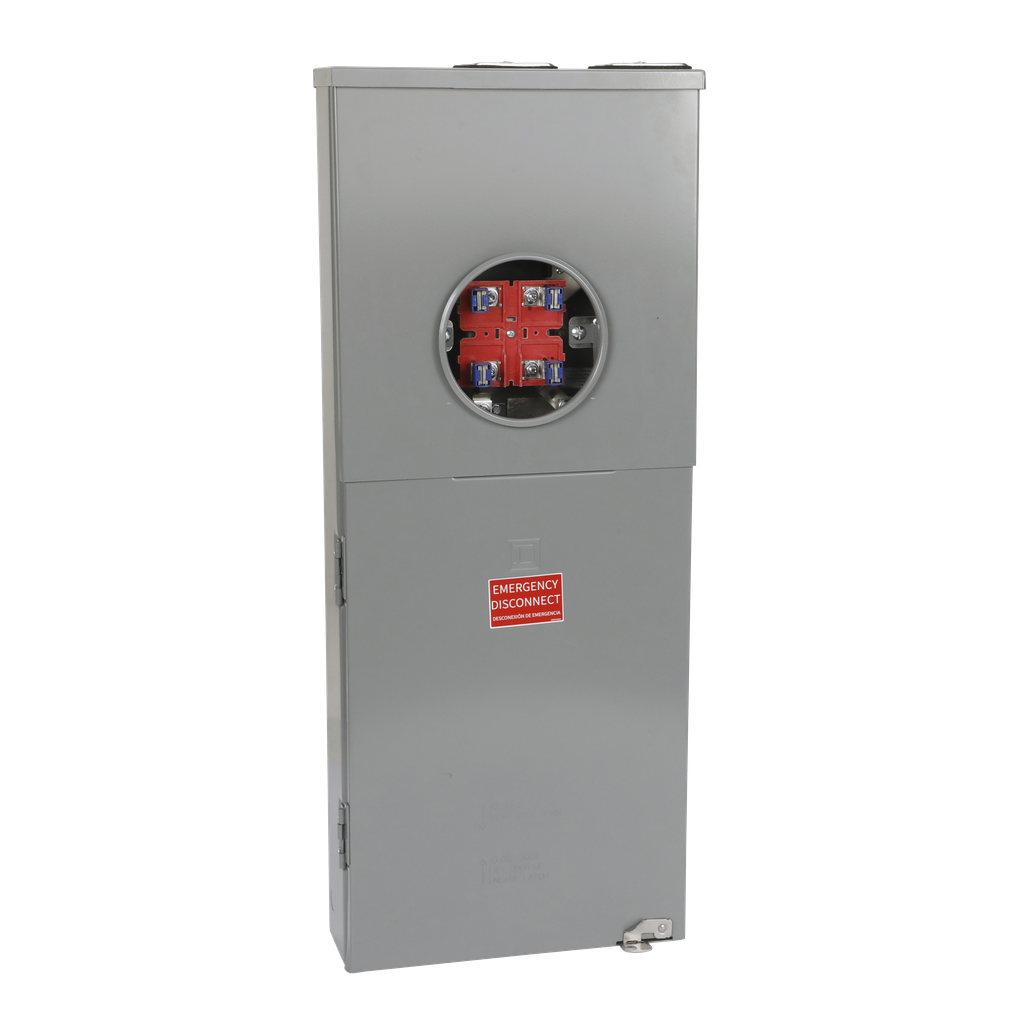

Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service. The service disconnect is a QOM2200VH with a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 20 spaces which will accept up to 20 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 40.93 inches tall, 18.35 inches wide and 5.32 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Homeline
Product Or Component Type	All-In-One
Hub Type	A
Meter Socket Type	ringed
Warranty	18 months
Connections - Terminals	lugs
Height	40.93 in
Tightening Torque	main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper branch lugs 50 lb.in, AWG 14...AWG 1/0, copper branch lugs 50 lb.in, AWG 12...AWG 1/0, aluminium branch lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper branch lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 40 lb.in, AWG 8, aluminium/copper branch lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper branch lugs 35 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Branch Circuit Breaker Rated Current	200 A
Bypass Type	no bypass
Service Feed Location	OH
Electrical Connection	lugs line side lugs service ground
Number Of Circuits	40
Number Of Spaces	20
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	20
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Width	18.35 in
Awg Gauge	AWG 6...350 kcmil aluminium)line side AWG 6...350 kcmil copper)line side AWG 8...AWG 2/0 aluminium)service ground AWG 8...AWG 2/0 copper)service ground
Depth	5.32 in
Device Composition	service disconnect (factory installed)
Device Mounting	surface
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Product Certifications	UL Listed
Nema Degree Of Protection	NEMA 3R
