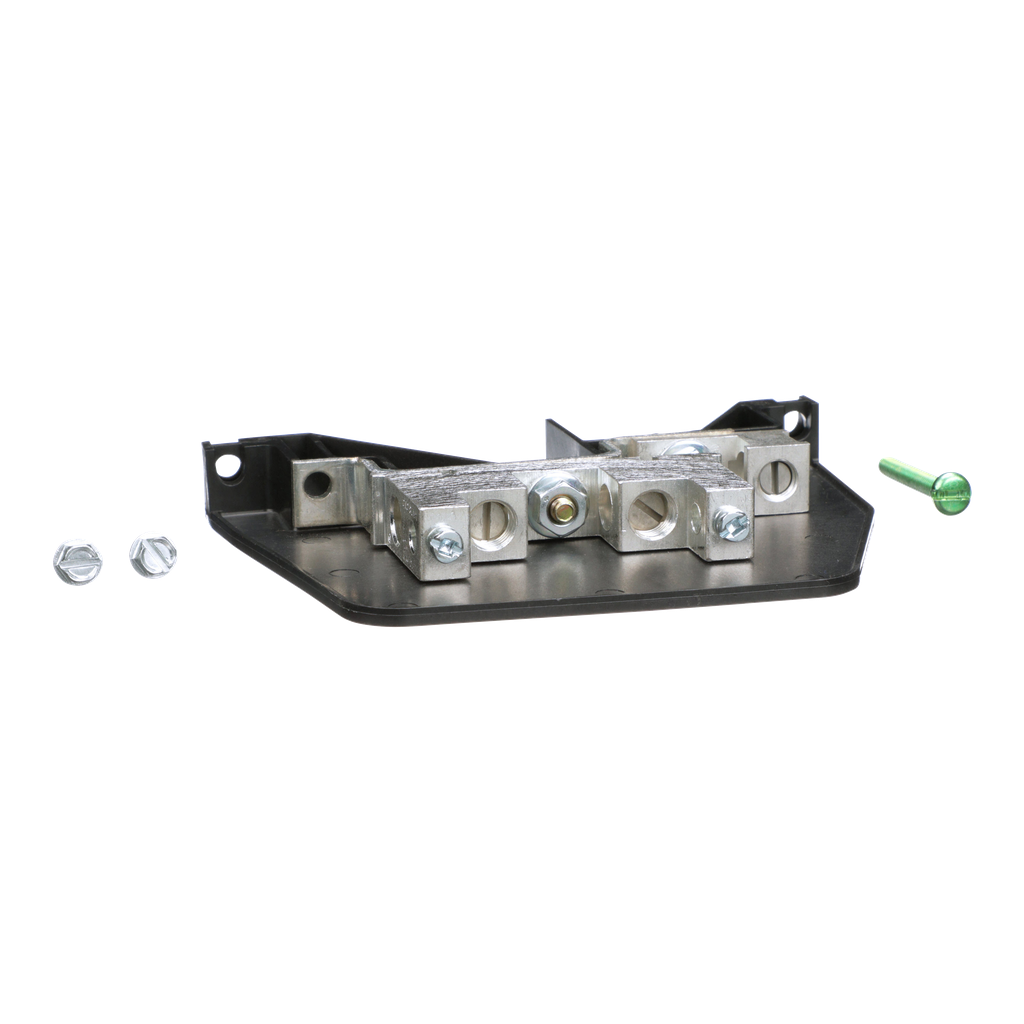

SN0310C - Safety switch solid neutral assembly, Square D, copper, max 100A rated

SN0310C

Add to Quote Catalogue

Series Name	heavy duty
Range Of Product	Square D
Product Or Component Type	safety switch solid neutral assembly
Warranty	18 months
Tightening Torque	50 lb.in, AWG 3...AWG 1/0, copper 45 lb.in, AWG 6...AWG 4, copper 40 lb.in, AWG 8, copper 35 lb.in, AWG 14...AWG 10, copper
Line Rated Current	30 A 100 A
Awg Gauge	AWG 14...AWG 1/0 copper
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1304031
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
