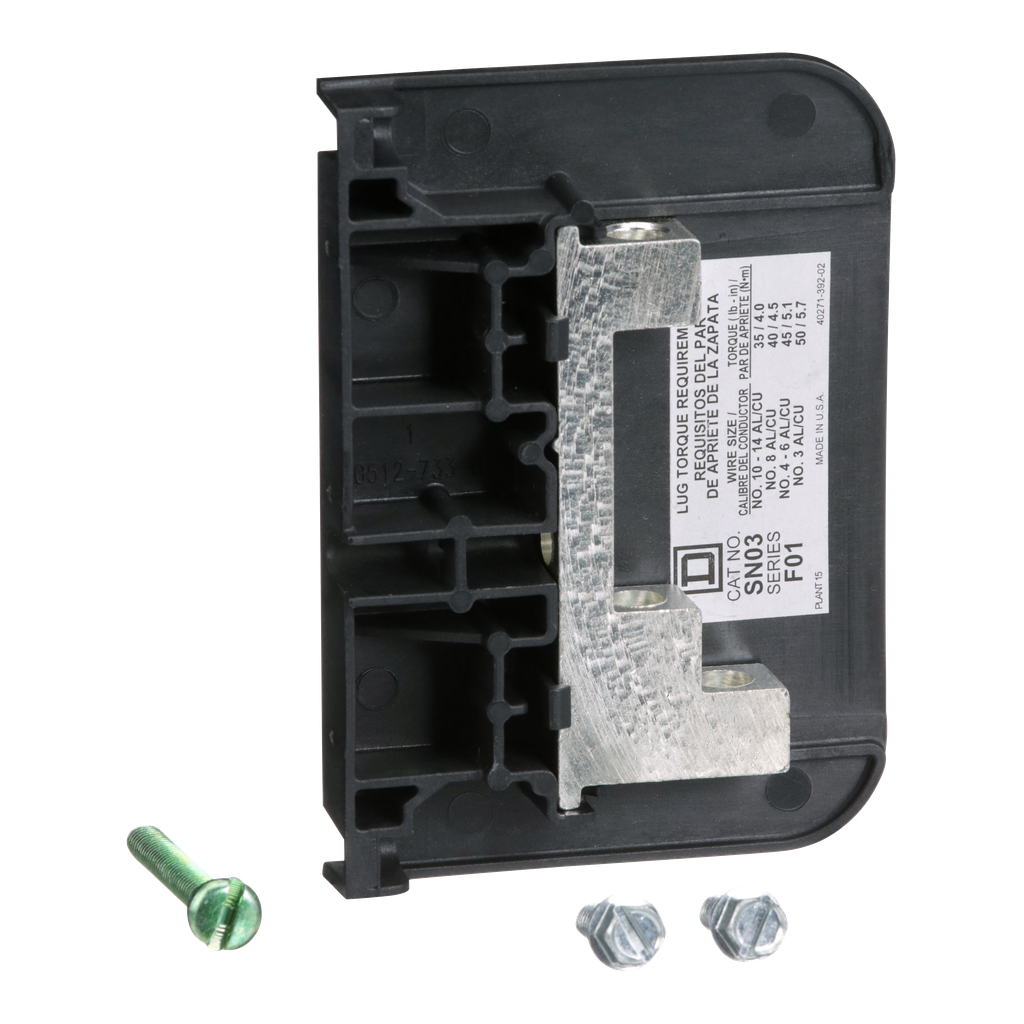

Solid neutral assembly, safety switch, series F5/F6 30A
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This solid neutral assembly is rated for 30A and 60A safety switches. This solid neutral assembly is insulated and groundable. It has one terminal in and one terminal out, with an additional grounding terminal. Each terminal accepts 14 AWG to 3 AWG. This accessory complies with UL and CSA standards
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | safety switch solid neutral assembly |
|---|---|
| Product Destination | safety switch |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
- Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
- F Series Safety Switches—Neutral Assembly Replacement Instructions - files (pdf)
- SN03, SN03C, CSN03, and CSN03C Neutral Assembly Installation Instructions - 40272-257-03 (pdf)
