SH30703P11A1000

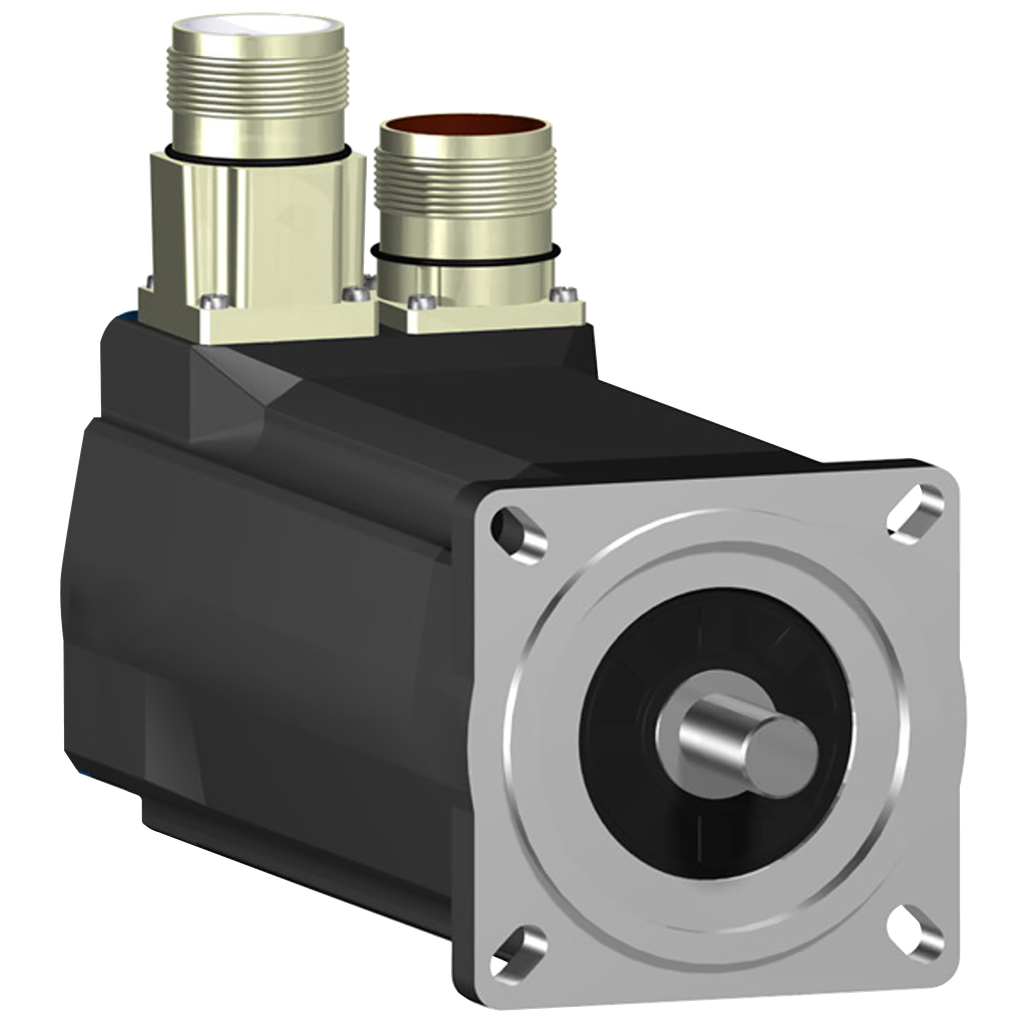

servo motor SH3 070 2,94Nm,key,single,nobrake,str.conn,IP54/IP65,8k RPM
Specifications
| Range Compatibility | PacDrive 3 |
|---|---|
| Product Or Component Type | servo motor |
| Device Short Name | SH3.....P |
| Warranty | 18 months |
| Circle Diameter Of The Mounting Holes | 82 mm |
| Peak Stall Torque | 11.3 N.m 115...480 V three phase |
| Number Of Mounting Holes | 4 |
| Continuous Power | 1330 W |
| Shaft Diameter | 14 mm |
| Key Width | 5 mm |
| Nominal Output Power |
|
| Maximum Mechanical Speed | 8000 rpm |
| Mounting Holes Diameter | 5.5 mm |
| Type Of Cooling | natural convection |
| Maximum Radial Force Fr |
|
| Encoder Type | absolute single turn SinCos Hiperface |
| Mounting Support | international standard flange |
| Rotor Inertia | 0.58 kg.cm² |
| Number Of Motor Poles | 3 |
| Back Emf Constant | 49 V/krpm 20 °C |
| Maximum Axial Force Fa | 80 N |
| Ip Degree Of Protection |
|
| Shaft End | parallel key |
| Centring Collar Depth | 2.5 mm |
| Nominal Speed |
|
| Electrical Connection | rotatable right angled connector |
| Holding Brake | without |
| Speed Feedback Resolution | 128 periods |
| Stator Resistance | 2.7 Ohm |
| Continuous Stall Current | 4.1 A |
| Nominal Torque |
|
| Shaft Length | 30 mm |
| Phase | three phase |
| Length | 220 mm |
| Net Weight | 3.6 kg |
| Maximum Current Irms | 17 A |
| Torque Constant | 0.72 N.m/A 120 °C |
| Centring Collar Diameter | 60 mm |
| Continuous Stall Torque | 2.94 N.m 115...480 V three phase |
| Stator Inductance | 20.3 mH |
| Motor Flange Size | 70 mm |
| [Us] Rated Supply Voltage | 115...480 V |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111049EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
