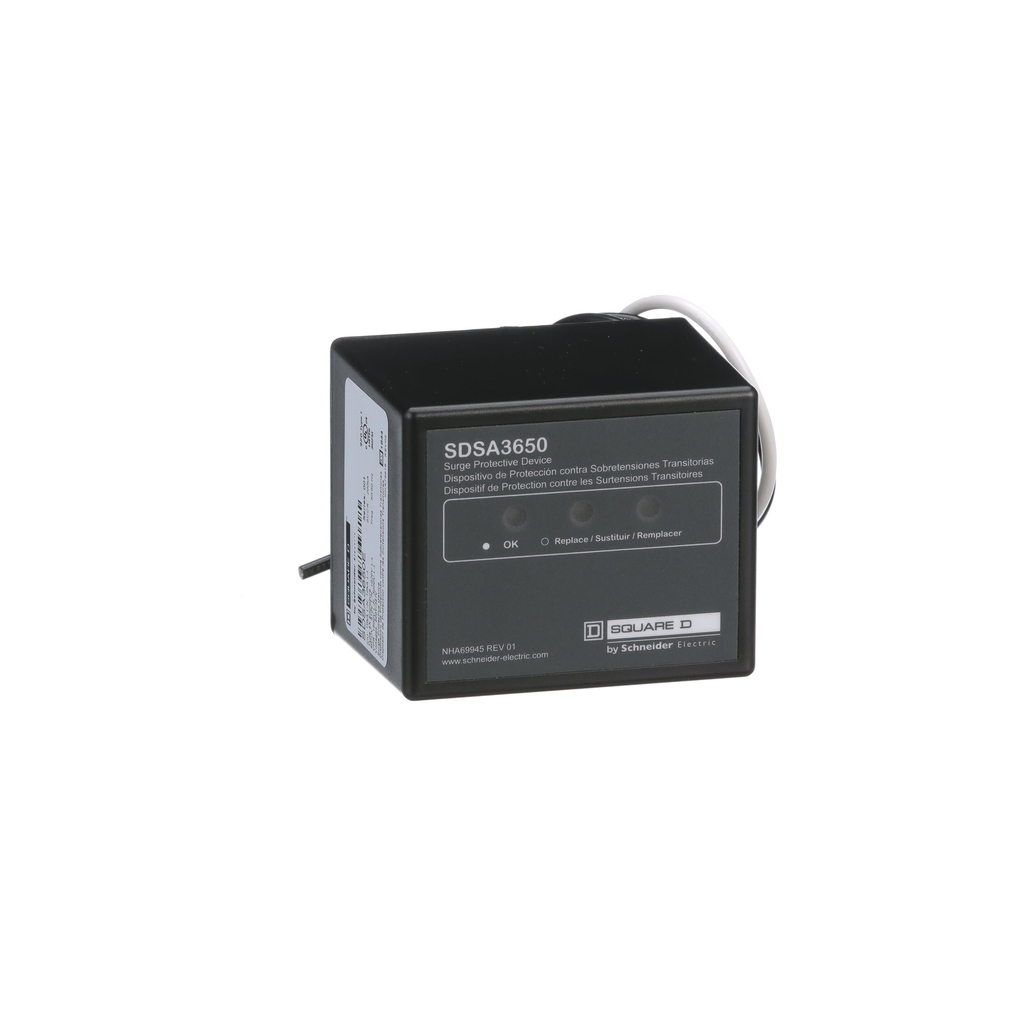

SDSA3650E
Surge protection device, Surgelogic, 40kA, 600VAC delta, 3 phase, 4 wire, NEMA 1
Square D™ load center surge protective devices, SDSA3650E, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Surgelogic |
|---|---|
| Product Or Component Type | surge protection device |
| Local Signalling | status LED |
| Connections - Terminals | wire |
| Short-Circuit Protection | 200 kA |
| Cable Length | 24 in |
| [Uc] Maximum Continuous Operating Voltage | 510 V |
| Surge Current | 40 kA |
| Wiring Configuration | 3-wire |
| Nominal Discharge Current | 10 kA |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 600 V delta AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Nema Degree Of Protection | NEMA 1 |
| Enclosure Material | Black Plastic |
| Standards |
|
