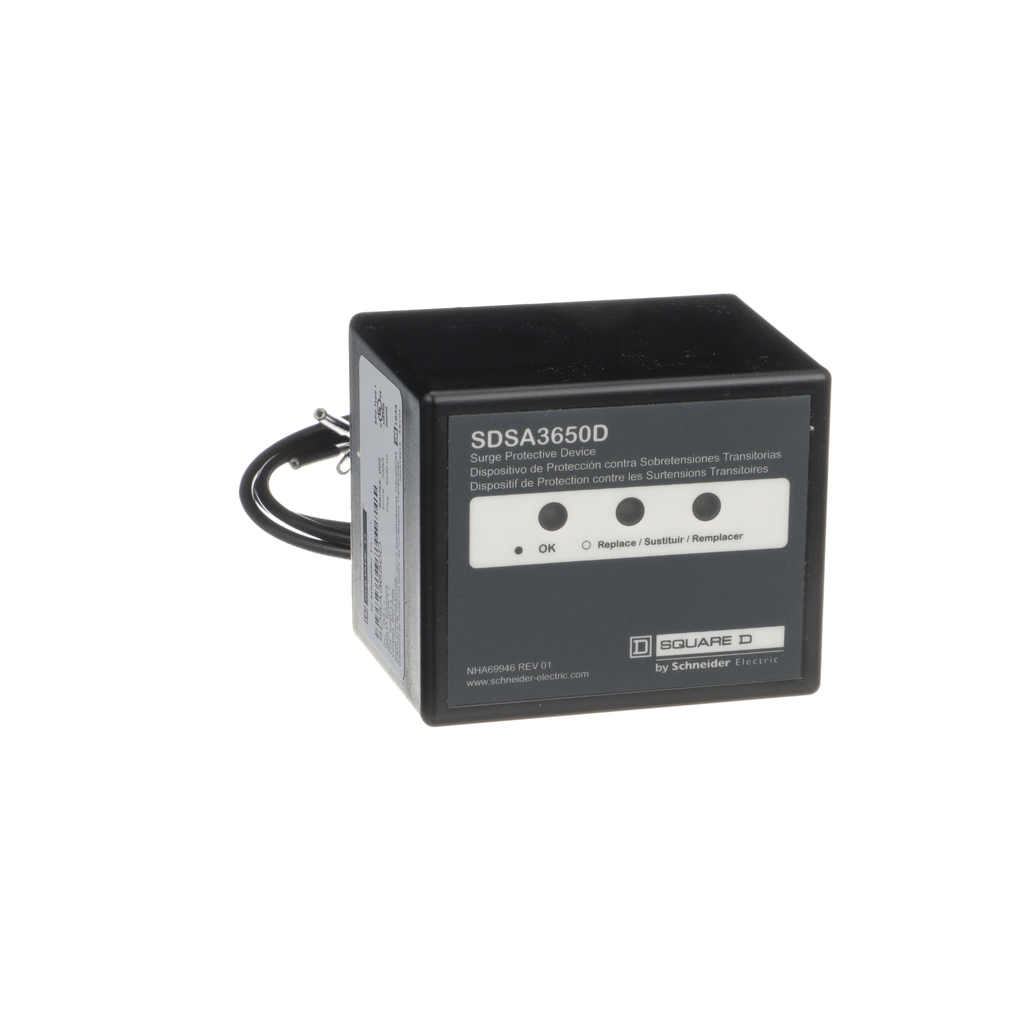

SDSA3650D
Surge protection device, Surgelogic, 40kA, 600 VAC delta, 3 phase, 4 wire, NEMA 4X
Square D™ load center surge protective devices, SDSA3650D, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Surgelogic |
|---|---|
| Product Or Component Type | surge protection device |
| Warranty | 18 months |
| Height | 3 in |
| Cable Length | 24 in |
| Surge Current | 40 kA per phase |
| Nominal Discharge Current | 10 kA |
| Phase | 3 phase |
| Local Signalling | status LED green normal operation |
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 1020 V |
| Width | 3.6 in |
| Wiring Configuration | 3-wire |
| Depth | 3.4 in |
| [Ue] Rated Operational Voltage | 600 V delta AC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | 65-65 °C |
| Standards |
|
| Nema Degree Of Protection | NEMA 4X |
| Enclosure Material | Black Plastic |
