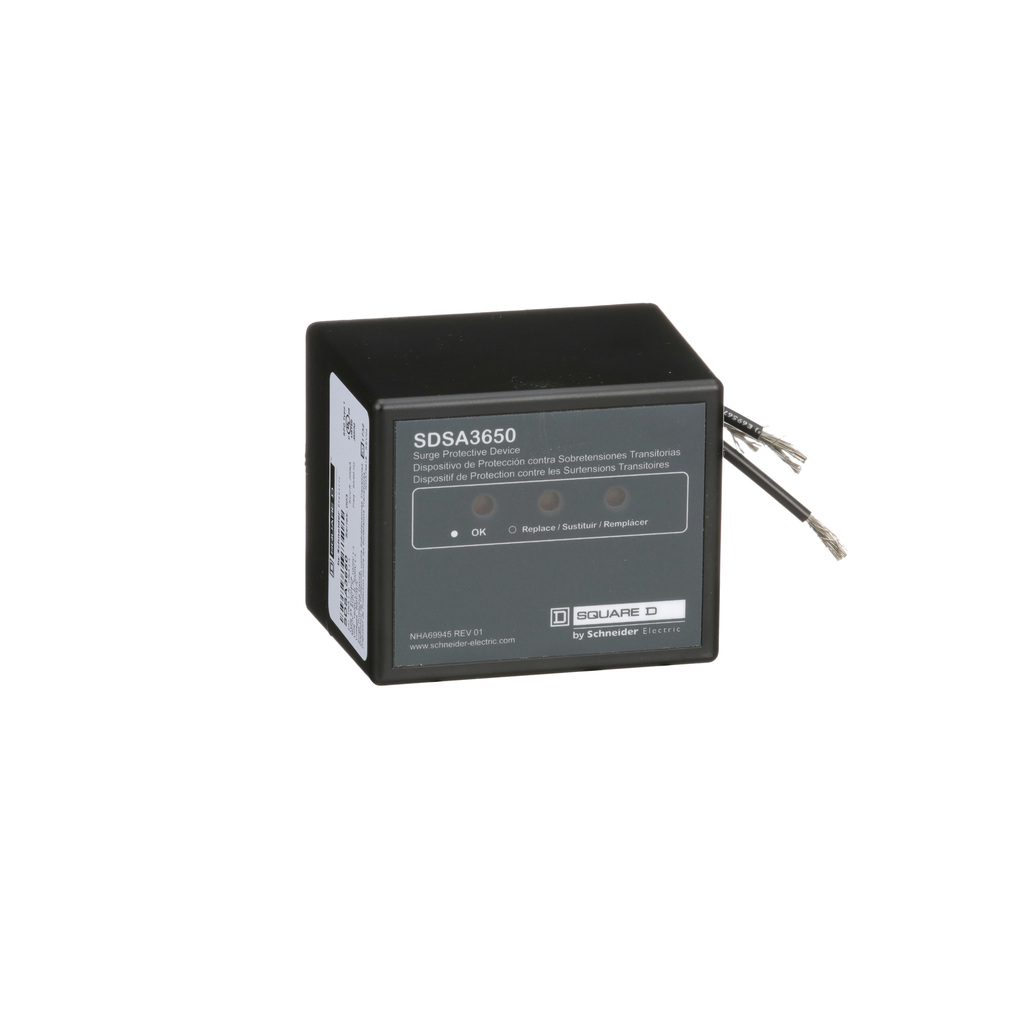

Square D™ brand Surgelogic™ SDSA 3-Phase SPDs, SDSA3650, brings down initial surges to manageable levels and can offer additional value in a cascaded SPD system. Equipped with LED status signal light for convenient use. Suitable for applications in low voltage systems, building and industrial automation and control also for critical power, cooling and racks.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Surgelogic |
---|---|
Product Or Component Type | surge protection device |
Warranty | 18 months |
Height | 3 in |
Cable Length | 24 in |
Surge Current | 40 kA per phase |
Nominal Discharge Current | 10 kA |
Phase | 3 phase |
Local Signalling | status LED green normal operation |
Short-Circuit Protection | 200 kA |
[Uc] Maximum Continuous Operating Voltage | 510 V |
Width | 3.6 in |
Wiring Configuration | 4-wire |
Depth | 3.4 in |
[Ue] Rated Operational Voltage | 600Y/347 V AC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | 65-65 °C |
Standards |
|
Nema Degree Of Protection | NEMA 4X |
Enclosure Material | Black Plastic |
