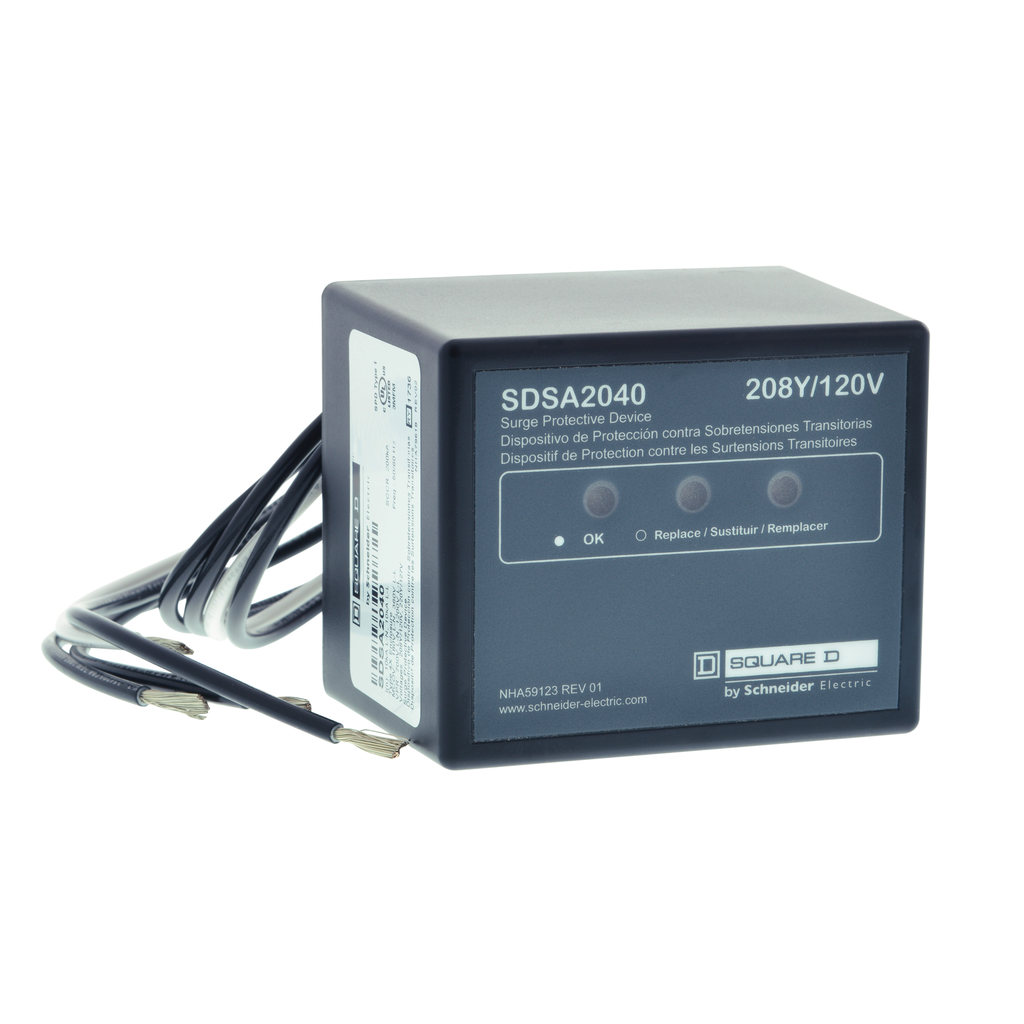

SDSA2040 - Surge protection device, Surgelogic, 40kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 4X

SDSA2040

Surge protection device, Surgelogic, 40kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 4X

Square D™ load center surge protective devices, SDSA2040, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Surgelogic
Product Or Component Type	surge protection device
Height	78 mm
Connections - Terminals	wire AWG 12 copper
Mounting Support	panel mounting
Cable Length	24 in
Surge Current	40 kA
Nominal Discharge Current	10 kA
Phase	3 phase
Local Signalling	status LED normal operation
Short-Circuit Protection	200 kA
[Uc] Maximum Continuous Operating Voltage	180 V
Width	92 mm
Wiring Configuration	4-wire
Depth	67 mm
[Ue] Rated Operational Voltage	208Y/120 V AC
Rohs Exemption Information	Yes
Mercury Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	65-65 °C
Standards	UL 1449:ed. 4 CSA C22.2 No 8:1986
Nema Degree Of Protection	NEMA 4X
Enclosure Material	Black Plastic

Surge protection device, Surgelogic, 40kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 4X
