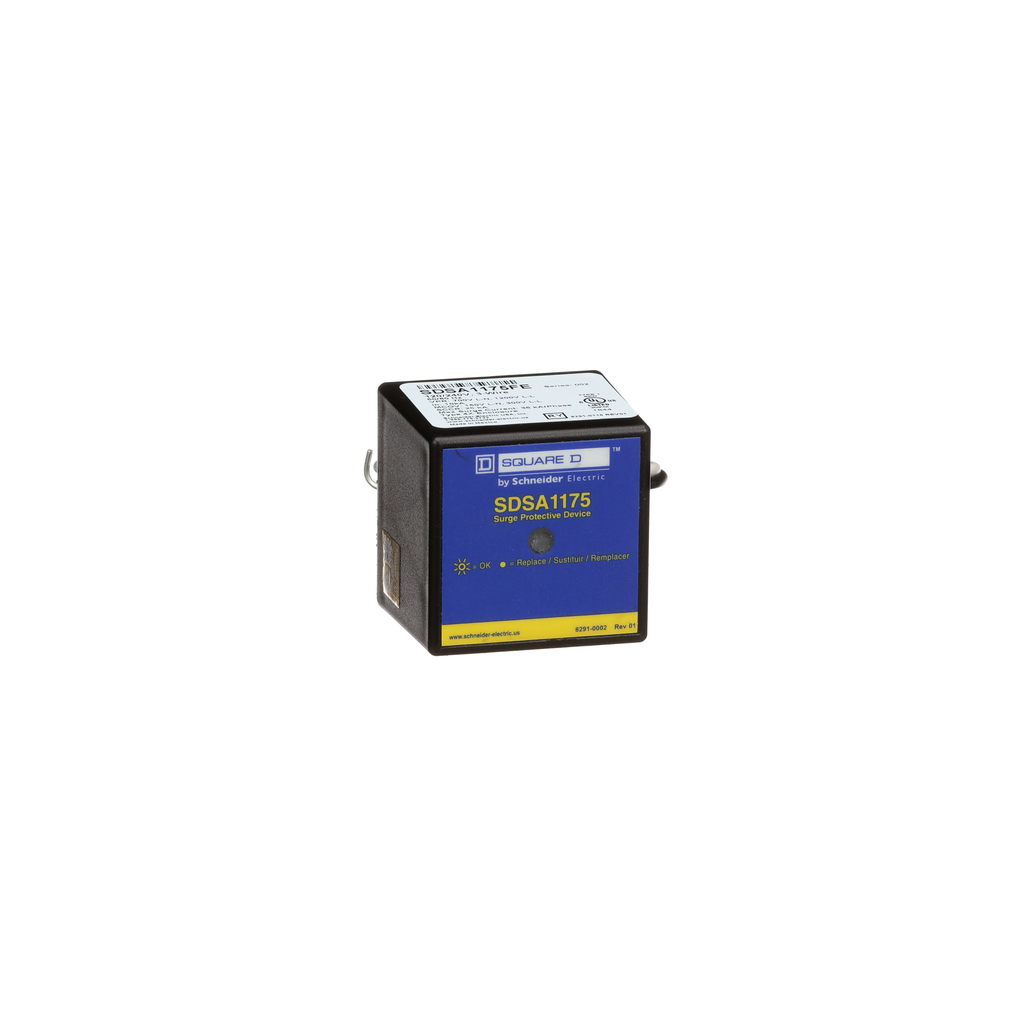

SDSA1175FE
Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X, quantity of 10
Square D™ load center surge protective devices, SDSA1175FE, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Surgelogic |
|---|---|
| Product Or Component Type |
|
| Warranty | 18 months |
| Height | 2.25 in |
| Local Signalling | status LED green normal operation |
| Short-Circuit Protection | 25 kA |
| Cable Length | 24 in |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Surge Current | 36 kA per phase |
| Wiring Configuration | 3-wire |
| Width | 2.25 in |
| Depth | 2.7 in |
| Nominal Discharge Current | 10 kA |
| Phase | 1 phase |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ambient Air Temperature For Operation | 65-65 °C |
| Nema Degree Of Protection | NEMA 4X |
| Enclosure Material | Black Plastic |
| Standards |
|
