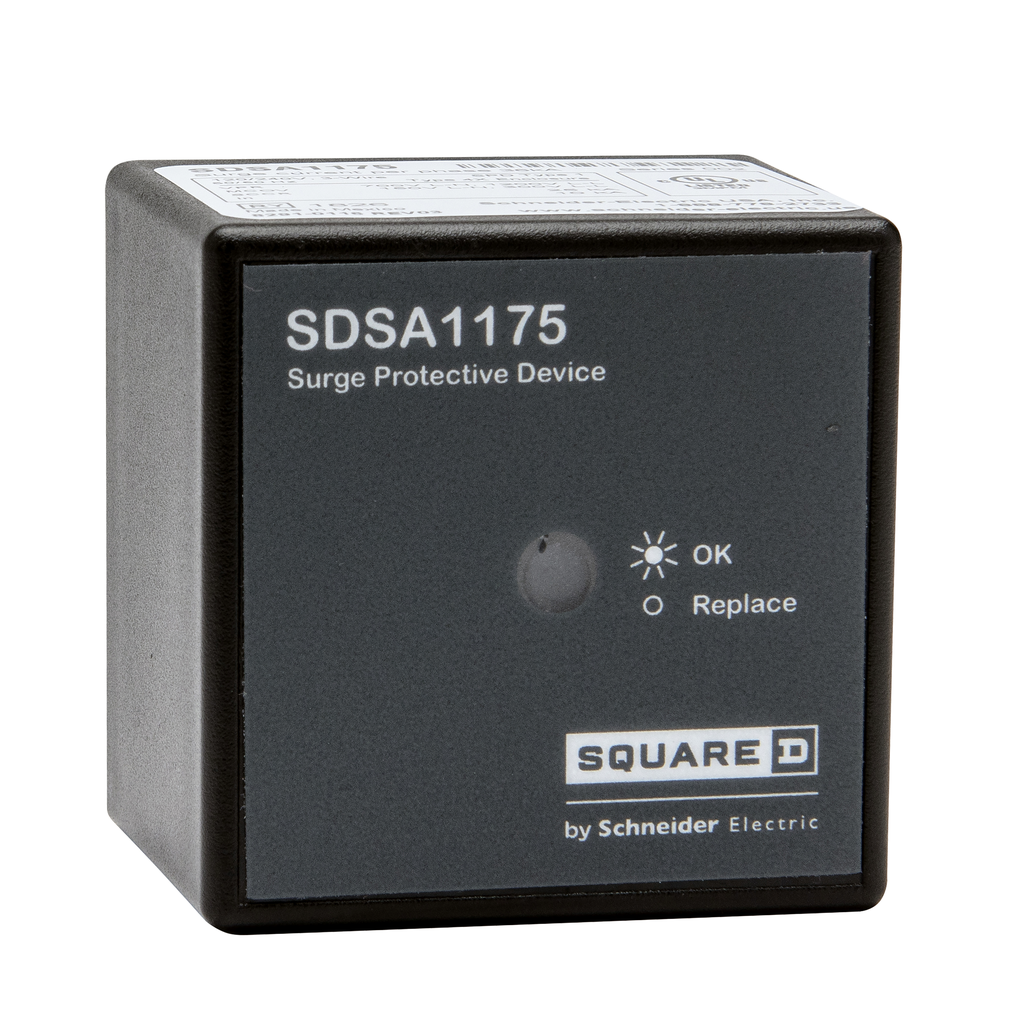

SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X

SDSA1175

Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X

This surge protection device from Square D is a type 1 device that can be used with or without an over current protection device. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. With a short circuit current rating 25 kA, back nipple mounting, and NEMA 4X rating, this compact design can be placed adjacent to power panels. The unit is set for NEC, CSA, and UL standards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Surgelogic
Product Or Component Type	surge protection device
Warranty	18 months
Height	2.25 in
Cable Length	24 in
Surge Current	36 kA per phase
Nominal Discharge Current	10 kA
Phase	1 phase
Local Signalling	status LED green normal operation
Short-Circuit Protection	25 kA
[Uc] Maximum Continuous Operating Voltage	150 V
Width	2.25 in
Wiring Configuration	3-wire
Depth	2.7 in
[Ue] Rated Operational Voltage	120/240 V AC
Rohs Exemption Information	Yes
Mercury Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	65-65 °C
Standards	UL 1449:ed. 4: type I NEC 285 CSA C22.2 No 8
Nema Degree Of Protection	NEMA 4X
Enclosure Material	Black Plastic
