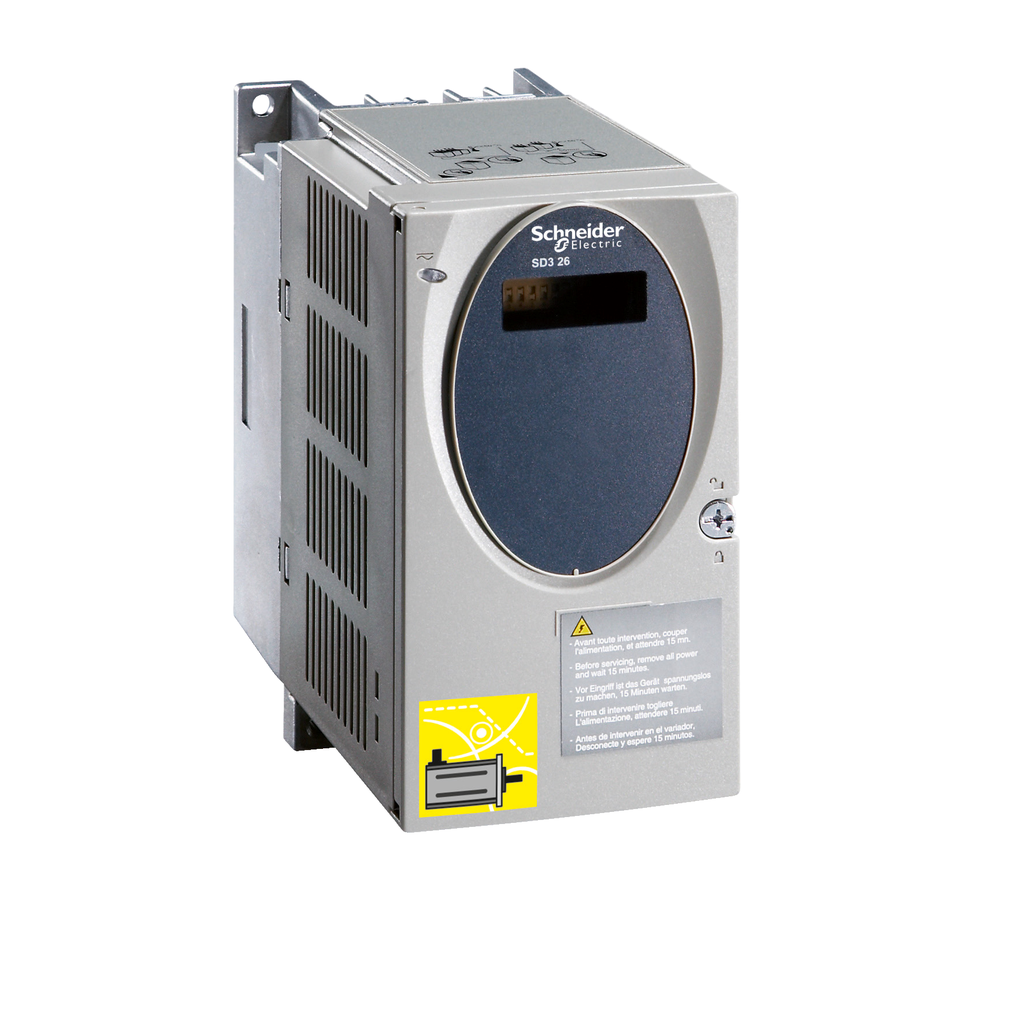

SD326RU68S2 - motion control stepper motor drive - SD326 - pulse/direction

SD326RU68S2

motion control stepper motor drive - SD326 - pulse/direction - <= 6.8 A

Add to Quote Catalogue

Specifications

Range Of Product	Lexium SD3
Product Or Component Type	motion stepper drive
Supply Voltage Limits	100-120 V 200-240 V
Device Short Name	SD326
Warranty	18 months
[Us] Rated Supply Voltage	100...120 V - 15...10 % 200...230 V - 15...10 %
Maximum Mechanical Speed	3000 rpm
Height	145 mm
Maximum Switching Current	200 mA readiness signal output) 50 mA 24 V output signals)RM-FAULT_OUT 1.7 mA 24 V output signals)+BRAKE_OUT
Physical Interface	RS422 - ENC_A/ENC_B signal input
Inrush Current	60 A
Output Voltage	<= 30 V 24 V output signals) 4.75...5.25 V ENC+5V_OUT signal output)
Maximum Motor Phase Current	6.8 A
Maximum Voltage Drop	<1 V 50 mA load 24 V output signals <1 V 50 mA load ENC+5V_OUT signal output <1 V 50 mA load readiness signal output
Format Of The Drive	block
Shock Resistance	15 gn 11 ms EN/IEC 60068-2-27
Supply Voltage Type	AC/DC
Input Current	25 mA 5 V optocoupler input signals 7 mA 24 V optocoupler input signals
Current Consumption	<= 0.2 mA 24 V control voltage
Residual Ripple	<= 5 % 24 V control voltage)
Phase	single phase
Net Weight	1.2 kg
Maximum Leakage Current	30 mA IEC 60990-3
Voltage State 0 Guaranteed	<= 5 V 24 V optocoupler input signals <= 0.5 V 5 V optocoupler input signals
Maximum Switching Voltage	30 V DC readiness signal output)
Communication Interface	pulse/direction, Integrated
Voltage State 1 Guaranteed	15...30 V 24 V optocoupler input signals 2.5...5.25 V 5 V optocoupler input signals
Associated Fuse Rating	10 A 115 V 6 A 230 V
Function Available	rotation monitoring holding brake monitoring
Maximum Input Frequency	200 kHz 24 V optocoupler input signals 200 kHz 5 V optocoupler input signals 400 kHz ENC_A/ENC_B signal input
Short-Circuit Current	0.5 kA
Network Frequency Limits	50-60 Hz - 15...10 %)
Type Of Cooling	fan
Width	72 mm
Overvoltage Category	III
Nominal Power	280 W 115 V 420 W 230 V
Depth	140 mm
Input Voltage	24 V -15 %/+20 % 24 V control voltage
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111115EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI111103EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	UL cUL
Standards	EN/IEC 61800-3 environment 1 EN/IEC 61800-5-1 EN/IEC 61800-3 EN/IEC 61800-3 environment 2 EN/IEC 50178
Pollution Degree	level 2
Electromagnetic Compatibility	electrostatic discharge level 3 EN/IEC 61000-4-2 immunity to electrical transients level 4 EN/IEC 61000-4-4 immunity to radiated radio-electrical interference level 3 EN/IEC 61000-4-3 voltage/current impulse level 3 EN/IEC 61000-4-5
Marking	CE
Ambient Air Temperature For Operation	0-40 °C UL 0-50 °C
Vibration Resistance	1 gn 13-150 Hz)EN/IEC 60068-2-6 1.5 mm 3-13 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage	-25-70 °C
Relative Humidity	5-85 % without condensation
Ip Degree Of Protection	IP20 on upper part IP40 without removal of protective film)
Operating Altitude	<= 3280.84 ft (1000 m) without derating > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
