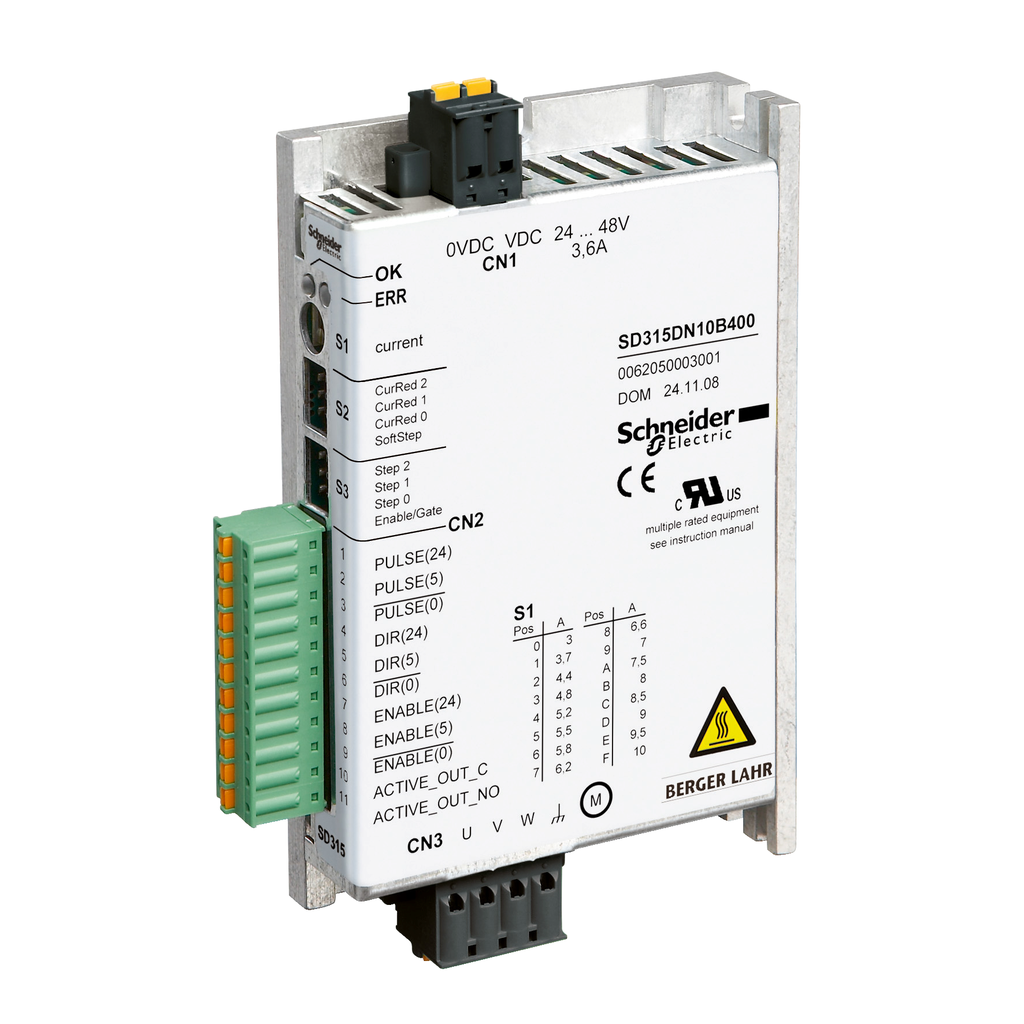

motion control stepper motor drive - SD315 - pulse direction without oscillator
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. It is a motor drive with a rated supply voltage of 24V to 48V and a motor phase current of 10A. It features natural convection cooling. It is an IP20 rated product. Its dimensions are 74.5mm (width) x 23.5mm (depth) x 117mm (height). It weighs 0.25kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. This product is certified by CE, CUL and UL. It meets EN/IEC 50178, EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2 and EN/IEC 61800-3 standards. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Lexium SD3 |
|---|---|
| Product Or Component Type | motion stepper drive |
| Supply Voltage Limits | 19-60 V |
| Device Short Name | SD315 |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24...48 V - 15...10 % |
| Height | 117 mm |
| Maximum Switching Current | 200 mA readiness signal output) |
| Physical Interface | RS422 - pulse/direction interface without oscillator |
| Maximum Motor Phase Current | 10 A |
| Maximum Voltage Drop | <1 V 50 mA load readiness signal output |
| Format Of The Drive | block |
| Shock Resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Supply Voltage Type | DC |
| Input Current |
|
| Current Consumption | <= 7.5 mA |
| Residual Ripple | < 5 % 24 V control voltage) |
| Phase | single phase |
| Net Weight | 0.25 kg |
| Maximum Leakage Current | 30 mA |
| Voltage State 0 Guaranteed |
|
| Maximum Switching Voltage | 30 V DC readiness signal output) |
| Communication Interface | pulse/direction, Integrated |
| Local Signalling |
|
| Voltage State 1 Guaranteed |
|
| Associated Fuse Rating | 10 A |
| Maximum Input Frequency |
|
| Type Of Cooling | natural convection |
| Width | 74.5 mm |
| Overvoltage Category | III |
| Depth | 23.5 mm |
| Power Losses | <= 7 W |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111115EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI111103EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards |
|
| Pollution Degree | level 2 |
| Electromagnetic Compatibility |
|
| Marking | CE |
| Ambient Air Temperature For Operation | 0-50 °C |
| Vibration Resistance |
|
| Ambient Air Temperature For Storage | -25-70 °C |
| Relative Humidity | 5-85 % without condensation |
| Ip Degree Of Protection | IP20 |
| Operating Altitude |
|
