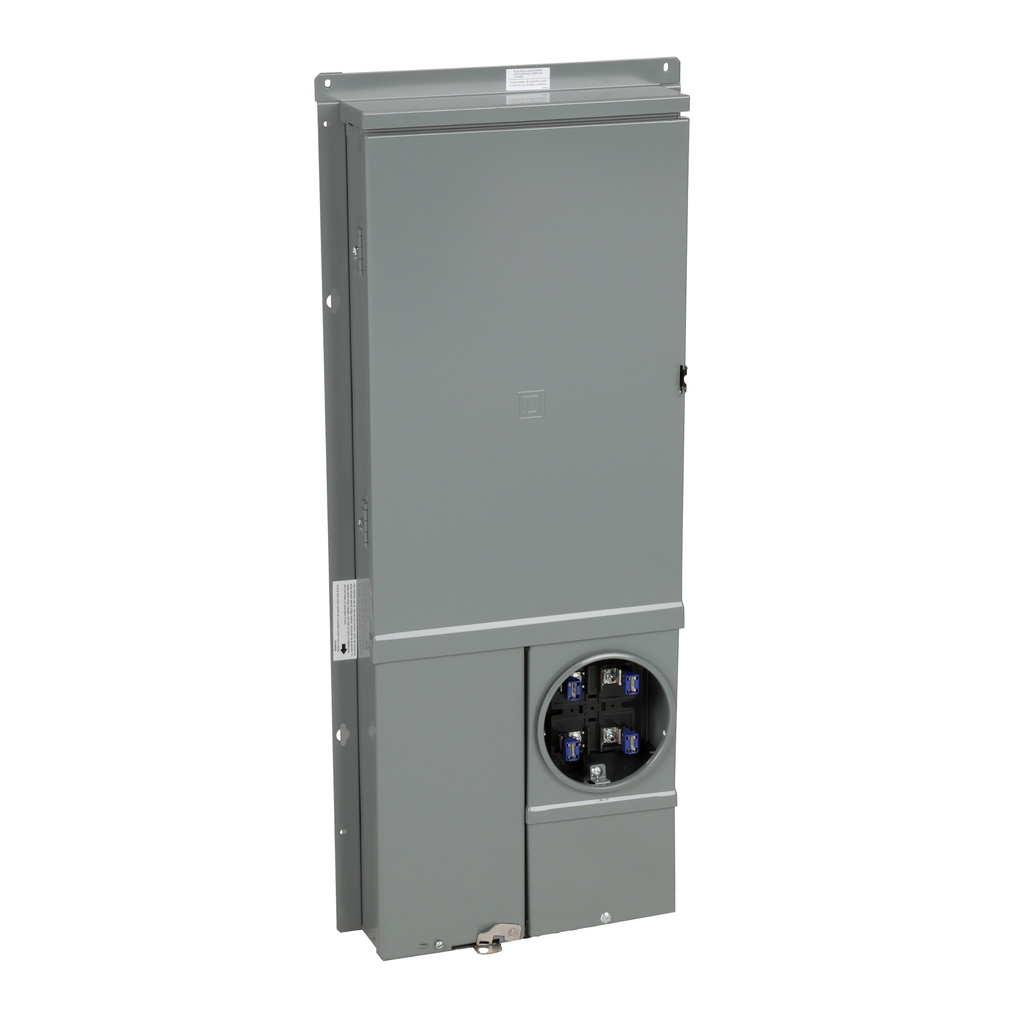

SC2040M200PF - All in one, Homeline, combination service entrance, ringed socket, 200A, semi flush, 20 spaces, 40 circuits, 10kA SSCR, OH, UG, no bypass, solar ready

SC2040M200PF

All in one, Homeline, combination service entrance, ringed socket, 200A, semi flush, 20 spaces, 40 circuits, 10kA SSCR, OH, UG, no bypass, solar ready

The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC2040M200PF, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.Suitable for OH service with addition of tunnel kit (SCTKP20).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Homeline
Hub Type	A-L
Meter Socket Type	ringed
Product Or Component Type	All-In-One
Height	39.80 in
Short-Circuit Current	22 kA
Tightening Torque	main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper service ground 50 lb.in, AWG 14...AWG 2/0, copper service ground 50 lb.in, AWG 12...AWG 2/0, aluminium branch lugs 50 lb.in, AWG 14...AWG 4, copper branch lugs 50 lb.in, AWG 12...AWG 2, aluminium branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Number Of Tandem Circuit Breakers	20
Branch Circuit Breaker Rated Current	200 A
Bypass Type	no bypass
Service Feed Location	UG OH outdoor
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Width	16.80 in
Awg Gauge	AWG 8...AWG 2/0 aluminium/copper)service ground AWG 4...250 kcmil aluminium/copper)line side
Electrical Connection	lugs line side lugs service ground
Depth	3.40 in
Number Of Circuits	40
Product Compatibility	solar ready
Number Of Spaces	20
Device Composition	service disconnect (factory installed)
Phase	1 phase
Device Mounting	semi flush outdoor)
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

All in one, Homeline, combination service entrance, ringed socket, 200A, semi flush, 20 spaces, 40 circuits, 10kA SSCR, OH, UG, no bypass, solar ready
