SC2040M200C - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 20 spaces, 40 circuits, 10kA SCCR, no bypass

SC2040M200C

All in one, Homeline, CSED, ringed socket, 200A, surface mount, 20 spaces, 40 circuits, 10kA SCCR, no bypass

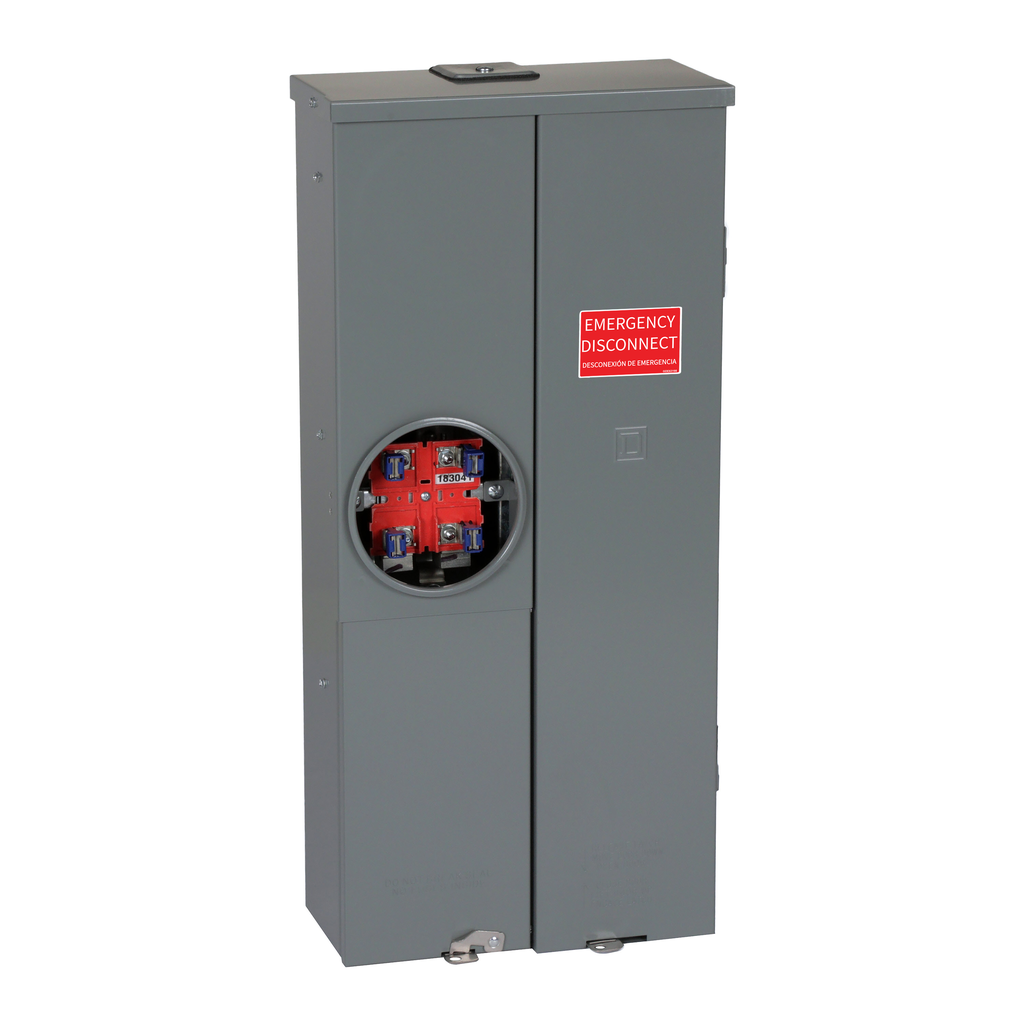

The Square D® Homeline® Load Centers Surface Mount CSED, SC2040M200C, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Can be convertable to semiflush with SC200F flange kit.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Homeline
Hub Type	A-L A
Meter Socket Type	ringed
Product Or Component Type	All-In-One
Warranty	18 months
Height	34.00 in
Short-Circuit Current	10 kA
Tightening Torque	main lugs 250 lb.in, AWG 6...300 kcmil, aluminium/copper service ground 50 lb.in, AWG 14...AWG 1/0, copper service ground 50 lb.in, AWG 12...AWG 1/0, aluminium branch lugs 50 lb.in, AWG 3...AWG 1/0, aluminium/copper branch lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 40 lb.in, AWG 8, aluminium/copper branch lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper branch lugs 35 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Number Of Tandem Circuit Breakers	20
Branch Circuit Breaker Rated Current	100 A
Bypass Type	no bypass
Service Feed Location	OH UG
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Width	14.95 in
Awg Gauge	AWG 12...AWG 1/0 aluminium)service ground AWG 6...300 kcmil aluminium/copper)line side AWG 14...AWG 1/0 copper)service ground
Electrical Connection	lugs line side lugs service ground
Depth	7.12 in
Number Of Circuits	40
Number Of Spaces	20
Device Composition	service disconnect (factory installed)
Phase	1 phase
Device Mounting	surface
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

All in one, Homeline, CSED, ringed socket, 200A, surface mount, 20 spaces, 40 circuits, 10kA SCCR, no bypass
