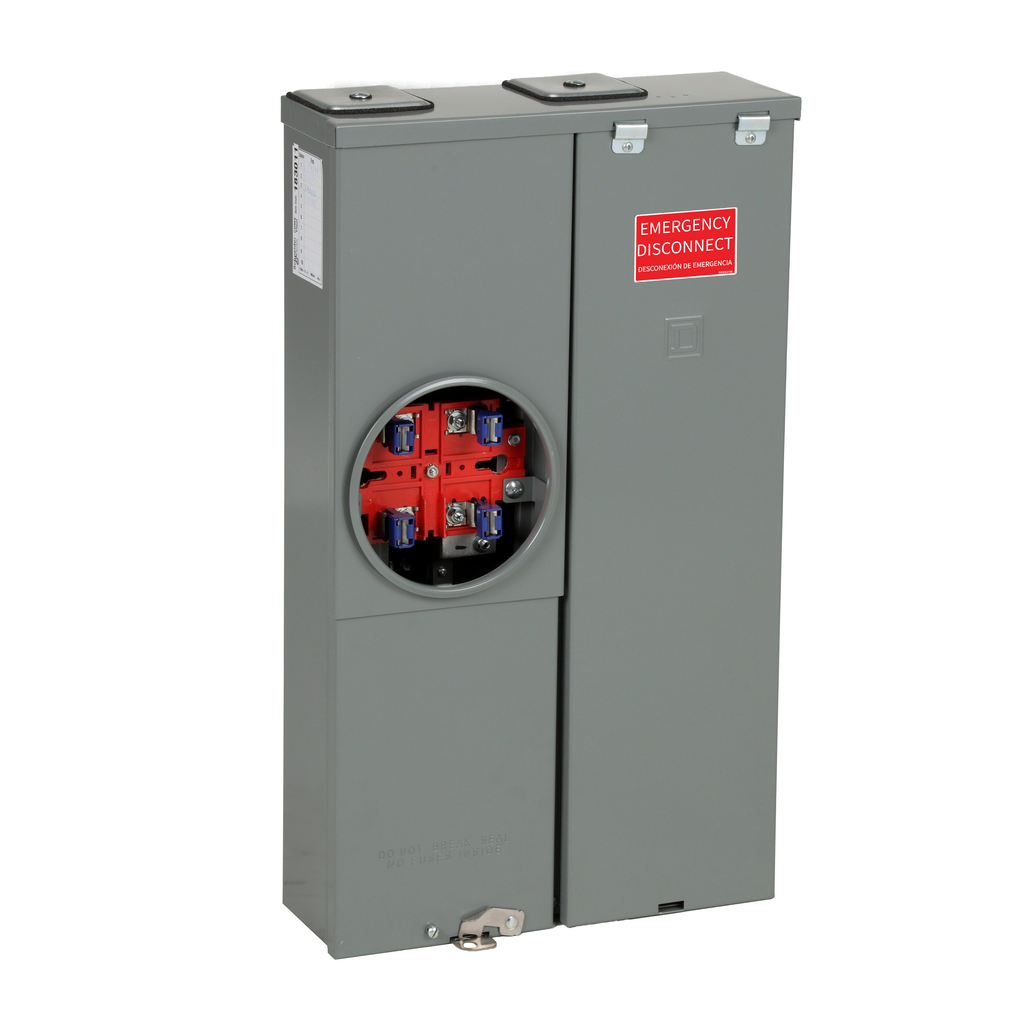

SC1624M125S
All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass
The Square D® Homeline® Load Centers Surface Mount CSED, SC1624M125S, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Homeline |
|---|---|
| Hub Type | A |
| Meter Socket Type | ringed |
| Product Or Component Type | All-In-One |
| Warranty | 18 months |
| Height | 26.50 in |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 8 |
| Branch Circuit Breaker Rated Current | 125 A |
| Bypass Type | no bypass |
| Service Feed Location |
|
| Service Disconnect Rated Current | 125 A |
| Line Rated Current | 125 A |
| Width | 14.77 in |
| Awg Gauge |
|
| Electrical Connection |
|
| Depth | 5.20 in |
| Number Of Circuits | 24 |
| Number Of Spaces | 16 |
| Device Composition | service disconnect (factory installed) |
| Device Mounting | surface |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
