S48890
Protection accessory, circuit breaker, restraint interface module, 120VAC

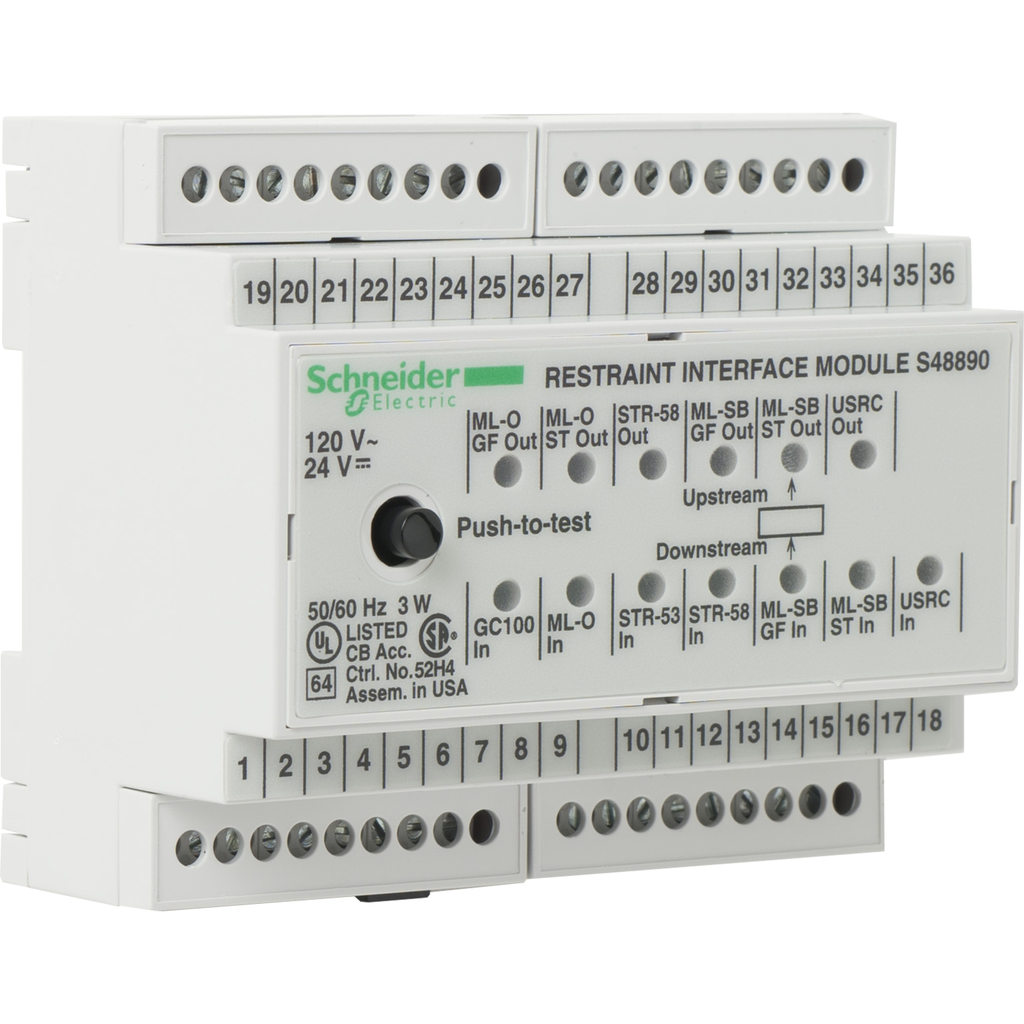

This protection accessory, is used for MasterPacT NW as a universal circuit breaker restraint interface. This restraint interface module, has a ratined input power of 10 watts, and an input voltage of 120 VAC. This module accepts AWG 24 / AWG 18 wire gauge. This device is rail mounted and is rail type NT13 and N10 with a class 8501. This device complys to UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | protection accessory |
|---|---|
| Product Or Component Type | restraint interface module |
| Device Short Name | RIM |
| Input Voltage | 120 V AC |
| Input Power | 10 W |
| Awg Gauge | AWG 24...AWG 18 |
| Tightening Torque | 0.7-1.7 N.m 0.20-0.82 mm² (AWG 24...AWG 18) |
| Mounting Support |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
