S434505

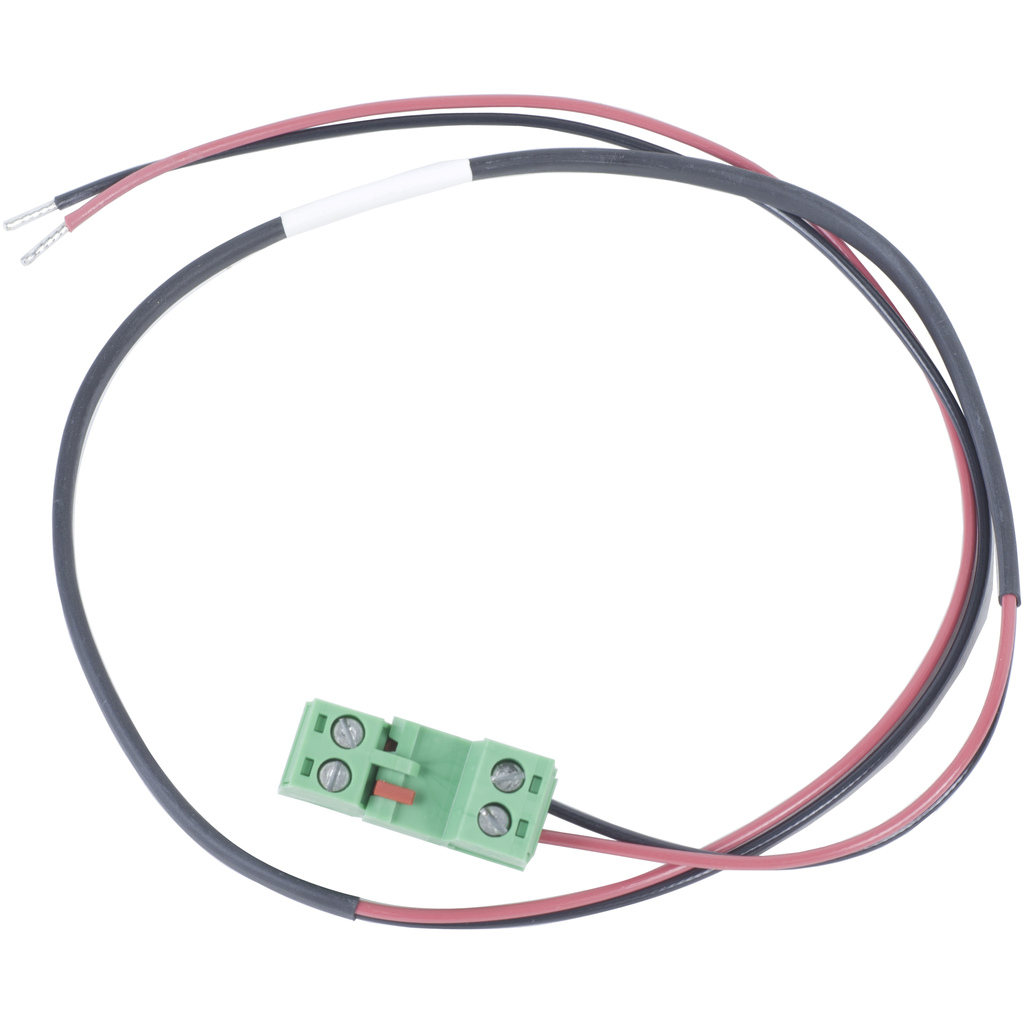

Circuit breaker accessory, PowerPacT H/J/L, Micrologic, I-Line wire harness, power supply terminal block, 24VDC
Specifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Accessory / Separate Part Category | wiring accessory |
| Product Or Component Type | wire harness |
| Warranty | 18 months |
| Tightening Torque | 1.4-1.4 N.m |
| Product Compatibility |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- NSX Cord or 24 Vdc Terminal Block for PowerPacT™ H-, J-, and L-Frame Circuit Breakers - 48940-323-01_04 (pdf)
- Wiring Harness for PowerPacT H-, J-, and L-Frame Circuit Breakers with MicroLogic Trip Units Installation Instructions - JYT66352 (pdf)
