S434212

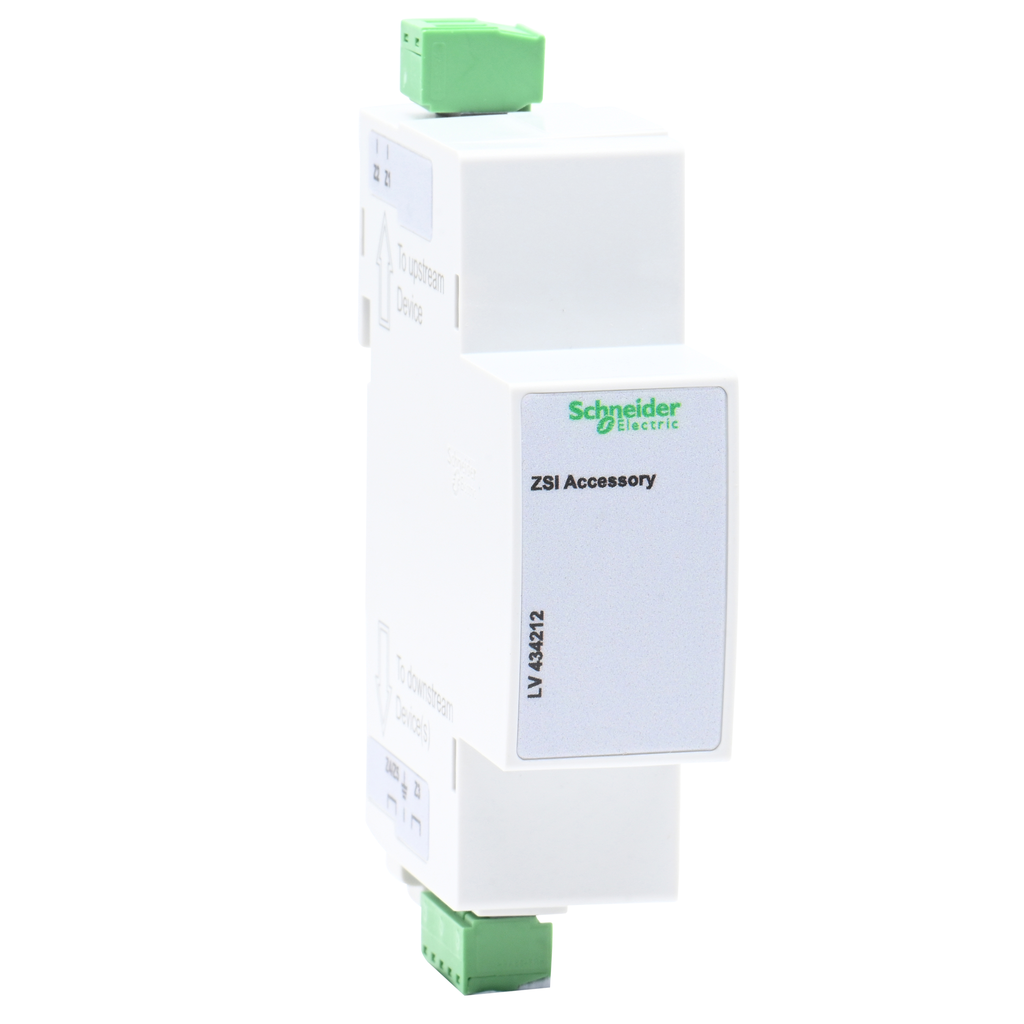

Circuit breaker accessory, PowerPacT H/J/L, Micrologic, zone selective interlock module, ZSI
This interlock accessory, is a zone selective interlocking module. This interlock module is for PowerPacT H, J, L-Frame circuit breakers. This cord is suitable for voltages under 480 VAC for PowerPacT H, J-, and L-Frames. This product complies with UL and ANSI standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Accessory / Separate Part Category | trip unit accessory |
| Product Or Component Type | interlock |
| Warranty | 18 months |
| Product Compatibility |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406010EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
