S434210

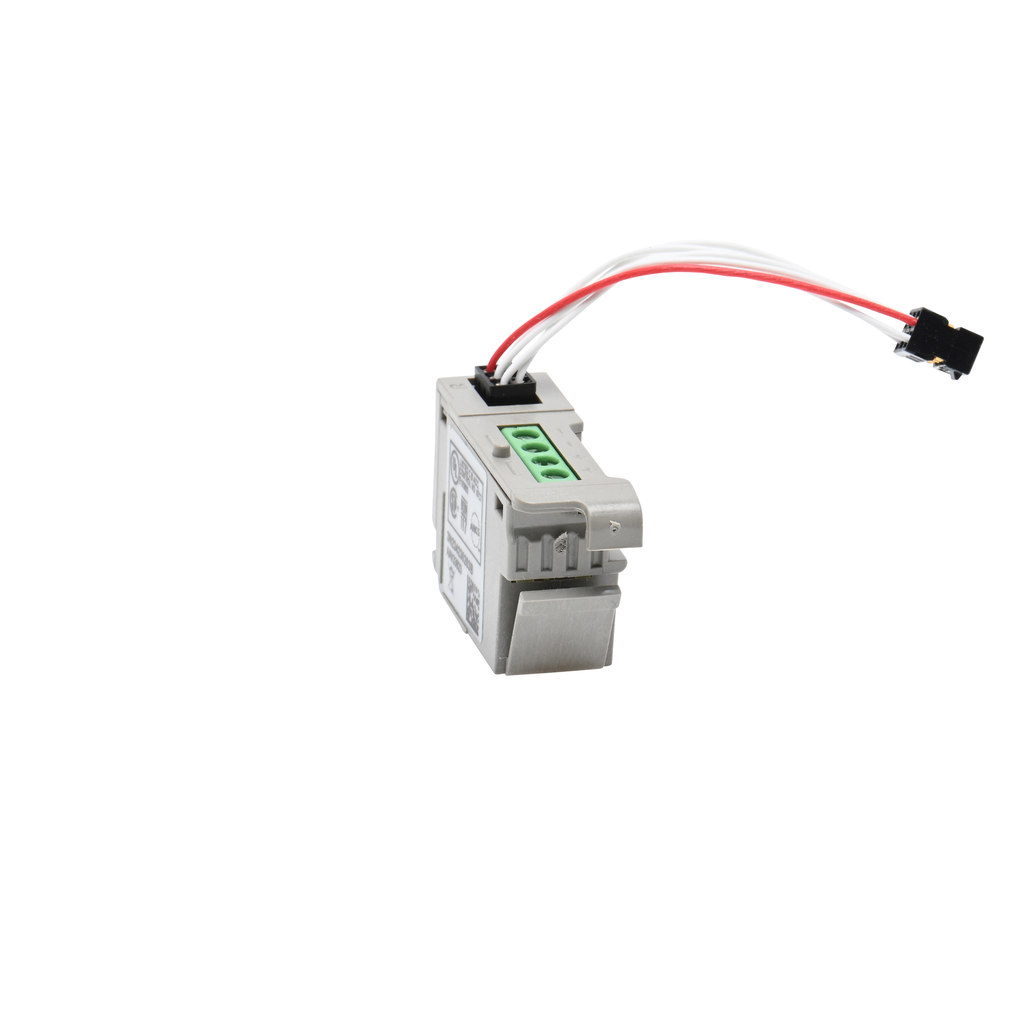

Circuit breaker accessory, PowerPacT H/J/L, Micrologic, power supply terminal block, 24VDC
This terminal block, is a connection accessory. This terminal block is compatable with PowerPacT H-, J-, L-Frame circuit breakers. The terminal block has a rated voltage of 24 VDC. This product complies to UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Accessory / Separate Part Category | trip unit accessory |
| Product Or Component Type | terminal block |
| Warranty | 18 months |
| Tightening Torque | 0.22-0.25 N.m |
| Product Compatibility |
|
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
