S430563

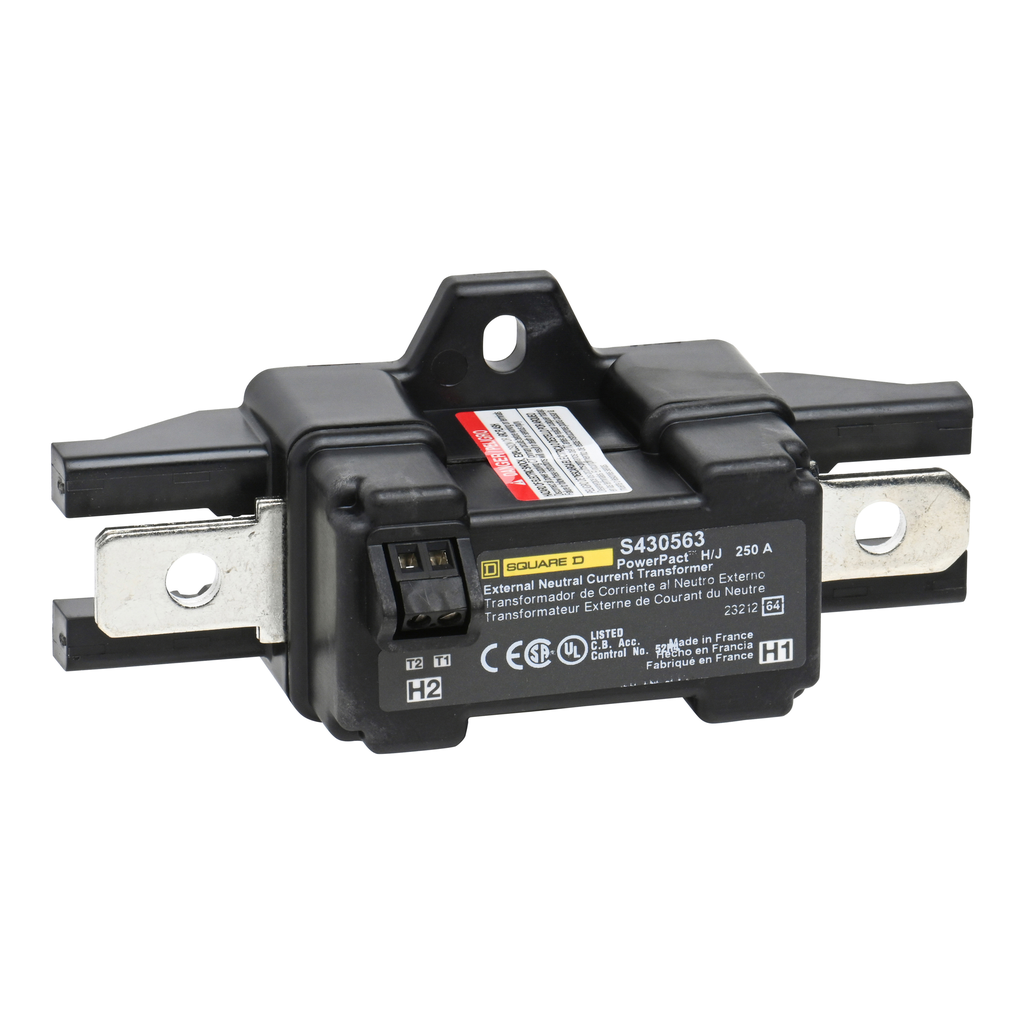

Circuit breaker accessory, PowerPacT J, Micrologic, external neutral current transformer, ENCT, 250A
The external neutral current transformer is a sensor required for a three-pole circuit breaker. The external neutral current transformer protect the neutral conductor. The external neutral current transformer protect against ground faults. This transformer has a rated current of 60-100 amps. This product complies to UL and CSA standards. This transformer has a tightening torque of 6-6 Nm, with a wire gauge of AWG 14 / AWG 10.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type | J-frame |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | current transformer |
| Warranty | 18 months |
| Line Rated Current | 250-250 A |
| Tightening Torque |
|
| Product Compatibility | PowerPact J PowerPact |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI111002EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111247EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
