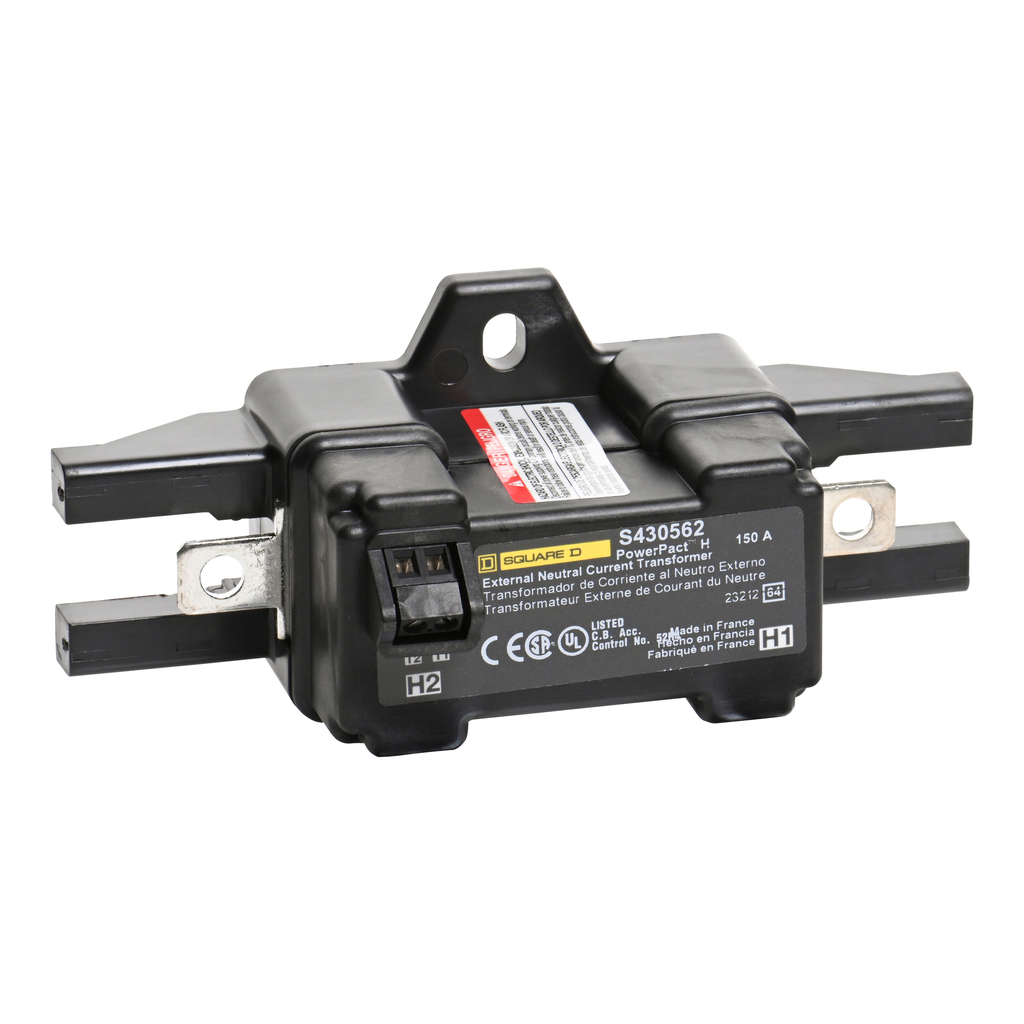

S430562
Circuit breaker accessory, PowerPacT H, Micrologic, external neutral current transformer, ENCT, 150A, AL150HD
Specifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type | H-frame |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | current transformer |
| Warranty | 18 months |
| Line Rated Current | 150-150 A |
| Tightening Torque | 14-14 N.m (AWG 8...AWG 2/0) |
| Product Compatibility | PowerPact H PowerPact |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI111002EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111247EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
