S34036

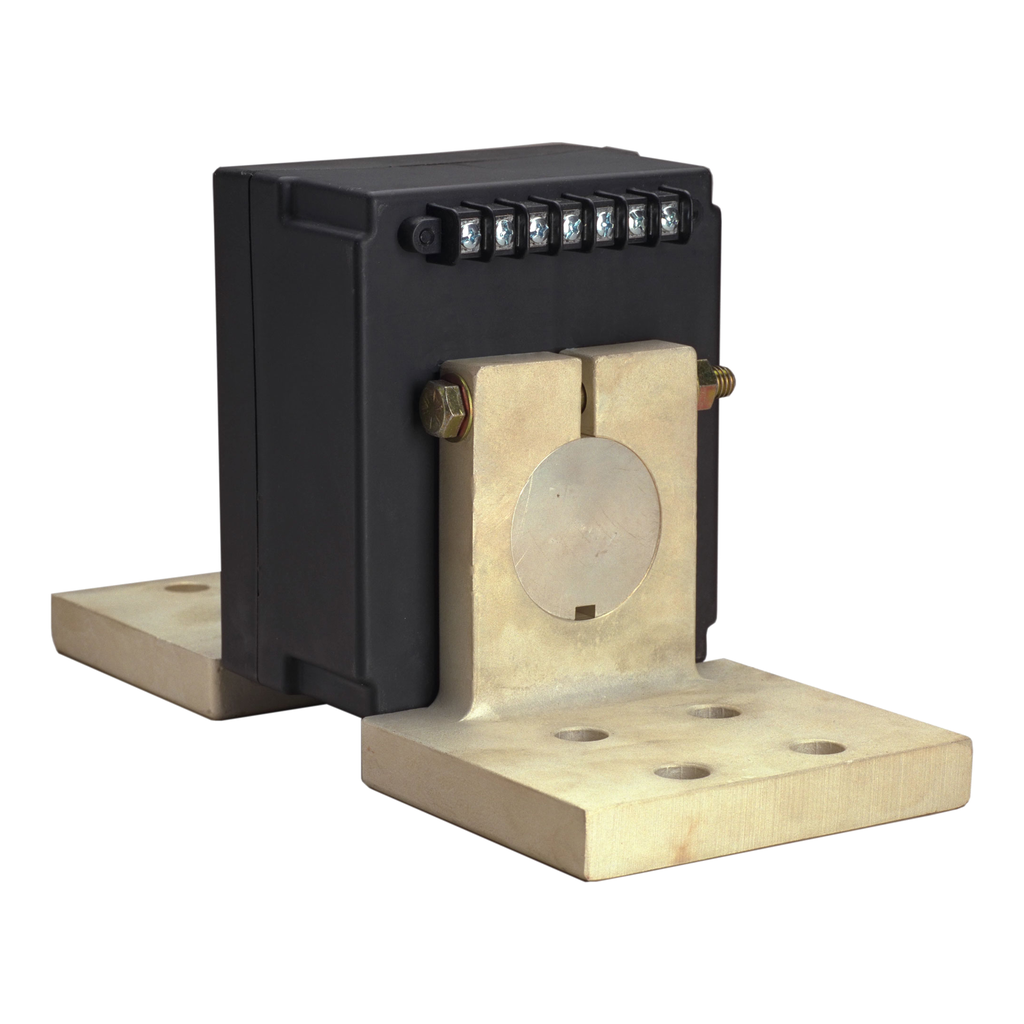

Neutral current transformer, PowerPact R, 400 to 1600A sensor
Square D PowerPact P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. This neutral current transformer kit is used for PowerPact P-frame circuit breakers with current rating of 400 to 1600A
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | MasterPact NW |
|---|---|
| Circuit Breaker Type | NW |
| Product Or Component Type | sensor |
| Warranty | 18 months |
| Product Destination | current transformer |
| Line Rated Current | 400-1600 A |
| Product Compatibility | PowerPact R PowerPact |
| Mounting Location | external |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Neutral Current Transformers for MasterPacT NW, R-Frame and NS1600b– NS3200 Circuit Breakers Installation - 48049-222-04 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
