S33670

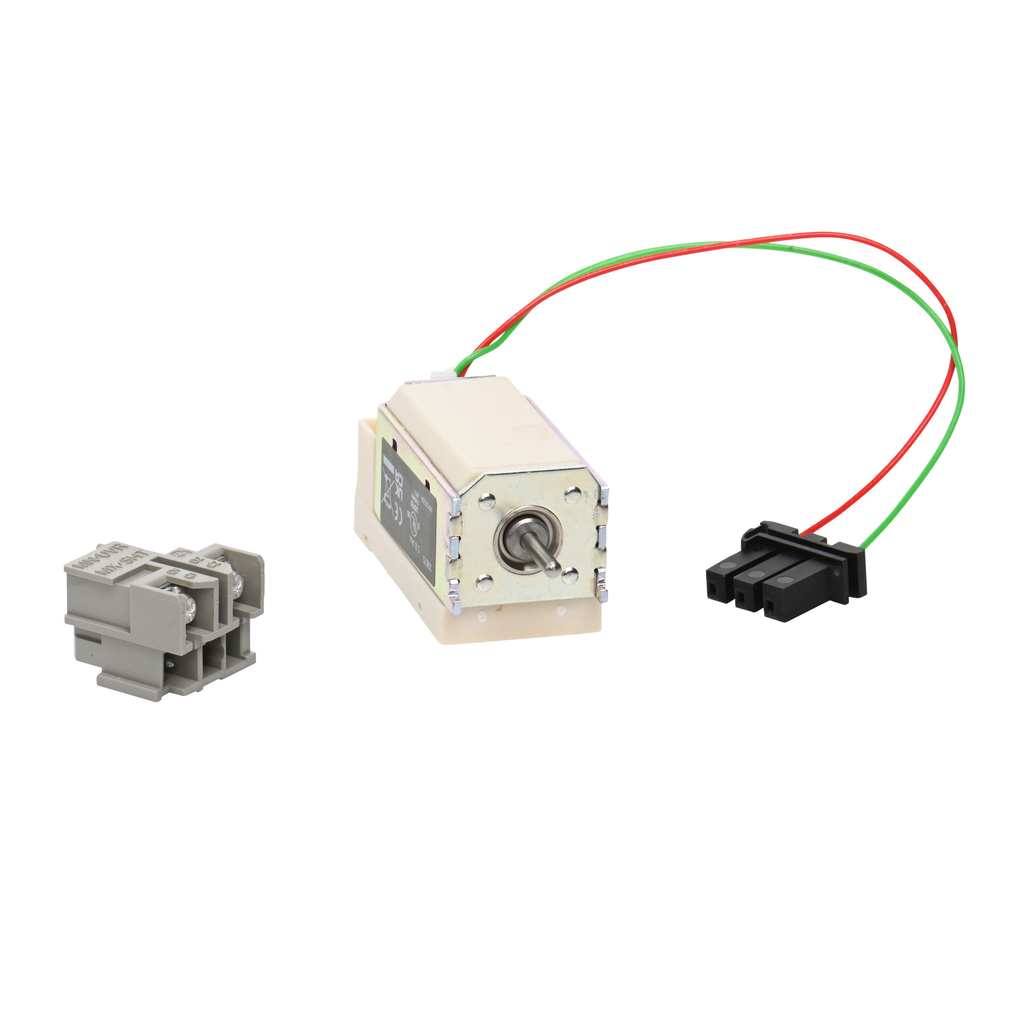

Circuit breaker accessory, PowerPacT M/P/R, undervoltage trip, 110VAC to 130VAC, 125VDC
This is a trip unit accessory for PowerPact H, J, L-Frame circuit breakers. This is an undervoltage trip unit accessory for PowerPact H, J, L-Frame circuit breakers. This accessory complies with CSA standards. This trip unit requires a tightening torque of 1.4-1.4 Nm, with a cable cross section of 0.82-2.5 mm², and an AWG gauge of AWG 18 / AWG 14.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type |
|
|---|---|
| Product Or Component Type | undervoltage trip |
| Warranty | 18 months |
| Tightening Torque | 1.4-1.4 N.m 0.82-2.5 mm² (AWG 18...AWG 14) |
| Rated Voltage |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
Documents
- Spec Sheet
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- PowerPacT R-Frame and NS1600b–NS3200 Circuit Breaker Installation Instructions - 48049-243-04+Rev+06 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Installation Instructions for Undervoltage Trip (MN) and Shunt Trip (MX) for M-, P-, and R-Frame and NS630b-NS3200 Circuit Breakers - 48049-245-03 (pdf)
