S33661

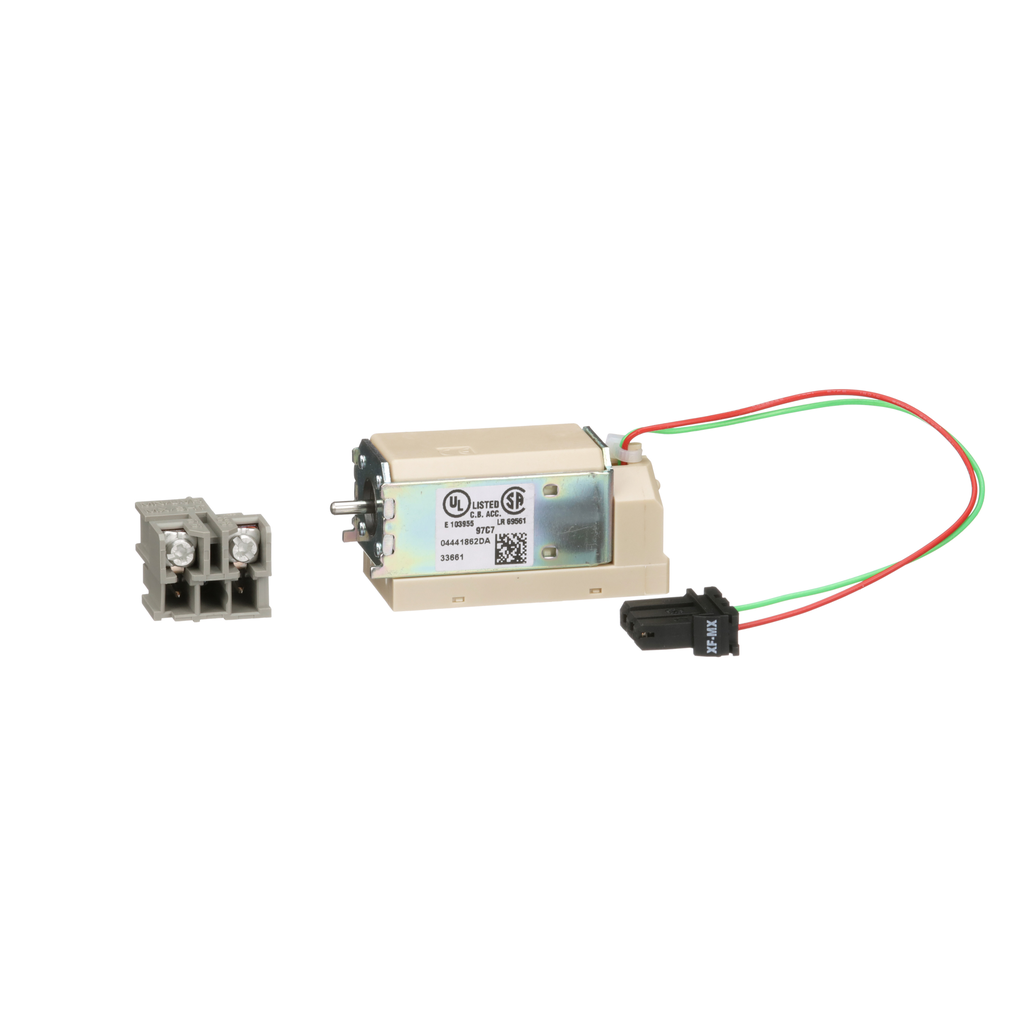

Circuit breaker accessory, PowerPacT M/P/R, shunt trip, 120VAC, remote tripping
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This shunt trip unit is for PowerPacT P circuit breakers. It is rated 120VAC/VDC.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact |
|---|---|
| Circuit Breaker Type | standard |
| Device Application | trips circuit breaker from remote location |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
