S33658

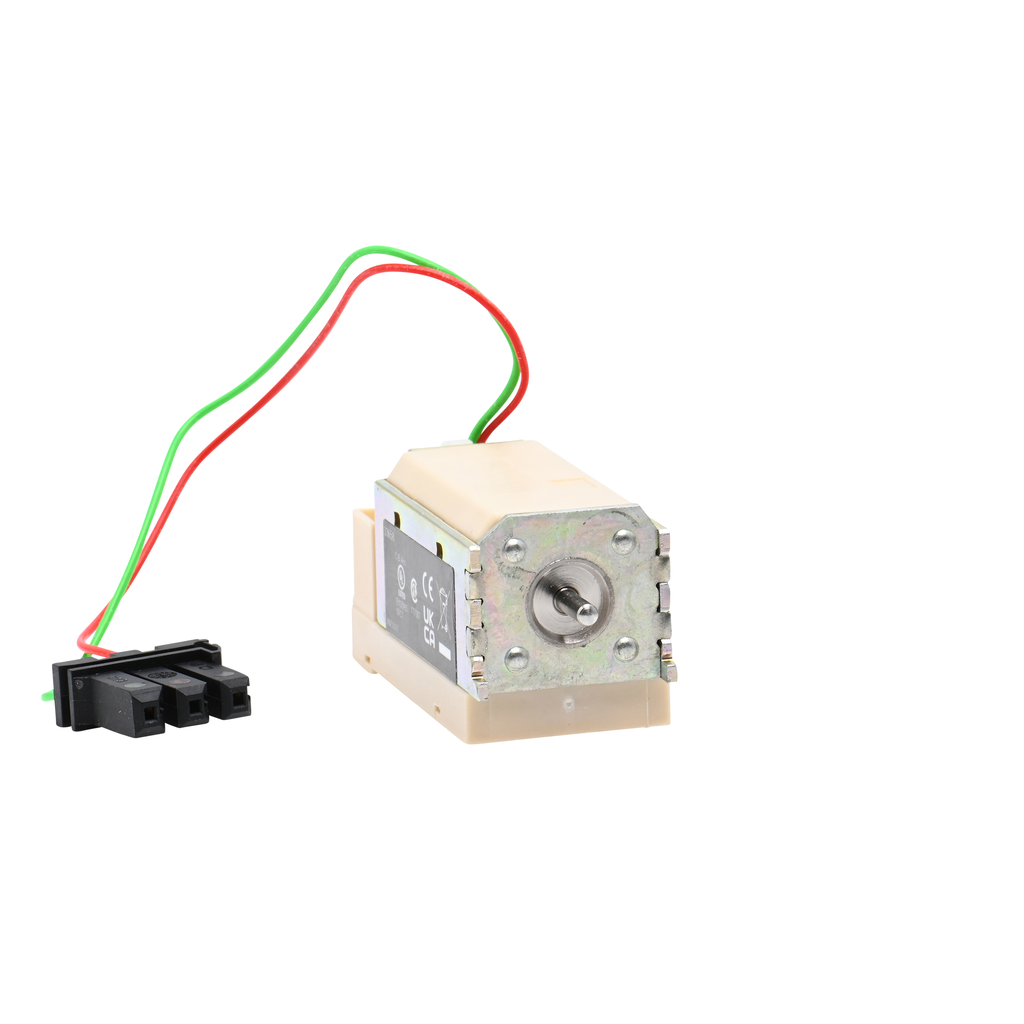

Circuit breaker accessory, PowerPacT M/P/R, shunt trip, 12VDC
This is a trip unit accessory for PowerPact M, P, R-Frame circuit breakers. This shunt trip has a rated voltage of 12 VDC. This accessory complies with CSA standards. This trip unit requires a tightening torque of 1.4-1.4 Nm, with a cable cross section of 0.82-2.5 mm², and an AWG gauge of AWG 18 / AWG 14.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type |
|
|---|---|
| Product Or Component Type | shunt trip |
| Warranty | 18 months |
| Tightening Torque | 1.4-1.4 N.m 0.82-2.5 mm² (AWG 18...AWG 14) |
| Rated Voltage | 12-12 V DC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications | CSA |
