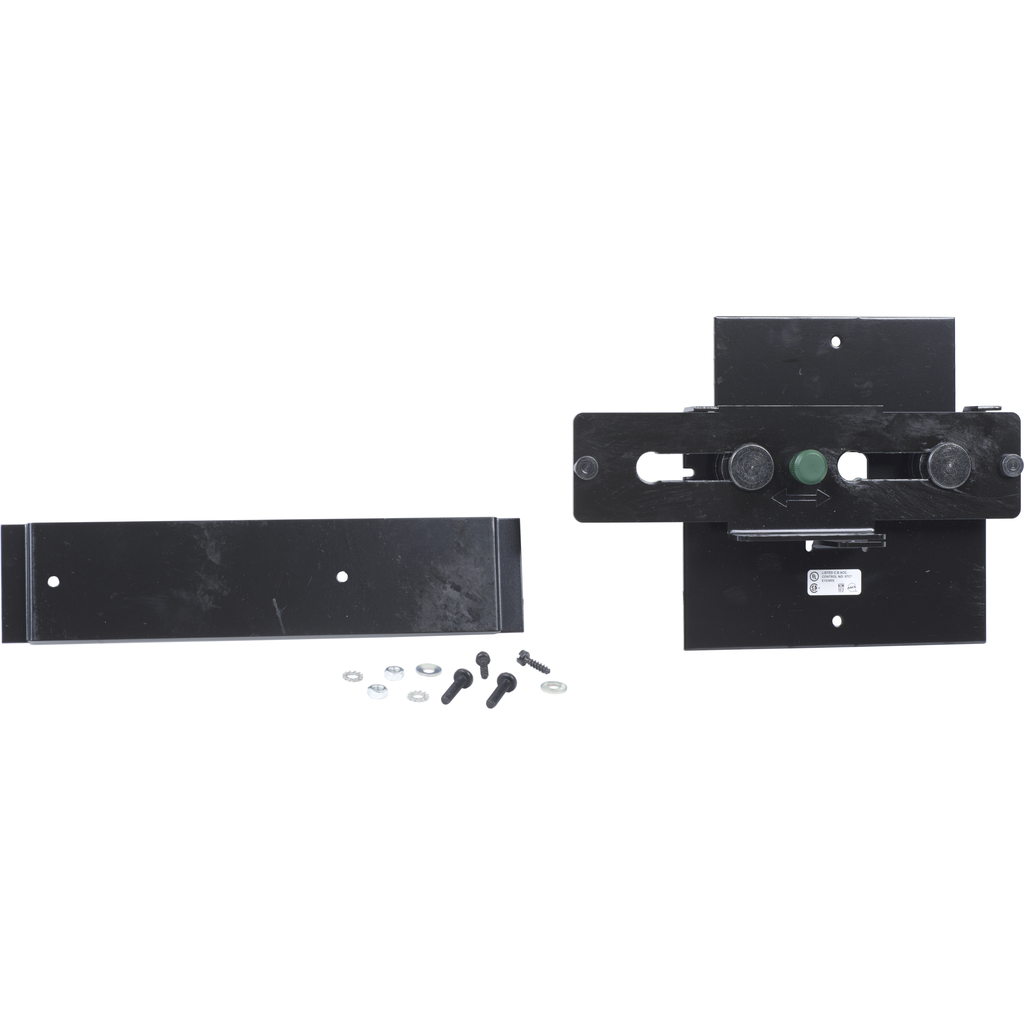

S32614
CIRCUIT BREAKER MECHANICAL INTERLOCK
Specifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Accessory / Separate Part Category | trip unit accessory |
| Product Or Component Type |
|
| Warranty | 18 months |
| Tightening Torque | 0.8-2 N.m |
| Product Compatibility |
|
| Rated Voltage | 380-480 V AC |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1311009EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311009EN_V2 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- Mechanical Interlock for Toggle Handles for PowerPacT L-Frame Circuit Breakers, Kit S32614 - Installation Instructions - S1A79538_01+L+Interlock (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
