S32525

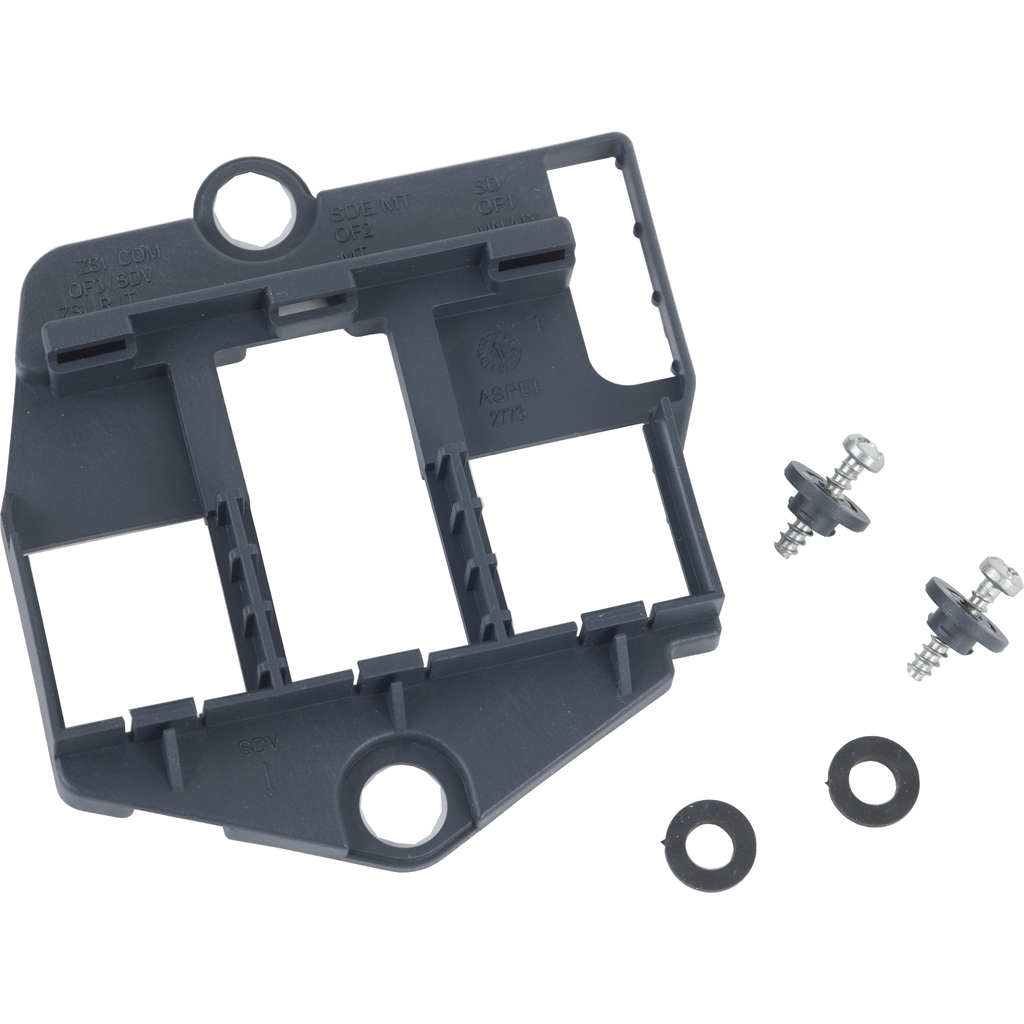

Support, PowerPacT L, for 3 moving connectors
Specifications
| Range Of Product | PowerPact L |
|---|---|
| Circuit Breaker Type | L-Frame |
| Accessory / Separate Part Category | support accessory |
| Product Or Component Type | support |
| Warranty | 18 months |
| Tightening Torque | 1.2-1.2 N.m |
| Product Compatibility | PowerPact L drawout circuit-breaker |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1311009EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311009EN_V2 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Documents
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Plug-In Base Kit for PowerPacT D- and L-Frame Circuit Breakers - Installation Instructions - S1A79535 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- 9-Wire Base Moving Connector for PowerPacT H-, J-, and L-Frame Circuit Breakers with MicroLogic Trip Units - Installation Instructions - 48940-227-01 (pdf)
