S29392
Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 48VDC

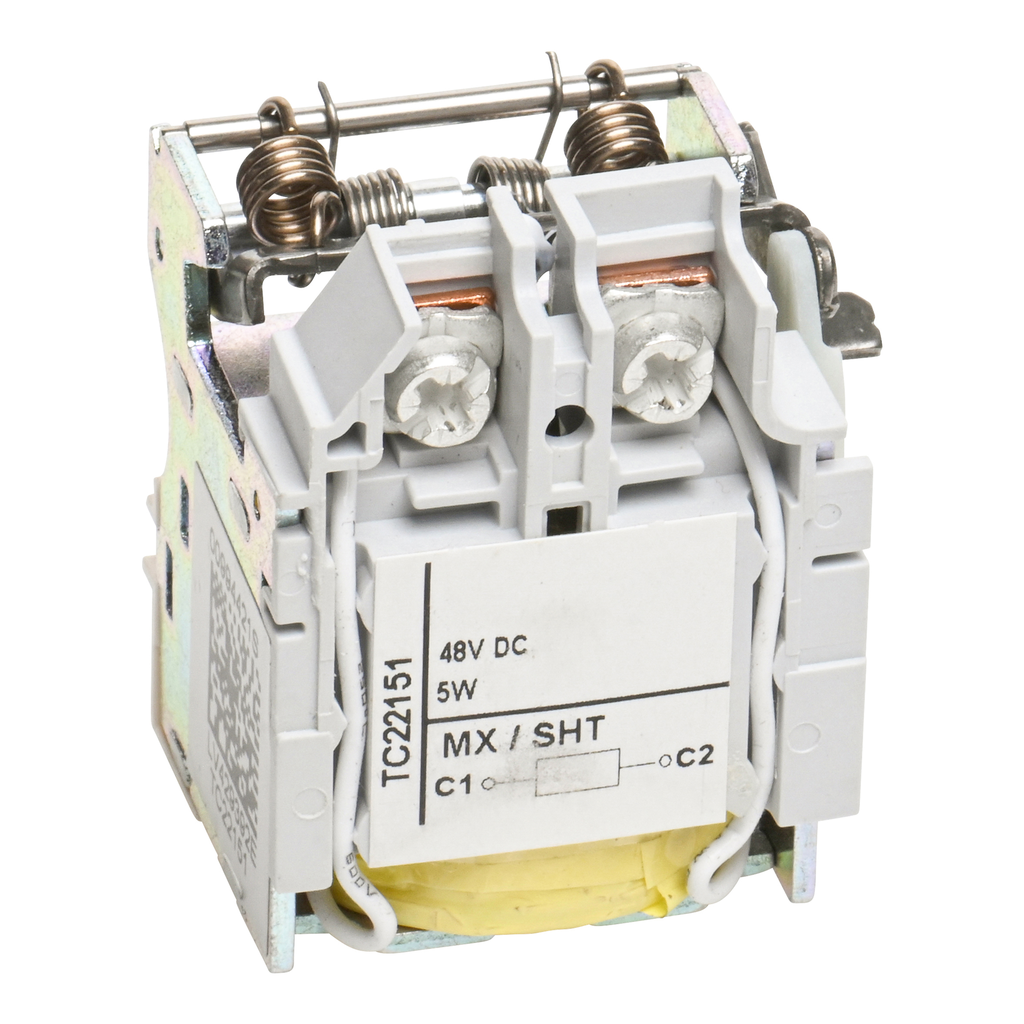

This is a trip unit accessory for PowerPact H, J, L-Frame circuit breakers. This shunt trip has a rated voltage of 48 VDC. This accessory complies with CSA standards. This trip unit requires a tightening torque of 1.4-1.4 Nm, with a cable cross section of 0.82-2.5 mm², and an AWG gauge of AWG 18 / AWG 14.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type |
|
|---|---|
| Product Or Component Type | shunt trip |
| Warranty | 18 months |
| Tightening Torque | 1.4-1.4 N.m 0.82-2.5 mm² (AWG 18...AWG 14) |
| Rated Voltage | 48-48 V DC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Product Certifications | CSA |
