S29387

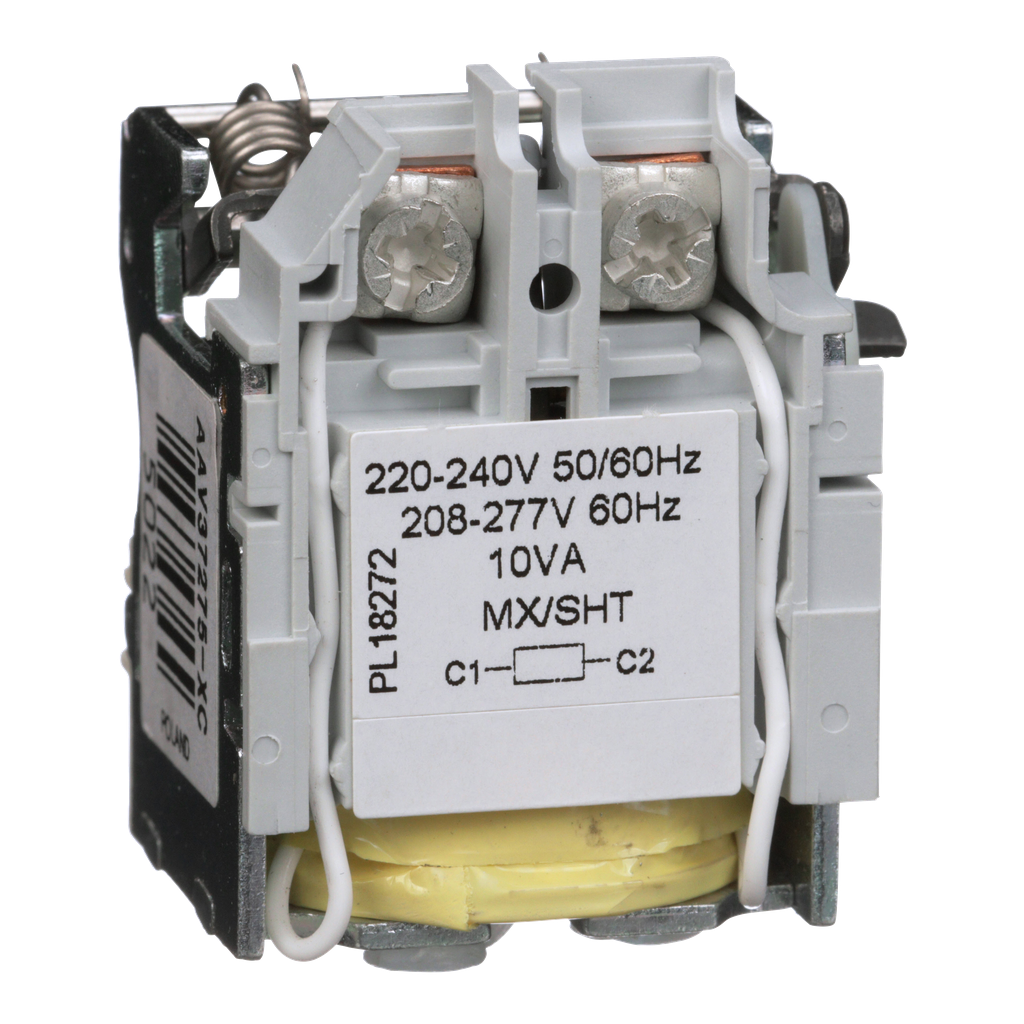

Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 208VAC to 277VAC
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type |
|
|---|---|
| Product Or Component Type | shunt trip |
| Warranty | 18 months |
| Tightening Torque | 1.4-1.4 N.m 0.82-2.5 mm² (AWG 18...AWG 14) |
| Rated Voltage | 208-277 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications | CSA |
Documents
- Spec Sheet
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Obsolescent and Obsolete Circuit Breakers Supplemental 177 (2018) - Legacy+SD_0100CT1502_SEC-11 (pdf)
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Undervoltage Trip (MN) and Shunt Trip (MX) Installation for PowerPacT H-, J-, and L-Frame and TeSys GV5/GV6 Circuit Breakers - 48940-229-01 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Undervoltage Trip (MN) and Shunt Trip (MX) Installation for PowerPacT H/J/L-Frame and TeSys GV5/GV6 Circuit Breakers - JYT6472101 (pdf)
