S29386

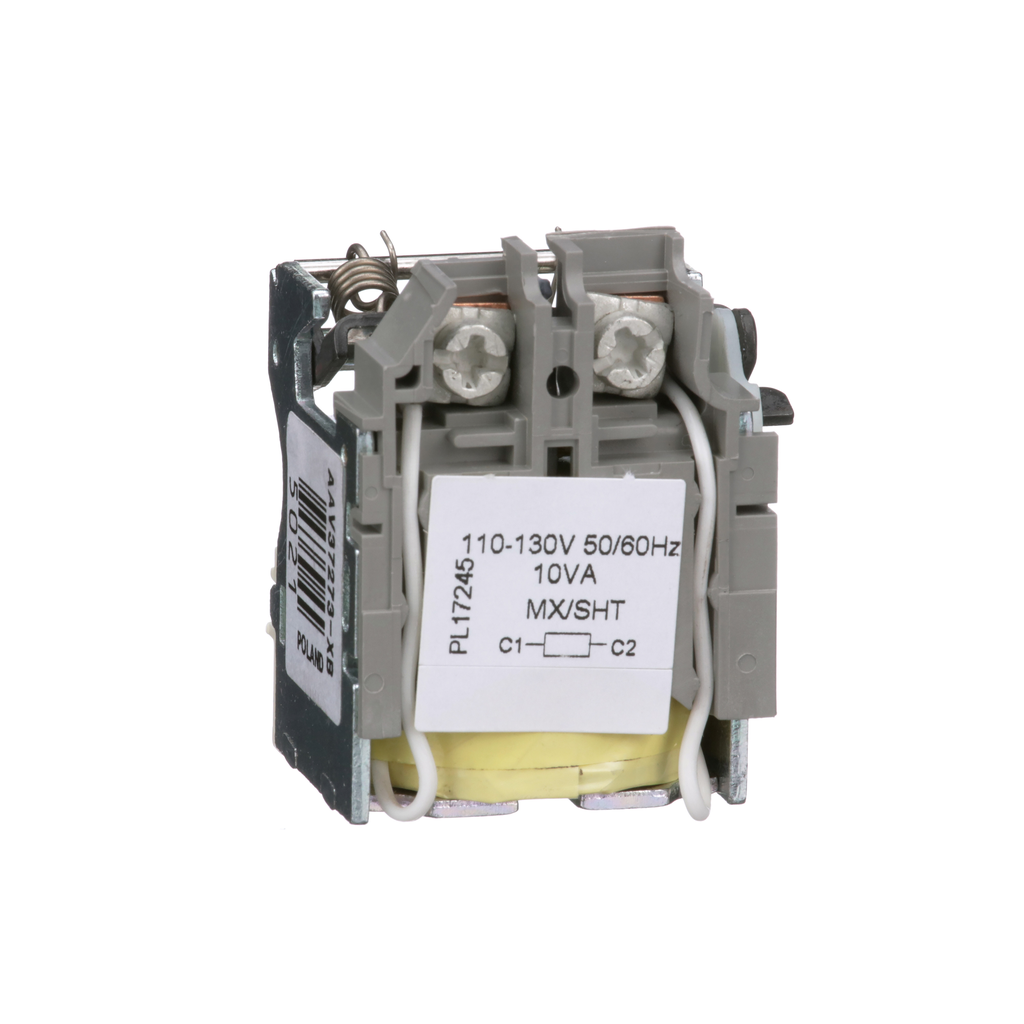

Circuit breaker accessory, PowerPacT, shunt trip, 110VAC to 130VAC
The PowerPact™ H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact H Circuit Beaker Shunt Trip, 110-130VAC. This product complies to UL & CSA certifications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact |
|---|---|
| Circuit Breaker Type | standard |
| Warranty | 18 months |
| Height | 1.72 in |
| Tightening Torque | 1.4-1.4 N.m |
| Width | 1.28 in |
| Depth | 1.24 in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
