Circuit breaker accessory, PowerPacT H/J, rotary handle, operating mechanism kit, direct mounted

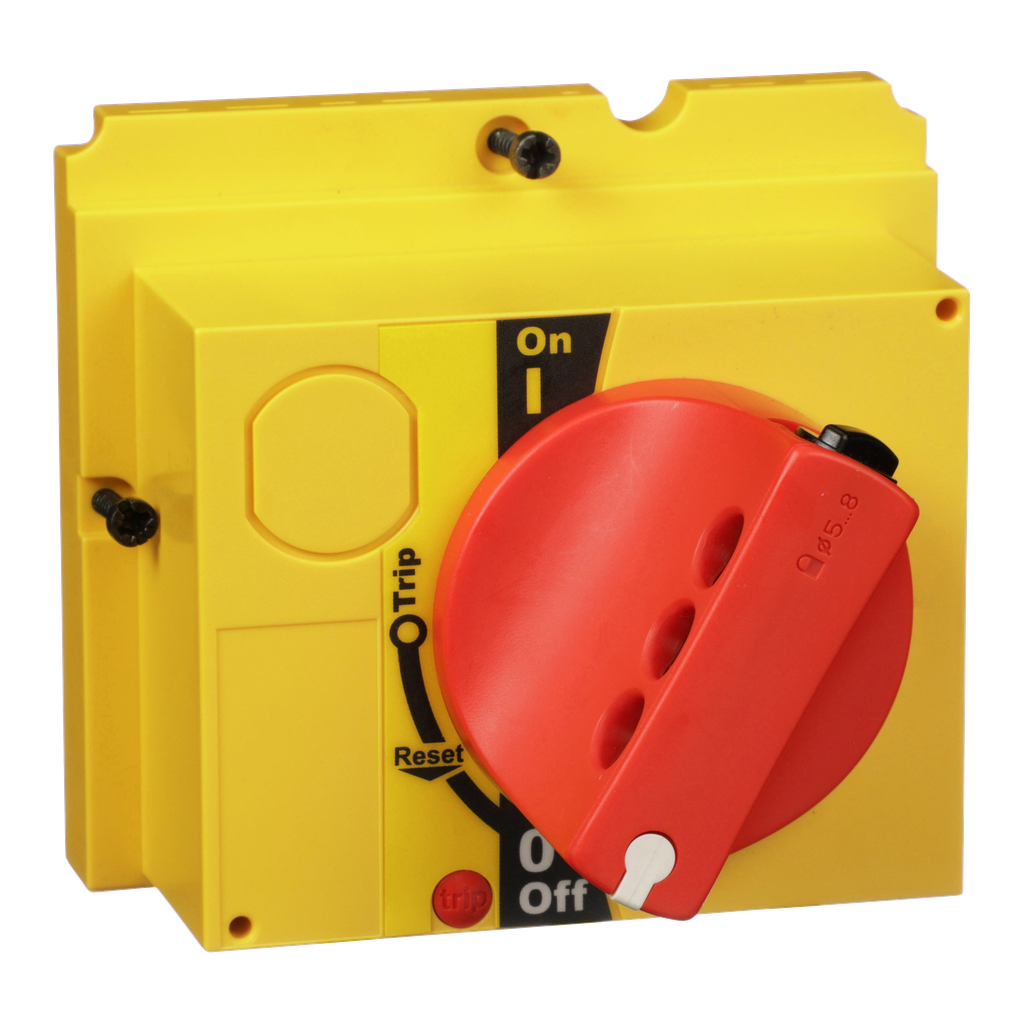

The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000 A, offering new performance in a remarkably compact device. This is direct mounted rotary handle for Powerpact H and J-frame circuit breakers. This device is a red handle on yellow bezel.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Product Or Component Type | rotary handle |
| Warranty | 18 months |
| Product Compatibility |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI111011EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110804EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Spec Sheet
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Direct-Mounted Rotary Handle for PowerPacT H- and J-Frame Circuit Breakers Installation - 48940-248-01 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
