S29317

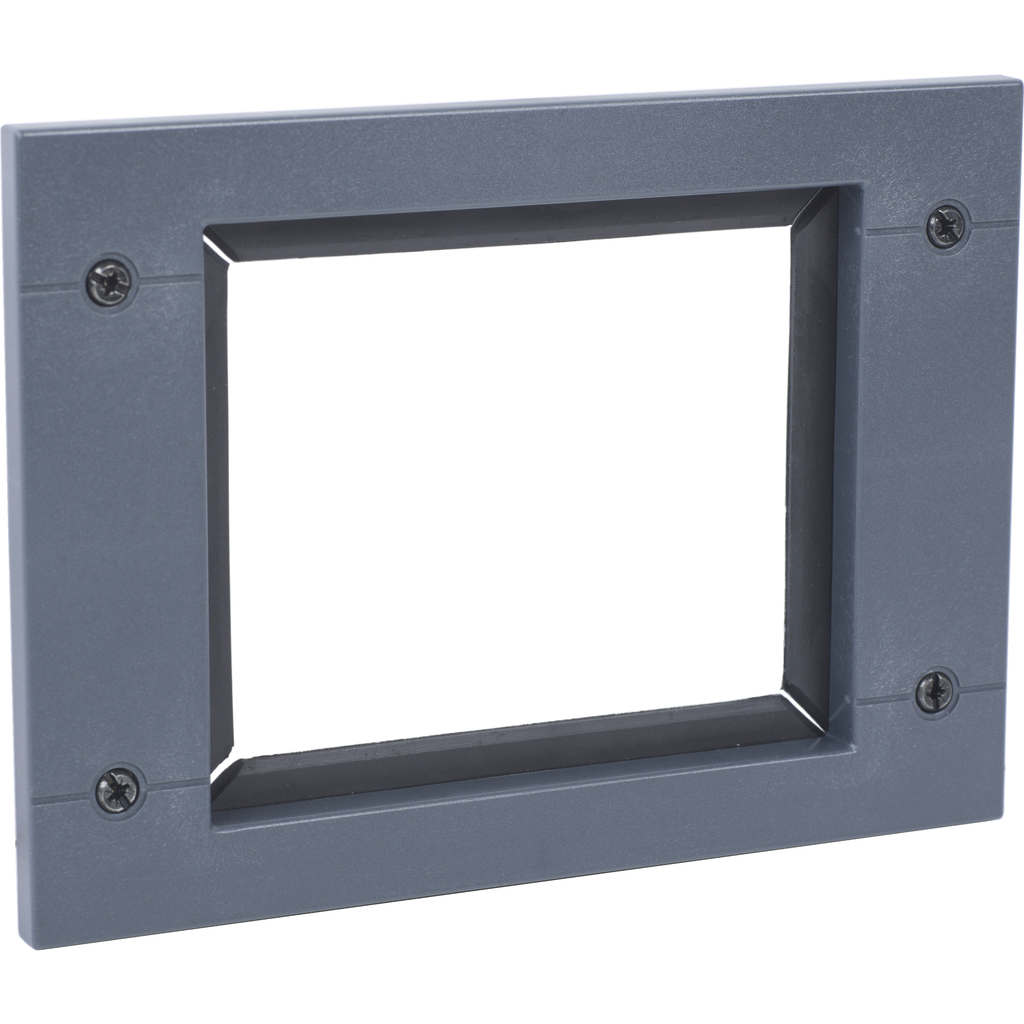

Circuit breaker accessory, PowerPacT H/J, front panel escutcheon, for rotary handle/motor operator/extended escutcheon
Specifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Product Or Component Type | escutcheon |
| Warranty | 18 months |
| Product Compatibility |
|
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications | UL |
Documents
- Spec Sheet
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- Toggle Handle Extended Escutcheon for PowerPacT H-, J-, and L-Frame Circuit Breakers - Installation Instructions - 48940-257-01 (pdf)
