S29282

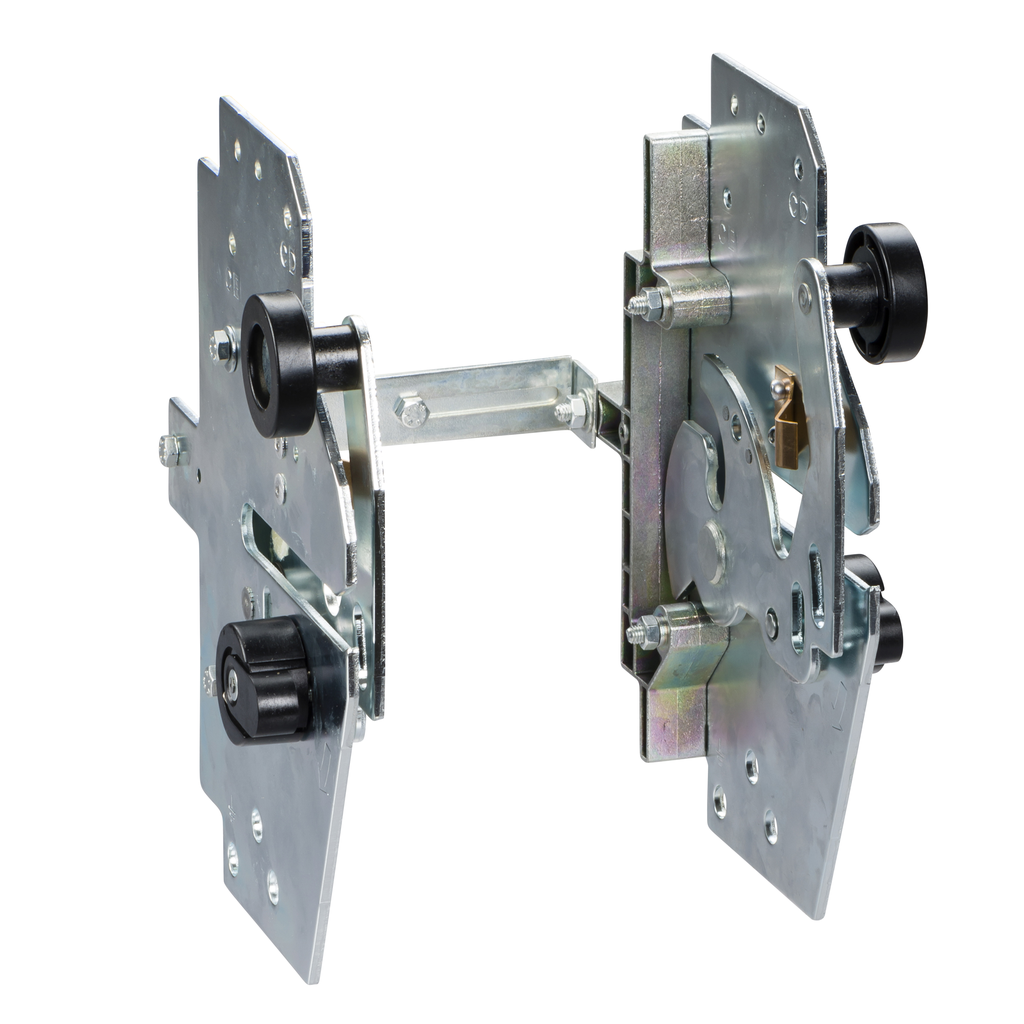

Circuit breaker accessory, PowerPacT H/J, cradle side plates, drawout cradle
Specifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Product Or Component Type | side plate |
| Warranty | 18 months |
| Rack Type | fixed |
| Tightening Torque | 7-7 N.m |
| Poles Description |
|
| Product Compatibility |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
Documents
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Cradle Installation for PowerPacT H- and J-Frame and Compact NSF Circuit Breakers - Installation - 48940-246-01 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
