S29274

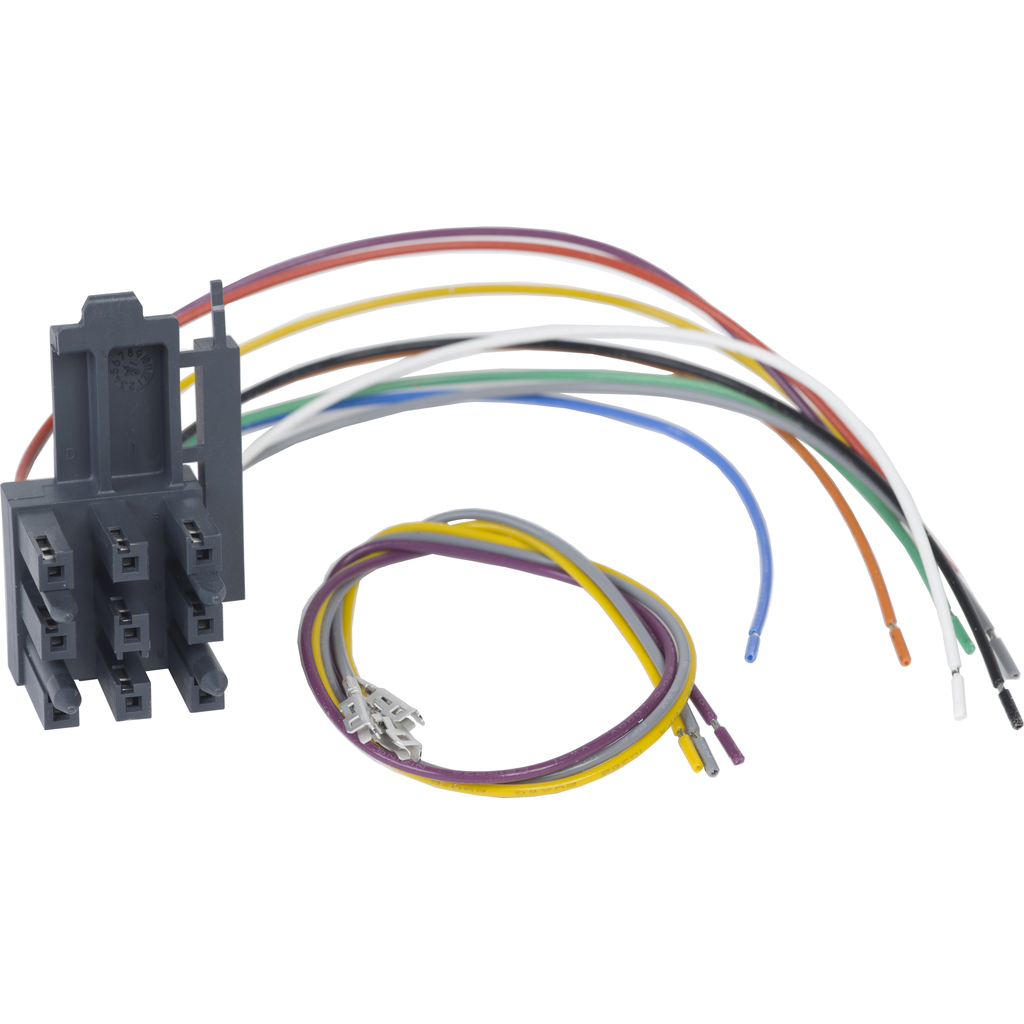

Circuit breaker accessory, PowerPacT H/J, moving part 9 wire connector, secondary disconnect block
Specifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Product Or Component Type | connector |
| Warranty | 18 months |
| Pin Number | 9 pins |
| Tightening Torque | 1.4-1.4 N.m |
| Product Compatibility | PowerPact H drawout circuit-breaker |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
Documents
- Spec Sheet
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- 9-Wire Base Moving Connector for PowerPacT H-, J-, and L-Frame Circuit Breakers with MicroLogic Trip Units - Installation Instructions - 48940-227-01 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
