Trip unit, PowerPact P, R, with rating plug, Micrologic 6.0, LSIG protection

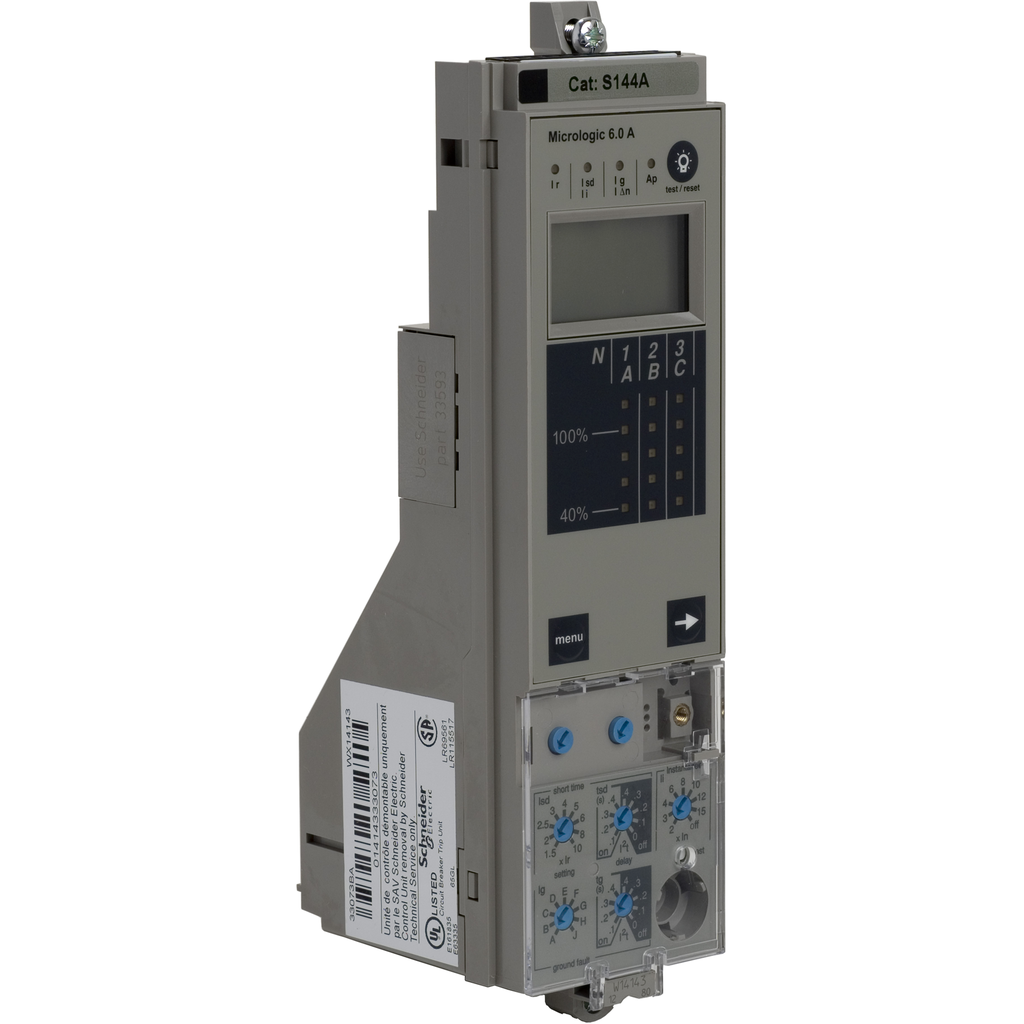

Square D PowerPact P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. PowerPact P- and R-frame molded case circuit breakers may be specified with any of the following MicroLogic Electronic Trip Units This MicroLogic Standard 6.0A Trip Unit with field-interchangeable long-time rating plug has LSIG configuration and ammeter aditional feature. Adjustable rating plugs are offered in eight different ranges of long-time pickup adjustments. Each adjustment times the sensor rating (lr x In) of the circuit breaker sets the long-time pickup value of the circuit breaker Trip unit provides true RMS sensing, LED long-time pickup indication and thermal imaging. Also it has available test kits.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Provided Equipment | rating plug |
|---|---|
| Circuit Breaker Type |
|
| Product Or Component Type | trip unit |
| Product Name | MicroLogic |
| Trip Unit Technology | electronic |
| Warranty | 18 months |
| Trip Unit Name | MicroLogic 6.0 A |
| Height | 7.85 in |
| Tightening Torque | 0.8-0.8 N.m |
| Trip Unit Protection Functions | LSIG |
| Type Of Measurement | ammeter |
| Width | 2.11 in |
| Depth | 2.88 in |
| Type Of Installation | field installable |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
