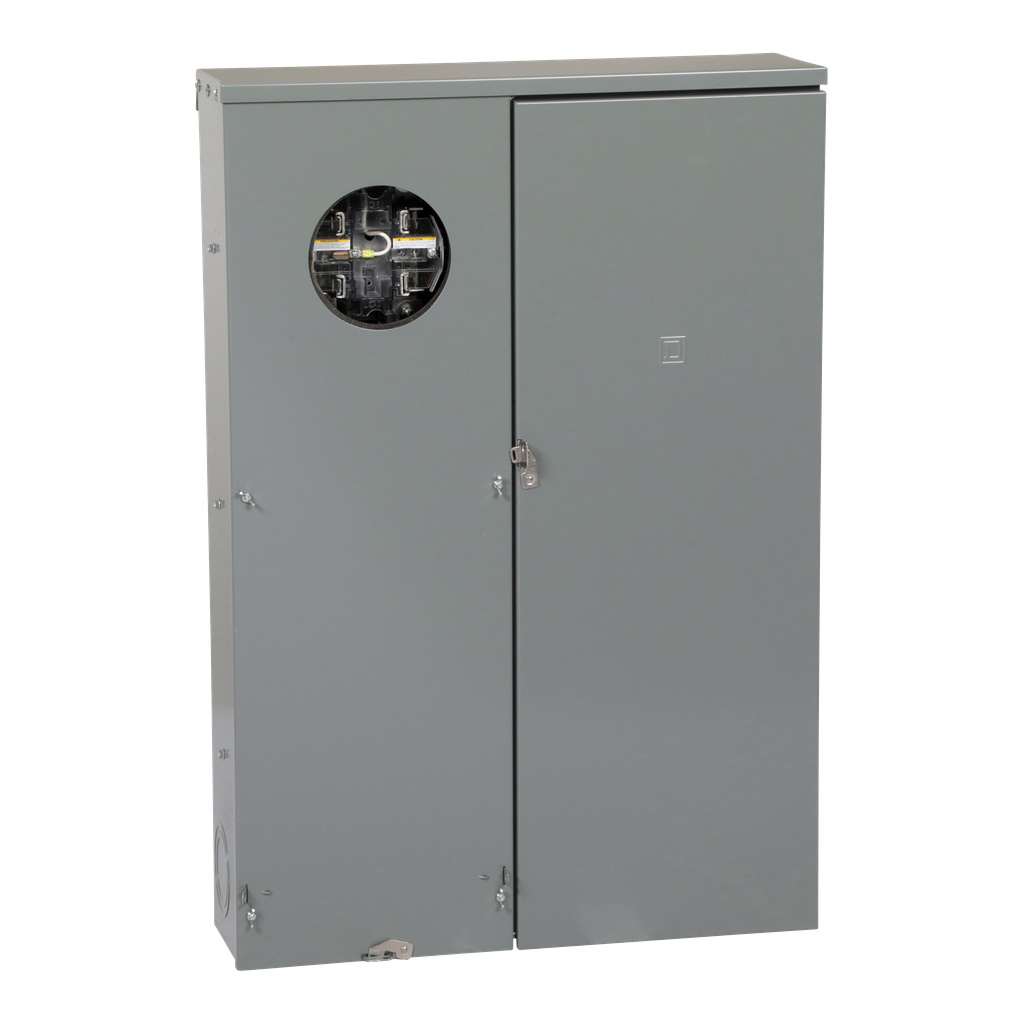

Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 30 spaces and 40 circuits. This surface mounted device has UL listed rated current rating as 400A and short-circuit current 25kA. Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Homeline |
---|---|
Hub Type | A-L |
Meter Socket Type | ringless |
Product Or Component Type | All-In-One |
Warranty | 18 months |
Height | 43.00 in |
Short-Circuit Current | 25 kA |
Number Of Tandem Circuit Breakers | 10 |
Branch Circuit Breaker Rated Current | 200 A |
Bypass Type | class 320 lever bypass |
Service Feed Location | UG |
Service Disconnect Rated Current | 200 A |
Line Rated Current | 400 A |
Width | 28.25 in |
Awg Gauge |
|
Electrical Connection |
|
Depth | 7.87 in |
Number Of Circuits | 40 |
Number Of Spaces | 30 |
Device Composition | service disconnect (factory installed) |
Device Mounting |
|
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407020EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
