RSB1A160F7

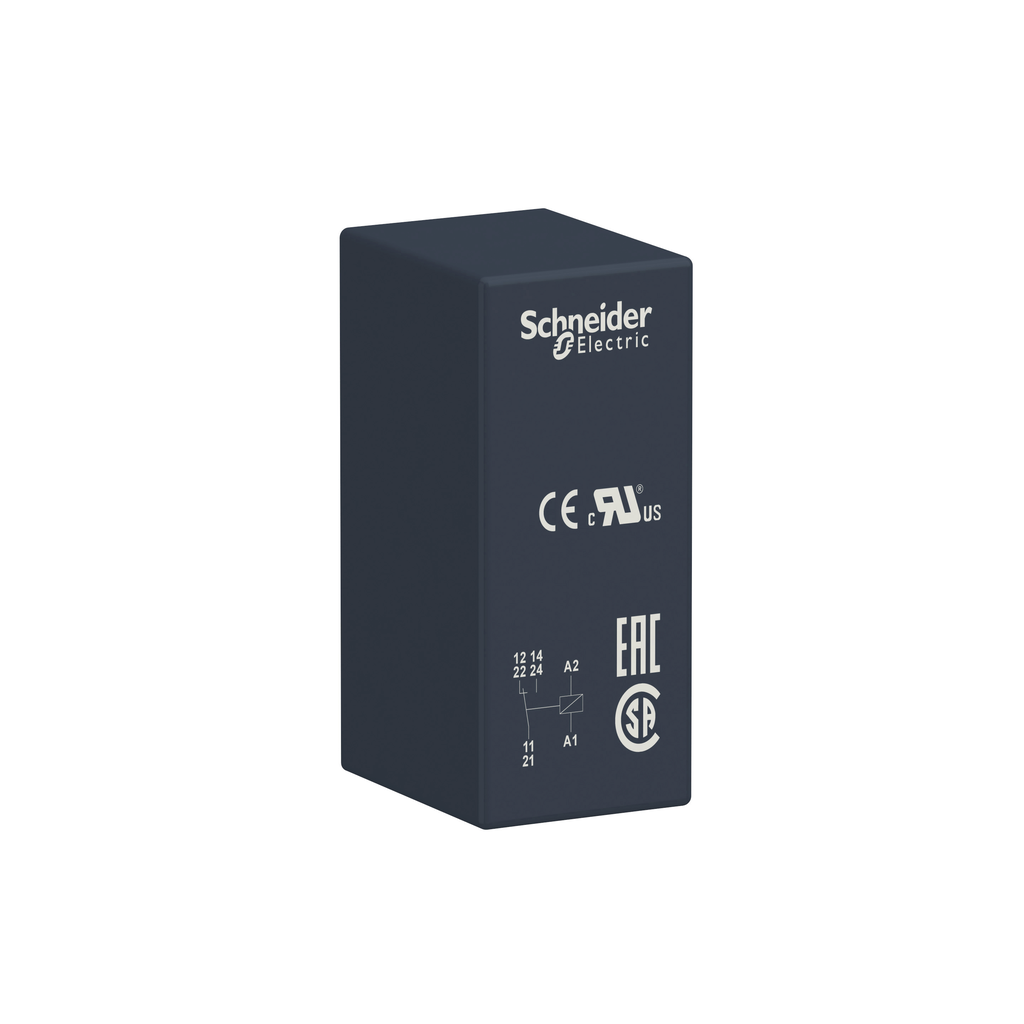

interface plug in relay, Harmony Electromechanical Relays, 16A, 1CO, 120V AC
This Harmony RSB interfacing plug-in relay has a control coil voltage of 120V AC and has 1 changeover contact single pole double throw with a rating of 16A." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "Plug in type allows easy installation and maintenance." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." 0 0 0 0 0 0 0 0 0 0 0 0
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
|---|---|
| Range Of Product | Harmony Electromechanical Relays |
| Product Or Component Type | plug-in relay |
| Status Led | without |
| Control Type | without push-button |
| Series Name | interface relay |
| Contacts Type And Composition | 1 C/O |
| Contact Operation | standard |
| Device Short Name | RSB |
| [Ithe] Conventional Enclosed Thermal Current | 16 A -40-40 °C |
| Warranty | 18 months |
| Maximum Switching Capacity | 4000 VA/448 W |
| Safety Reliability Data | B10d = 100000 |
| [Ue] Rated Operational Voltage | 96...180 V AC 50/60 Hz |
| Operating Rate |
|
| Protection Category | RT I |
| Test Levels | level A |
| Contacts Material | silver alloy (AgNi) |
| Shape Of Pin | flat (PCB type) |
| Net Weight | 0.014 kg |
| [Uimp] Rated Impulse Withstand Voltage | 3.6 kV IEC 61000-4-5 |
| Maximum Switching Voltage | 300 V DC IEC |
| Average Resistance | 8360 Ohm AC 20 °C +/- 10 % |
| Device Presentation | complete product |
| Switching Voltage | 12 V |
| Average Coil Consumption | 0.75 VA AC |
| [Ie] Rated Operational Current |
|
| Sale Per Indivisible Quantity | 10 |
| [Ui] Rated Insulation Voltage | 400 V EN/IEC 60947 |
| Minimum Switching Current | 10 mA |
| Electrical Durability |
|
| Mechanical Durability | 10000000 cycles |
| Operating Position | any position |
| Operating Time |
|
| Load Current |
|
| Drop-Out Voltage Threshold | >= 0.15 Uc AC |
| Minimum Switching Capacity | 120 mW 10 mA, 12 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406006EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards |
|
| Ambient Air Temperature For Operation | -40-70 °C AC) |
| Shock Resistance |
|
| Dielectric Strength |
|
| Vibration Resistance | +/- 1 mm 10-55 Hz)EN/IEC 60068-2-6 |
| Ip Degree Of Protection | IP40 conforming to EN/IEC 60529 |
| Ambient Air Temperature For Storage | -40-85 °C |
