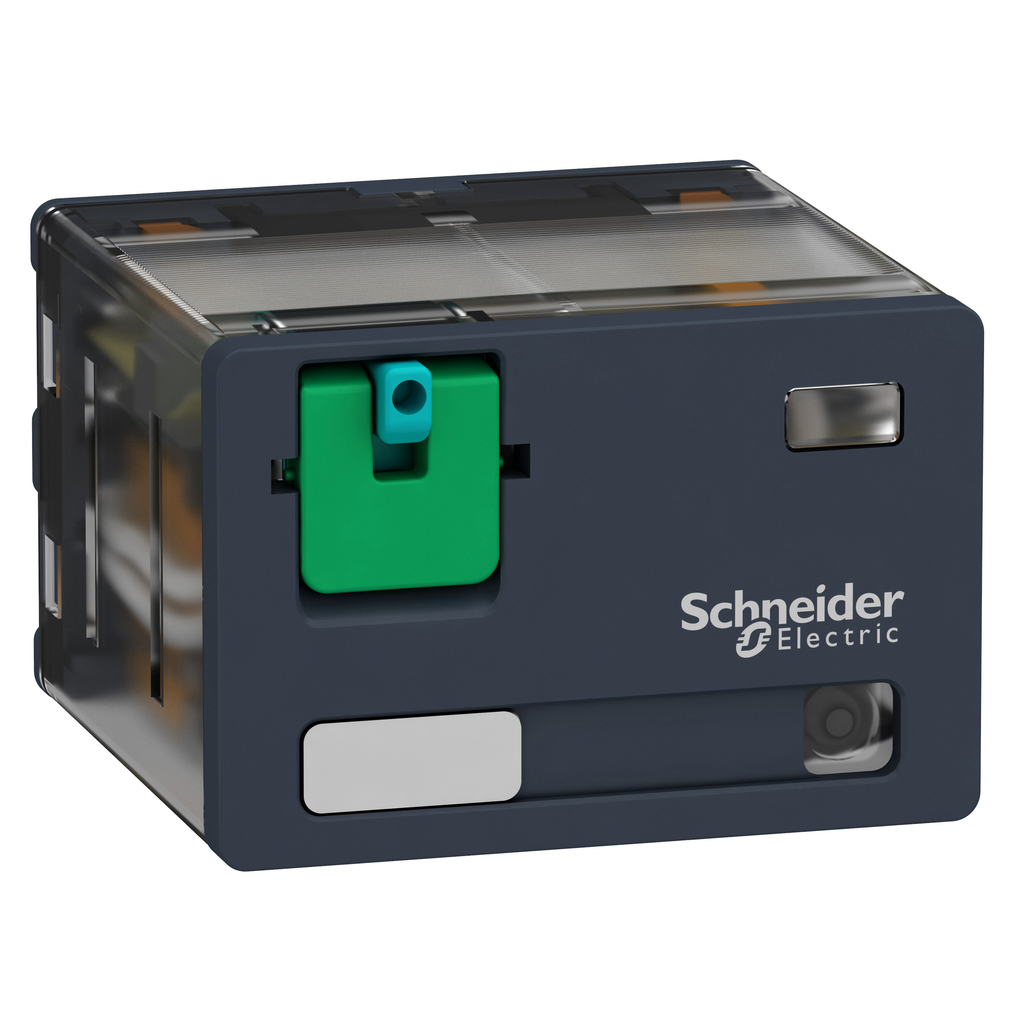

RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC

RPM42BD

plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC

This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Utilisation Coefficient	20 %
[Uc] Control Circuit Voltage	24 V DC
Range Of Product	Harmony Electromechanical Relays
Product Or Component Type	plug-in relay
Status Led	with
Control Type	lockable test button
Series Name	Power
Contacts Type And Composition	4 C/O
Device Short Name	RPM
[Ithe] Conventional Enclosed Thermal Current	15 A -40-55 °C
Warranty	18 months
Maximum Switching Capacity	3750 VA 420 W
Safety Reliability Data	B10d = 100000
Operating Rate	<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
Protection Category	RT I
Test Levels	level A
Electrical Durability	100000 cycles resistive
Contacts Material	AgNi
Shape Of Pin	flat
Reset Time	20 ms at nominal voltage
Net Weight	0.071 kg
Maximum Switching Voltage	250 V IEC
Average Resistance	303 Ohm at 20 °C +/- 10 %
Device Presentation	complete product
Average Coil Consumption	1.6 W
Rated Operational Voltage Limits	19.2...26.4 V DC
Pollution Degree	3
[Ie] Rated Operational Current	15 A 277 V AC) UL 15 A 28 V DC) UL 15 A 250 V AC) NO IEC 15 A 28 V DC) NO IEC 7.5 A 250 V AC) NC IEC 7.5 A 28 V DC) NC IEC
[Ui] Rated Insulation Voltage	250 V IEC 300 V CSA 300 V UL
Mechanical Durability	10000000 cycles
Operating Position	any position
Operating Time	20 ms at nominal voltage
Load Current	15 A 250 V AC 15 A 28 V DC
Drop-Out Voltage Threshold	>= 0.1 Uc DC
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Minimum Switching Capacity	170 mW 10 mA, 17 V
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1406038EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	EAC CSA UL
Standards	EN/IEC 61810-1 CSA C22.2 No 14 UL 508
Ambient Air Temperature For Operation	-40-55 °C
Dielectric Strength	1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Shock Resistance	15 gnin operation 30 gnnot operating
Ip Degree Of Protection	IP40 conforming to EN/IEC 60529
Ambient Air Temperature For Storage	-40-85 °C
