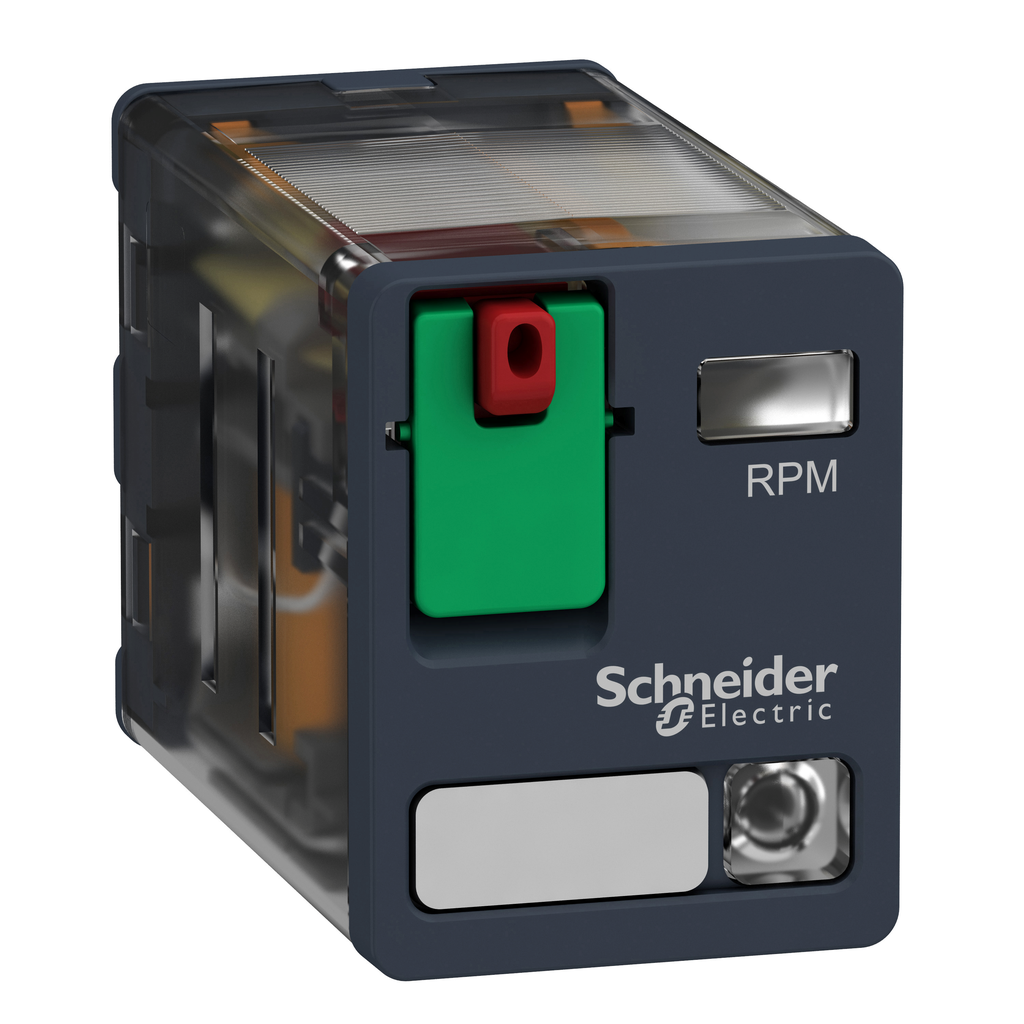

Zelio Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Zelio plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Zelio plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Zelio plug in relays are UL Listed. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0
Brand: Schneider Electric
Add to Quote CatalogueUtilisation Coefficient | 20 % |
---|---|
[Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
Range Of Product | Harmony Electromechanical Relays |
Product Or Component Type | plug-in relay |
Status Led | with |
Control Type | lockable test button |
Series Name | Power |
Contacts Type And Composition | 2 C/O |
Device Short Name | RPM |
[Ithe] Conventional Enclosed Thermal Current | 15 A -40-55 °C |
Warranty | 18 months |
Maximum Switching Capacity |
|
Safety Reliability Data | B10d = 100000 |
Operating Rate |
|
Protection Category | RT I |
Test Levels | level A |
Electrical Durability | 100000 cycles resistive |
Contacts Material | AgNi |
Average Coil Consumption In Va | 1.1 60 Hz |
Shape Of Pin | flat |
Reset Time | 20 ms at nominal voltage |
Net Weight | 0.036 kg |
Maximum Switching Voltage | 250 V IEC |
Average Resistance | 4430 Ohm at 20 °C +/- 15 % |
Device Presentation | complete product |
Rated Operational Voltage Limits | 96...132 V AC |
Pollution Degree | 3 |
[Ie] Rated Operational Current |
|
[Ui] Rated Insulation Voltage |
|
Mechanical Durability | 10000000 cycles |
Operating Position | any position |
Operating Time | 20 ms at nominal voltage |
Load Current |
|
Drop-Out Voltage Threshold | >= 0.15 Uc AC |
[Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50 µs |
Minimum Switching Capacity | 170 mW 10 mA, 17 V |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1406038EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Standards |
|
Ambient Air Temperature For Operation | -40-55 °C |
Dielectric Strength |
|
Vibration Resistance |
|
Shock Resistance |
|
Ip Degree Of Protection | IP40 conforming to EN/IEC 60529 |
Ambient Air Temperature For Storage | -40-85 °C |
