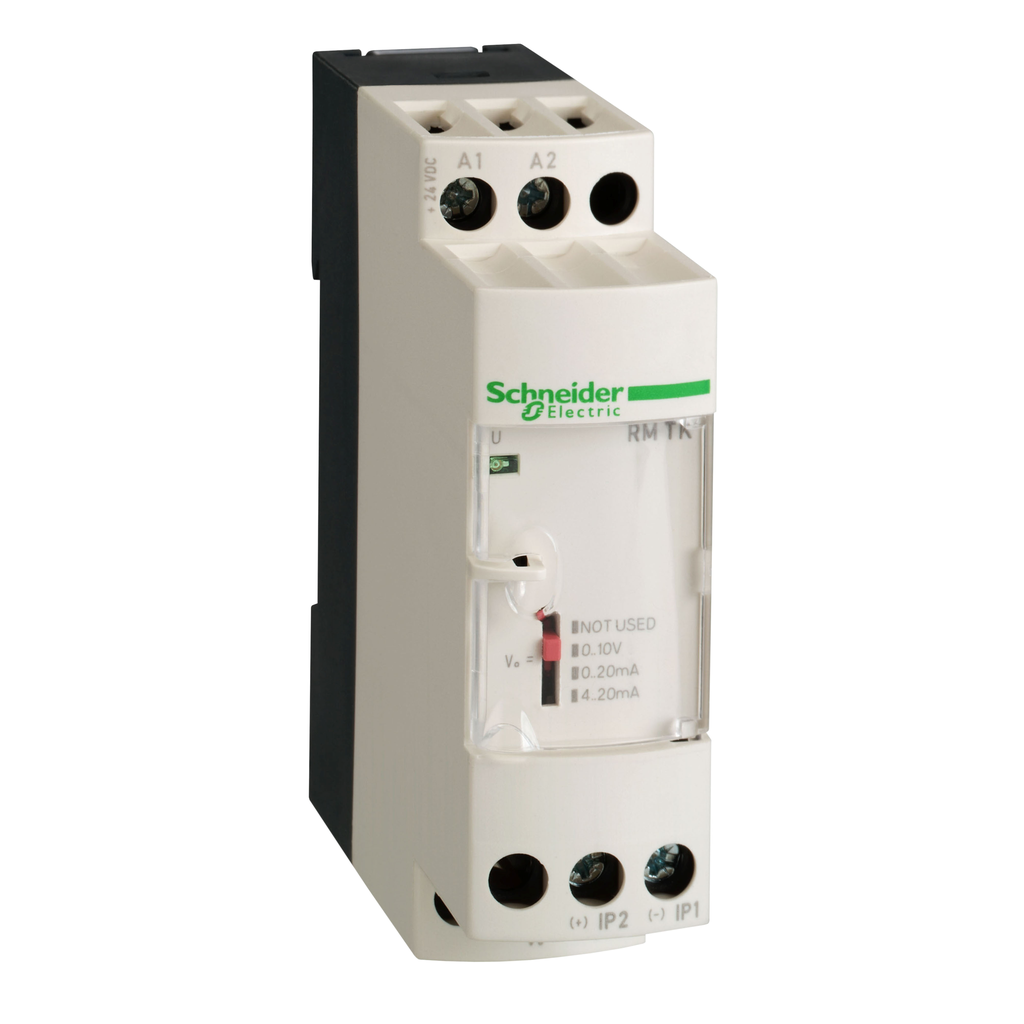

RMTK90BD - Converter for thermocouples, Harmony Analog, temperature transmitter, 0...1200 degree COr 32...2192 degree F

RMTK90BD

Converter for thermocouples, Harmony Analog, temperature transmitter, 0...1200 degree COr 32...2192 degree F

Add to Quote Catalogue

Specifications

Range Of Product	Harmony Analog
Analogue Output Type	current 0...20 mA <= 500 Ohm current 4...20 mA <= 500 Ohm voltage 0...10 V >= 100 kOhm
Product Or Component Type	converter for thermocouples
Analogue Input Type	thermocouple 0...1200 °C/32...2192 °F thermocouple K IEC 60584
Warranty	18 months
Current Consumption	<= 40 mA voltage <= 40 mA voltage output <= 60 mA current
Safety Reliability Data	MTTFd = 49.2 years B10d = 45447
Measurement Error	+/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) +/- 1 % of full scale 20 °C
Surge Withstand	0.5 kV 1.2/50 µs IEC 61000-4-5
Clamping Connection Capacity	2 x 1.5 mm² 1 x 2.5 mm²
Cold Junction Compensation	built-in between 0 and 60 °C
Local Signalling	for power ON LED (green)
Temperature Coefficient	200 ppm/°C
Protection Type	overvoltage protection on output (+/- 30 V) reverse polarity protection on output short-circuit protection on output
[Ui] Rated Insulation Voltage	2 kV
Marking	CE
Analogue Output Voltage	-15...-11 V no input or input wire broken 11...15 V no input or input wire broken
Net Weight	0.12 kg
Fixing Mode	by screws mounting plate) clip-on 35 mm symmetrical DIN rail)
Tightening Torque	0.6-1.1 N.m
Analogue Output Current	-30-0 mA no input or input wire broken
Repeat Accuracy	+/- 0.25 % full scale 20 °C +/- 0.8 % full scale 60 °C
[Us] Rated Supply Voltage	24 V DC +/- 20 %, non isolated
China Rohs Regulation	X
Circularity Profile	ENVEOLI1607005EN
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1607005EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Disturbance Radiated/Conducted	CISPR 11 CISPR 22 group 1 - class B
Product Certifications	GL UL CSA
Pollution Degree	2 IEC 60664-1
Ambient Air Temperature For Storage	-40-85 °C
Standards	IEC 60584-1 IEC 60947-1
Ambient Air Temperature For Operation	0-50 °C mounting side by side 0-60 °C 2 cm spacing
Resistance To Electrostatic Discharge	6 kV in contact)IEC 61000-4-2 level 3 8 kV in air)IEC 61000-4-2 level 3
Fire Resistance	850 °C IEC 60695-2-1 850 °C UL
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Vibration Resistance	5 gn 10-100 Hz)IEC 60068-2-6
Resistance To Fast Transients	1 kV IEC 61000-4-4 on input-output) 2 kV IEC 61000-4-4 on power supply)
Ip Degree Of Protection	IP20 terminal block) IP50 housing)

Documents

Spec Sheet
Digest Catalog 23: Relays and Timers (OCT 2020) - 0100CT1901_SEC-23_OCT2020 (pdf)
Zelio Analog Interface Modules Catalog - 8501CT0502 (pdf)
Harmony Analog - Converters for thermocouple - Converters for Pt100 probe - Voltage current converters - Harmony+Analog+-+Converters+for+thermocouple+-+Converters+for+Pt100+probe+-+Voltage+current+converters+-+catalog+English+August+2021 (pdf)
RM... Harmony Analog Interfaces, Instruction Sheet (EN) - 166165901A55_07 (pdf)
RM4... Measurement and control relays - 1661659_01A55 (pdf)
